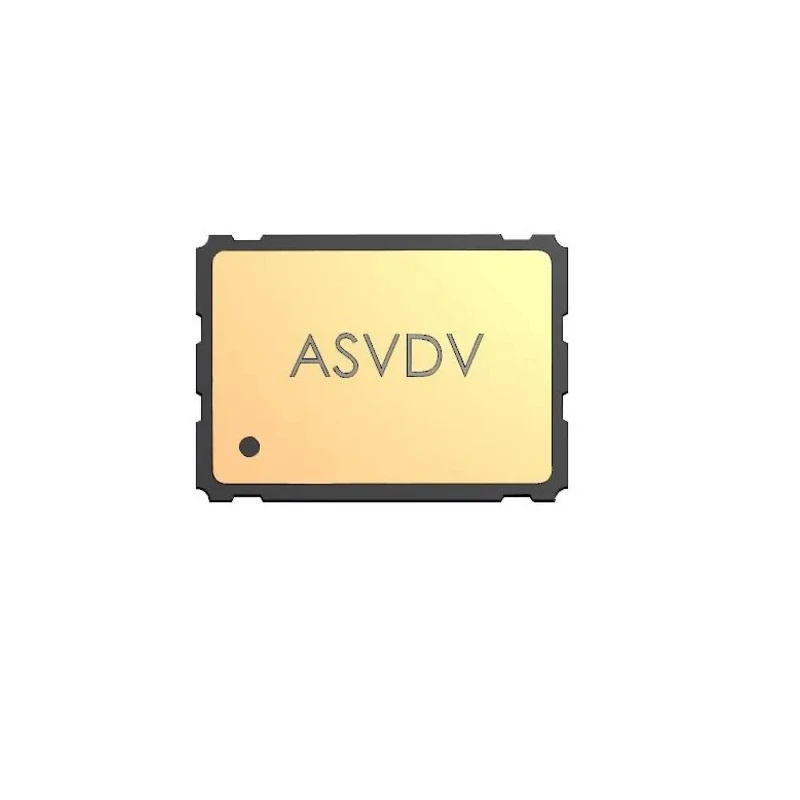

Abracon 24MHz Crystal Oscillator ±50 ppm CMOS HCMOS LVCMOS 4-Pin Surface Mount ASVDV-24.000MHz-LC-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.4mm |
| Length | 7mm |
| Model | ASVDV-24.000MHz-LC-T |
| Packaging | Bulk |
| Width | 5mm |
| Mount Type | Surface |
| Series | ASVDV |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 24MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | ISO9001-2015, RoHS/RoHS II |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.63V |
| Minimum Supply Voltage | 1.6V |
| Load Capacitance | 15pF |
| Oscillator Type | Crystal Oscillator |
| Output Level | CMOS, HCMOS, LVCMOS |
Key Features
- Operates with supply voltage range from 1.6 V to 3.63 V for flexibility.
- Features a 4-pin surface mount package with compact dimensions of 7mm length, 5mm width, and 1.4mm height.
- Supports a load capacitance of 15pF for stable oscillation.
- Designed for operating temperature range from -40°C to 85°C ensuring reliability in harsh environments.
- Hermetically seam-sealed ceramic package provides durability and long service life.
- Output enable/start and disable/stop functions enable efficient power management.
- RoHS and ISO9001-2015 compliant ensuring quality and environmental standards.
- Ideal for portable, wearable electronics, consumer devices, and industrial control applications.
Product Description
Abracon ASVDV-24.000MHz-LC-T is a precision crystal oscillator operating at 24MHz frequency with a frequency stability of ±50 ppm. It features a CMOS/HCMOS/LVCMOS compatible output waveform, optimized for low current consumption across a supply voltage range of 1.6 V to 3.63 V. The device is offered in a compact 4-pin surface mount ceramic package measuring 7mm in length, 5mm in width, and 1.4mm in height.
The oscillator supports a load capacitance of 15pF and operates reliably within a temperature range from -40°C to 85°C. The hermetically seam-sealed ceramic package ensures protection against environmental stress, making it suitable for demanding industrial and commercial applications.
Key features include output enable/start and disable/stop functions that allow for effective power management in portable and battery-powered devices. This product complies with ISO9001-2015 and RoHS standards, guaranteeing high quality and environmental sustainability.
This crystal oscillator is widely used in wearable and portable electronics, consumer products, industrial control systems, and various other electronic equipment requiring stable frequency generation.
Operates from 1.6 V to 3.63 V supply voltage ensuring wide application compatibility. Compact 4-pin surface mount package for efficient PCB space usage. Reliable operation in temperature environments from -40°C to 85°C. Hermetically sealed ceramic package for enhanced durability.
Output waveform compatible with CMOS, HCMOS, and LVCMOS logic standards. Low current consumption ideal for portable electronics. Compliant with RoHS and ISO9001-2015 standards. Load capacitance of 15pF for optimal oscillation stability.
Explore Abracon Crystal Oscillators and related electronic components for industrial, commercial, and consumer electronics on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 24MHz.
This unit has dimensions of 7mm in length, 5mm in width, and 1.4mm in height.
It operates within a supply voltage range from 1.6 V to 3.63 V.
The oscillator supports a load capacitance of 15pF for stable oscillation.
It is designed to operate reliably within a temperature range from -40°C to 85°C.
The output waveform is compatible with CMOS, HCMOS, and LVCMOS logic standards.
This model is packaged in a bulk format, suitable for surface mount applications.
It features a 4-pin configuration.
The oscillator complies with ISO9001-2015 and RoHS standards, ensuring quality and environmental sustainability.
It is widely used in portable, wearable electronics, consumer devices, and industrial control systems.
The hermetically seam-sealed ceramic package provides protection against environmental stress, enhancing durability.
Yes, it includes output enable/start and disable/stop functions for efficient power management.
