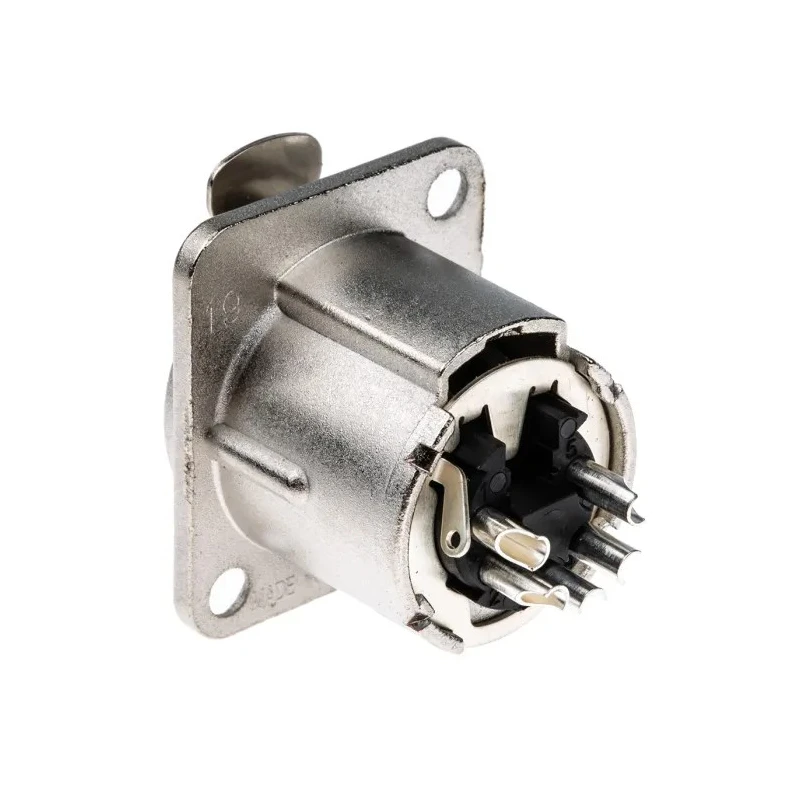

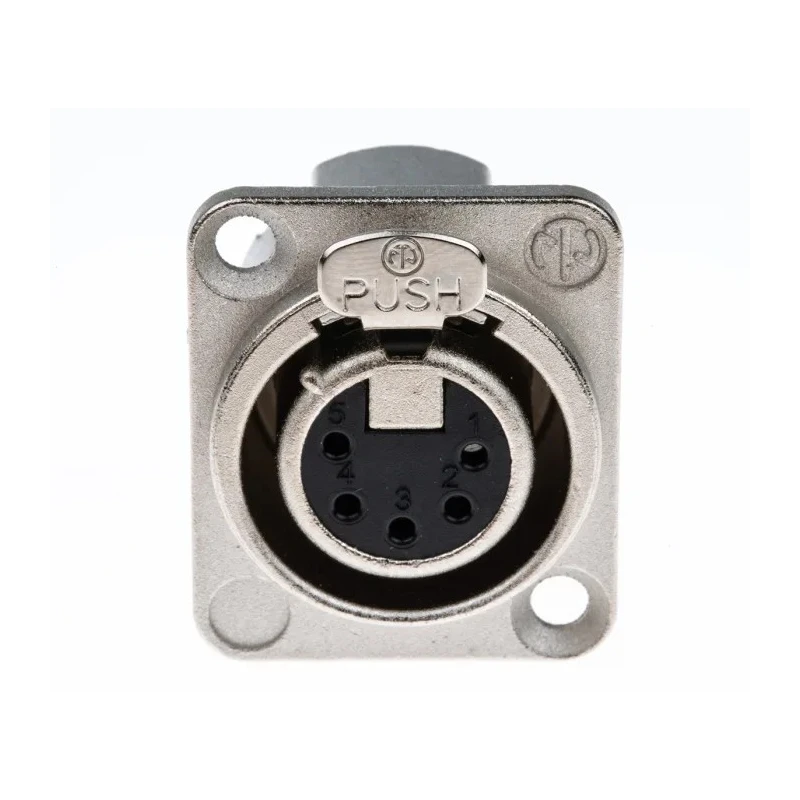

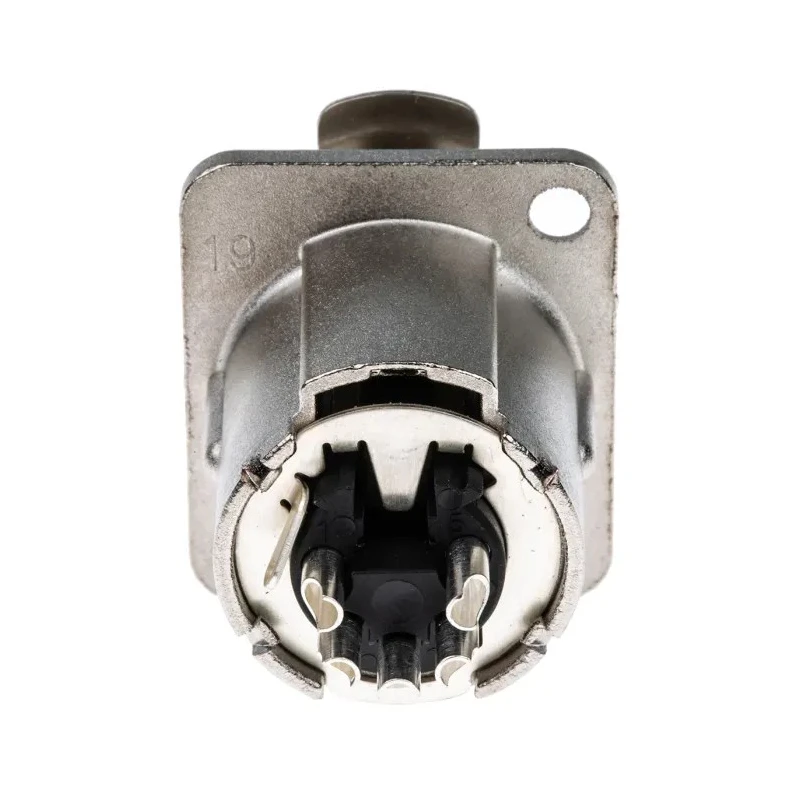

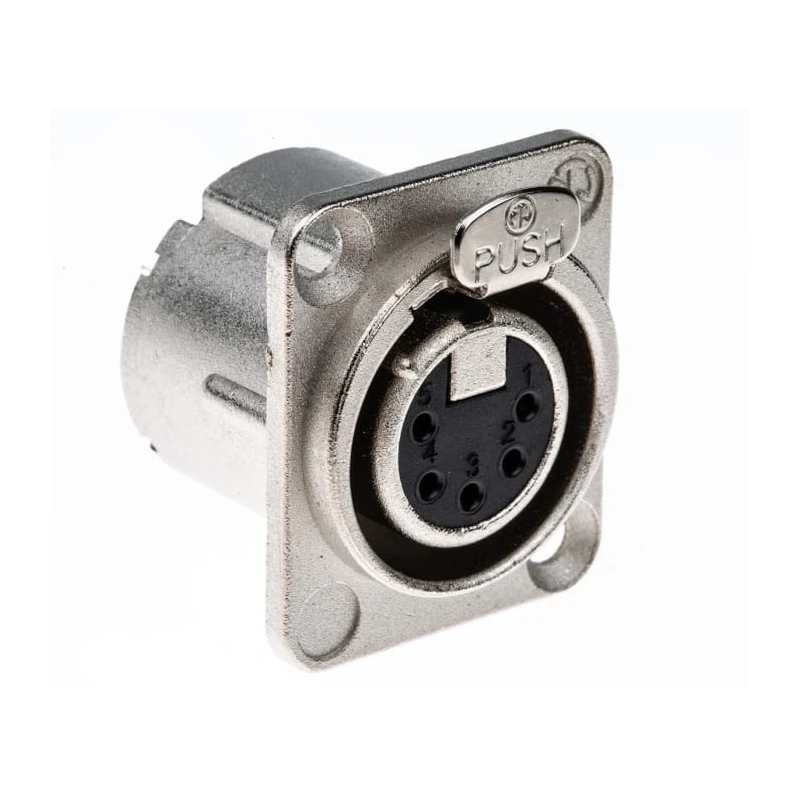

RS PRO Panel XLR Connector, Straight Orientation, 50V Voltage, 7.5A Current, 5 Contacts, Silver over Nickel Plating NC5FD-LX

Neutrik NC5FD-LX is a premium panel-mount XLR connector featuring a straight orientation with 5 female contacts. It supports a voltage rating of 50V and a maximum current of 7.5A, making it suitable for a variety of industrial and professional electronic applications. The connector's silver over nickel plating over brass contacts ensures excellent conductivity and durability. Its nylon housing provides robust mechanical protection.

Designed with a solder cup receptacle termination type, this connector allows for secure and reliable cable attachment. A notable feature is the duplex ground contact which significantly improves ground connection integrity and offers superior RF shielding, reducing signal interference in critical environments.

The operating temperature range spans from -30°C to 80°C, enabling usage in diverse environmental conditions. The connector also includes a solder barrier that prevents solder from flowing into the mating area, preserving signal contact quality and connector lifespan. The unique cage type female contact enhances conductivity and lowers wear on mating male contacts, improving long-term reliability.

This Neutrik panel XLR Connector is excellently suited for industrial, audio, laboratory, broadcast, and manufacturing environments where high-performance, reliable interconnections are essential.

Features a straight orientation with panel mount compatibility. Silver over nickel plating for improved corrosion resistance and electrical performance. Nylon housing for durability and insulation. Solder cup termination facilitates easy soldering and secure connections.

Duplex ground contact design for enhanced RF shielding. Contact material is high-quality brass ensuring conductivity and mechanical endurance. Operating temperature range of -30°C to 80°C for flexible use environments. Designed within the NC5FD series maintaining industry-standard form and function.

The set does not include cables or mating connectors and is intended as a panel mount receptacle. The product is manufactured in Liechtenstein under the Neutrik brand, known globally for excellence in electronic connectors.
