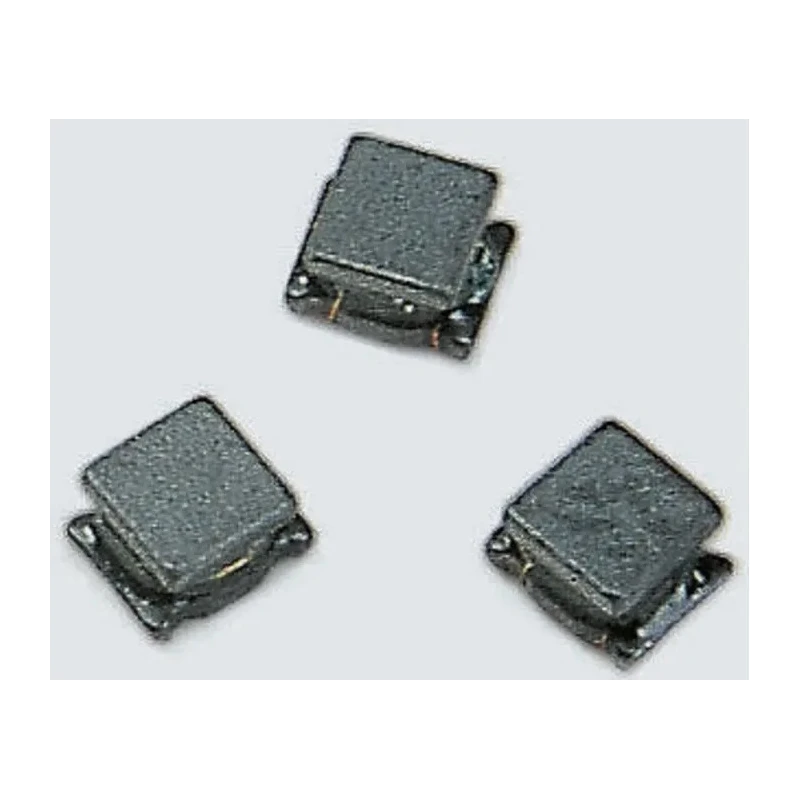

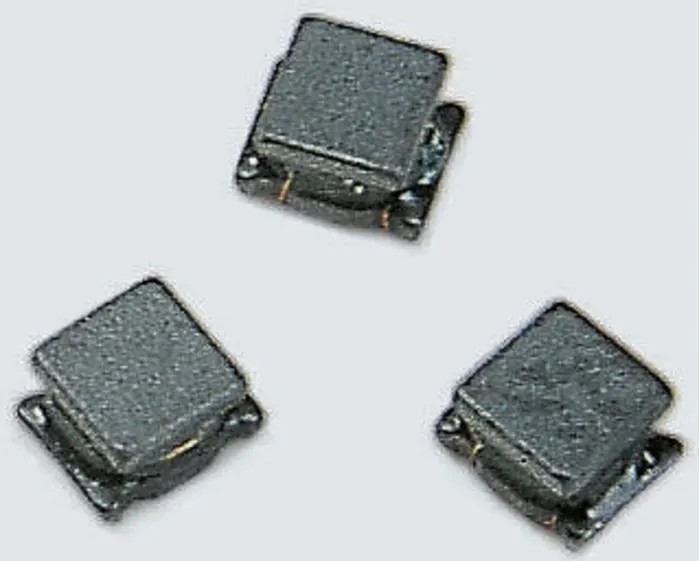

Murata Wirewound Surface Mount Inductor 1.8 mH ±5 % 35 mA Idc Ferrite Core 1812 Package LQH43NN182J03L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2.6mm |
| Length | 4.5mm |
| Model | LQH43NN182J03L |
| Depth | 3.2mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1.8mH |
| Standards/Approvals | RoHS |
| Package/Case | 1812 |
| Maximum DC Current | 35mA |
| Maximum DC Resistance | 45Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 1.5MHz |
| Minimum Quality Factor | 40 |
| Inductor Construction | Wirewound |
Key Features
- Wirewound construction ensures high quality and reliability.
- Features a ferrite core for improved magnetic properties.
- Package size 1812 suitable for surface mounting on PCBs.
- Inductance tolerance of ±5% for precision applications.
- Maximum DC resistance of 45 Ω reduces power loss.
- Minimum operating temperature of -40°C and maximum operating temperature of 85°C.
- Maximum self-resonant frequency of 1.5 MHz for high frequency performance.
- Minimum quality factor (Q) of 40 for superior inductive efficiency.
Product Description
Murata LQH43NN182J03L wirewound surface mount inductor with a ferrite core delivers a reliable inductance of 1.8 mH with a tolerance of ±5%. This inductor supports a maximum DC current of 35 mA, making it suitable for precision electronic circuit applications requiring stable inductance and current handling.

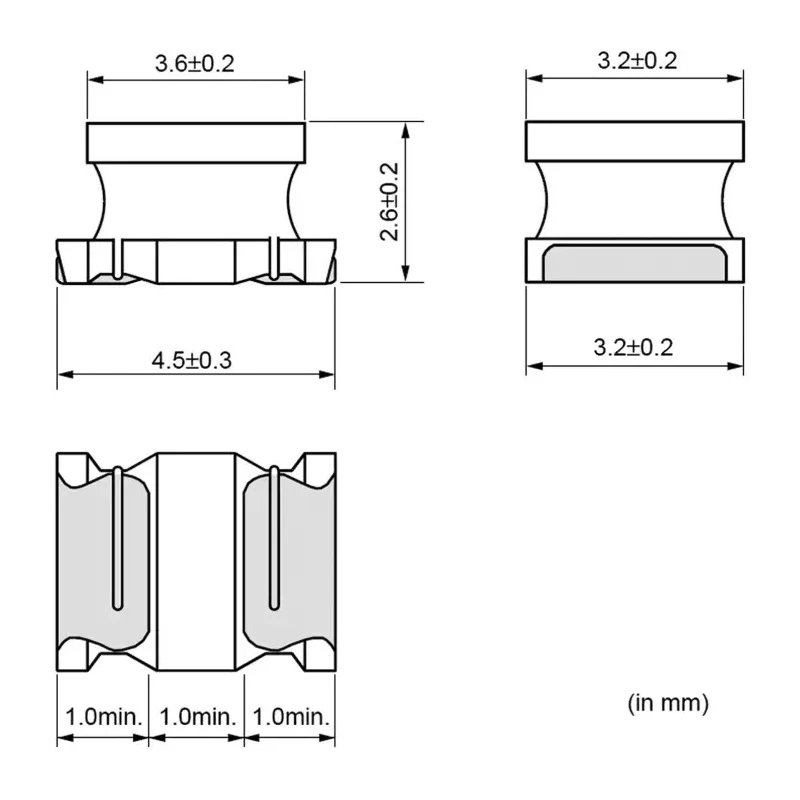

The compact 1812 package size with dimensions 4.5 mm length, 3.2 mm depth, and 2.6 mm height supports surface mounting on modern PCBs. The ferrite core and wirewound construction offer low DC resistance of 45 Ω and high quality factor (Q) of 40, optimizing performance at frequencies up to 1.5 MHz.
Designed to operate reliably between -40°C and 85°C, this component is compliant with RoHS standards, ensuring it meets environmental regulations. Its surface mount termination style facilitates automated assembly processes in manufacturing.
Typical industrial applications for this inductor include power supply circuits, signal filtering, and electromagnetic interference suppression in consumer electronics, industrial equipment, and telecommunications devices.
Wirewound construction for stable inductance values. Ferrite core for enhanced magnetic efficiency. Compact 1812 surface mount package. ±5% inductance tolerance. Low DC resistance of 45 Ω. Operating temperature range from -40°C to 85°C.
Maximum self-resonant frequency of 1.5 MHz. High-quality factor of 40 ensures efficiency. RoHS compliant for environmental safety. Suitable for use in power circuits and EMI filtering. Explore the wide range of Surface Mount Inductors and electronic components available in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 1.8 mH with an inductance tolerance of ±5%.
The maximum DC current rating for this inductor is 35 mA.
The dimensions of the 1812 package are 4.5 mm in length, 3.2 mm in depth, and 2.6 mm in height.
The maximum operating temperature for this inductor is 85°C.
The minimum operating temperature for this model is -40°C.
This inductor features a ferrite core, which enhances its magnetic properties.
The maximum self-resonant frequency is 1.5 MHz, allowing for high frequency performance.
The maximum DC resistance for this unit is 45 Ω, which helps reduce power loss.
This inductor has a minimum quality factor (Q) of 40, optimizing its inductive efficiency.
The termination style of this model is surface mount, facilitating automated assembly processes.
Yes, this inductor is RoHS compliant, ensuring it meets environmental regulations.
Typical applications include power supply circuits, signal filtering, and electromagnetic interference suppression in various electronic devices.
