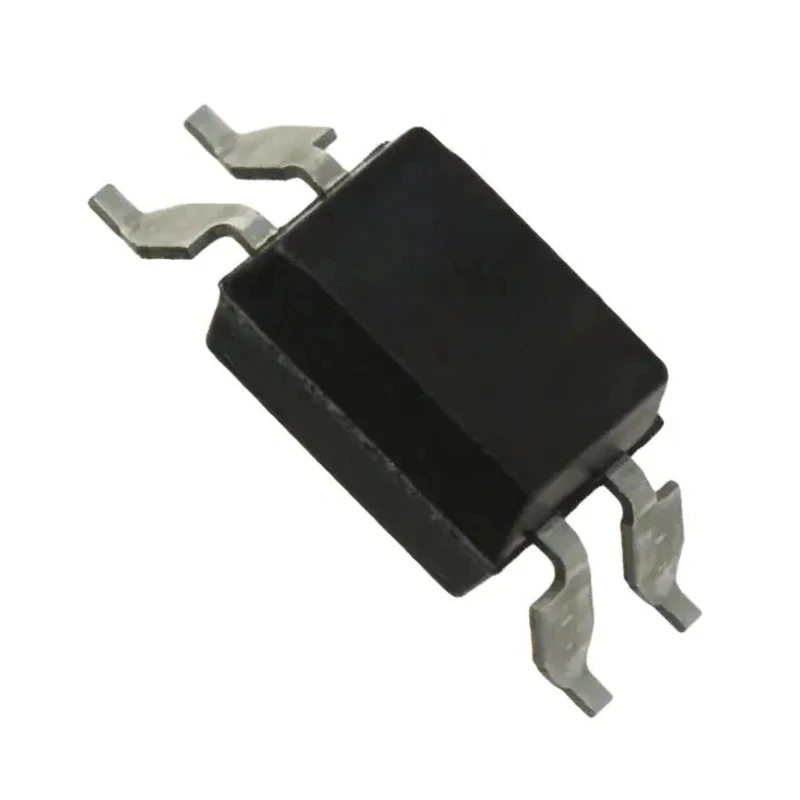

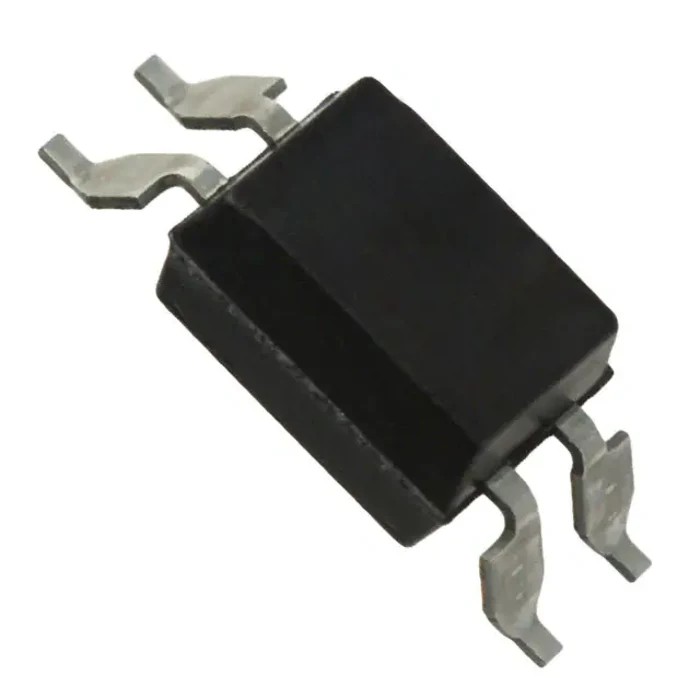

Renesas Electronics PS2561DL2-1Y-A DC Input Photocoupler Surface Mount 4-Pin Gull Wing PS2561DL2-1Y-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Model | PS2561DL2-1Y-A |
| Packaging | Magazine |
| Mount Type | Surface |
| Series | PS |
| Maximum Operating Temperature | 110°C |
| Package Type | Gull Wing |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 400mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL, EN, CSA |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 3μs |
| Maximum Current Transfer Ratio | 400% |
| Typical Fall Time | 5μs |
| Minimum Current Transfer Ratio | 50% |
Key Features
- Contains a GaAs light emitting diode and an NPN silicon phototransistor.
- Features a high isolation voltage of 5000 Vrms.
- Supports operating ambient temperatures up to 110°C.
- High current transfer ratio up to 400% for efficient signal transmission.
- Typical rise and fall times are 3 μs and 5 μs respectively.
- Maximum forward voltage of 1.4 V and maximum input current of 400 mA.
- Package type is gull wing suitable for surface mount PCB assembly.
- Complies with UL, EN, and CSA standards.
Product Description
Renesas Electronics PS2561DL2-1Y-A is a high-performance DC input photocoupler featuring a surface mount 4-pin gull wing package. It integrates a gallium arsenide (GaAs) light emitting diode optically coupled to an NPN silicon phototransistor, offering excellent electrical isolation and reliable signal transfer for industrial, electronic, and automation applications.
This device supports an isolation voltage of 5000 Vrms, making it ideal for protecting low-voltage circuits from high voltage spikes and noise interference in industrial control systems and power management equipment.
The photocoupler features a maximum input forward voltage of 1.4 V and can operate with up to 400 mA input current. Its high current transfer ratio of 400% enables efficient switching and signal amplification, while typical rise and fall times of 3 μs and 5 μs respectively ensure fast switching speed suitable for high-frequency applications.
Operating within temperature ranges from -55°C to 110°C, the PS2561DL2-1Y-A is designed for durability in challenging environments such as industrial automation, power supplies, and instrumentation.
The gull wing 4-pin package offers easy and reliable surface mounting on PCBs, supporting automated assembly and reducing production time. GaAs LED paired with NPN silicon phototransistor. High isolation voltage of 5000 Vrms for safety.
Fast switching speeds with rise time of 3 μs and fall time of 5 μs. Wide operating temperature range from -55°C to 110°C for industrial use. High current transfer ratio up to 400% enhances performance. Compliance with UL, EN, and CSA standards ensures quality and safety.
Surface mount gull wing 4-pin package facilitates compact design. Single input channel suitable for precise signal isolation. DC input current type enhances compatibility with DC circuits. Ideal for industrial, electronics manufacturing, and automation sectors.
Choose the Renesas Electronics PS2561DL2-1Y-A photocoupler for robust, high-isolation, and fast-switching optoelectronic coupling in your electronic and industrial applications. Explore EnvMart for a wide selection of Optocouplers and related electronic components for reliable system design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 110°C.
It features a high isolation voltage of 5000 Vrms, suitable for protecting low-voltage circuits from high voltage spikes.
The PS2561DL2-1Y-A has a maximum current transfer ratio of 400%, enhancing its performance in signal amplification.
The typical rise time is 3 μs and the fall time is 5 μs, allowing for fast switching speeds.
This model uses a gull wing 4-pin package, which is suitable for surface mount PCB assembly.
The maximum input current for the PS2561DL2-1Y-A is 400 mA.
It can operate within a temperature range from -55°C to 110°C, making it suitable for various industrial applications.
This photocoupler complies with UL, EN, and CSA standards, ensuring quality and safety.
This model features a single input channel, suitable for precise signal isolation.
The maximum forward voltage for the PS2561DL2-1Y-A is 1.4 V.
It supports DC input current, enhancing compatibility with DC circuits.
The country of origin for this model is India.
