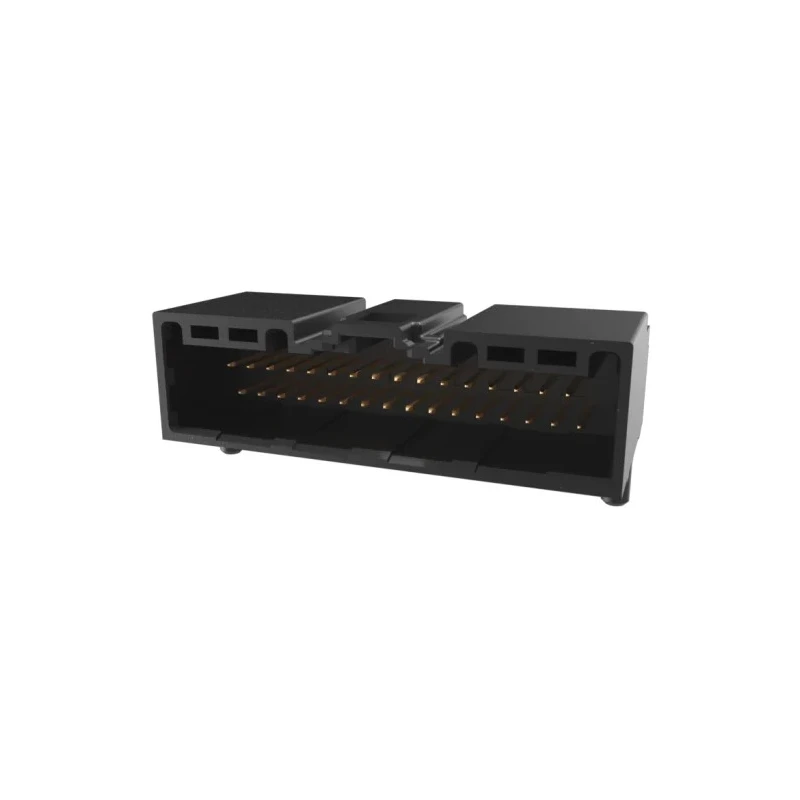

Amphenol Communications Solutions WireLock Series Right Angle Through Hole PCB Header 32 Contacts 1.8 mm 10153118-132KALF

Amphenol Communications Solutions 10153118-132KALF WireLock Series Right Angle Through Hole PCB Header is designed for demanding industrial and automotive electronic applications where compact and reliable board-to-wire connections are needed. This connector offers a double row layout with 32 male contacts spaced at a 1.8 mm pitch, enabling high-density PCB assembly.

The housing is made of durable polyamide material which provides excellent mechanical strength and chemical resistance. Contacts are fabricated from copper alloy with tin plating to ensure excellent electrical conductivity and corrosion resistance.

Engineered for right angle mounting on printed circuit boards using through-hole soldering methods, this component guarantees mechanical stability and robust electrical connectivity. The WireLock design includes terminal and connector position assurance features which improve assembly accuracy and connector retention.

Rated for 3 amperes current and 48 volts, the connector supports standard power and signal transmission needs and operates reliably under a wide temperature range from -40 degrees Celsius up to 125 degrees Celsius, making it suitable for automotive and other harsh environment installations.

This PCB header features a double row design with 32 male contacts for compact, high-density connections. The shrouded, right-angle orientation ensures secure mounting and optimal connection stability. Constructed with a polyamide housing and copper alloy contacts plated with tin for enhanced conductivity and durability.

Rated for 3A current and 48V voltage, meeting typical requirements in automotive and electronic applications. Designed for through-hole mounting with solder termination providing strong mechanical and electrical bonds. Operates reliably in temperature ranges from -40°C to 125°C, suitable for harsh environments.

Includes terminal and connector position assurance features to prevent misalignment and enhance reliability. Manufactured in China adhering to quality standards without specific certifications.

This connector is ideal for use in industrial electronics, automotive wiring systems, communication devices, and other applications requiring reliable, compact board-to-wire interface solutions. It supports efficient assembly processes and long-lasting performance in critical service environments.
