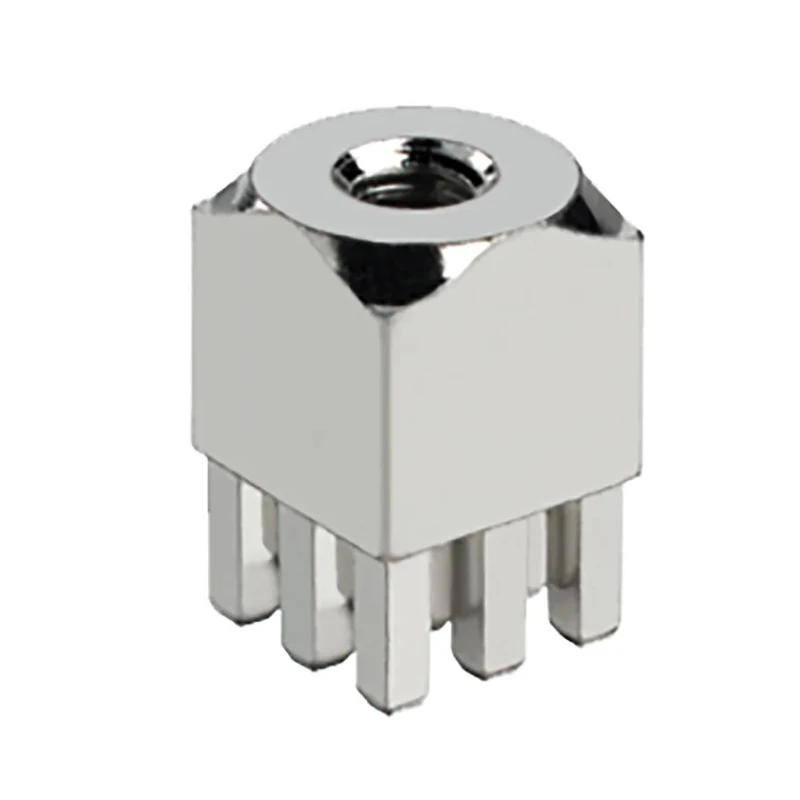

ERNI Screw Terminal Vertical, 160A Current Capacity, Snap-In, 2.54mm Pitch, 16 Legs, Tin-Plated Silver Body 225682 / 225682-E
Specifications
| Country of Origin | Germany |
|---|---|
| Screw Size | M4 |
| Brand | ERNI |
| Colour | Silver |
| Orientation | Vertical |
| Current | 160A |
| Model | 225682 / 225682-E |
| Number of Legs | 16 |
| Number of Rows | 4 |
| Pitch | 2.54mm |
| Body Plating | Tin |
Key Features
- The silver body is tin-plated for enhanced corrosion resistance.
- Features a vertical orientation suited for compact PCB layouts.
- Equipped with M4 size screw for secure connections.
- Designed for high current PCB applications with press-fit technology avoiding soldering.
- Can be used in power sourcing, relays, battery disconnect switches, and fuses.
- Complies with no specific industry standard approvals.
- Manufactured in Germany ensuring high quality and reliability.
Product Description
ERNI 225682 / 225682-E screw terminal is a premium electronic component designed for demanding electrical power applications. Featuring a vertical orientation and rated for a maximum current load of 160A, this snap-in screw terminal provides robust and reliable connectivity for high current PCBs.
The terminal is constructed with a silver-colored body plated with tin, enhancing durability and resistance to corrosion under harsh operating environments. It incorporates 16 legs arranged in 4 rows with a pitch of 2.54mm, allowing a compact yet efficient layout for circuit boards.
Utilizing press-fit technology, these power elements eliminate the need for soldering, reducing thermal stress on the PCB and improving long-term reliability. The M4 screw size ensures secure mechanical fastening, making it suitable for applications such as high current relays, battery disconnect switches, and high current fuses.
The silver tin-plated body offers excellent corrosion resistance and conductivity. The 160A current rating supports high power circuits and industrial equipment. Vertical orientation facilitates efficient PCB use and compact design layouts.
Includes 16 legs in 4 rows, spaced at 2.54mm pitch for tight PCB integration. Features snap-in installation and M4 screw size for firm connection and assembly ease. Press-fit technology prevents damage caused by soldering heat, improving reliability.
Ideal for use in power sourcing applications, relays, switches, and fuses across diverse industrial sectors.
This ERNI screw terminal is a reliable solution engineered to meet the needs of power electronics and industrial automation systems. Browse the Electronics & Electricals category for more specialised connectors and terminal options at EnvMart.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The screw terminal has a maximum current capacity of 160A, making it suitable for high power applications.
This model features a pitch of 2.54mm, allowing for compact integration on circuit boards.
It is equipped with 16 legs arranged in 4 rows, facilitating efficient PCB layouts.
The terminal uses an M4 size screw for secure mechanical fastening.
This screw terminal has a vertical orientation, which is ideal for compact PCB layouts.
The body of the terminal is silver-colored and tin-plated, enhancing its corrosion resistance.
It utilizes press-fit technology, which eliminates the need for soldering and reduces thermal stress on the PCB.
This screw terminal is manufactured in Germany, ensuring high quality and reliability.
It is suitable for applications such as power sourcing, relays, battery disconnect switches, and high current fuses.
The snap-in design and M4 screw size ensure firm connections and ease of assembly.
This product does not comply with any specific industry standard approvals.
The tin plating provides enhanced corrosion resistance and improves the conductivity of the terminal.
