EOZ FL Series Illuminated Push Button Switch Momentary Panel Mount SPST White LED 13.5 mm Cutout IP67 FL13LW5

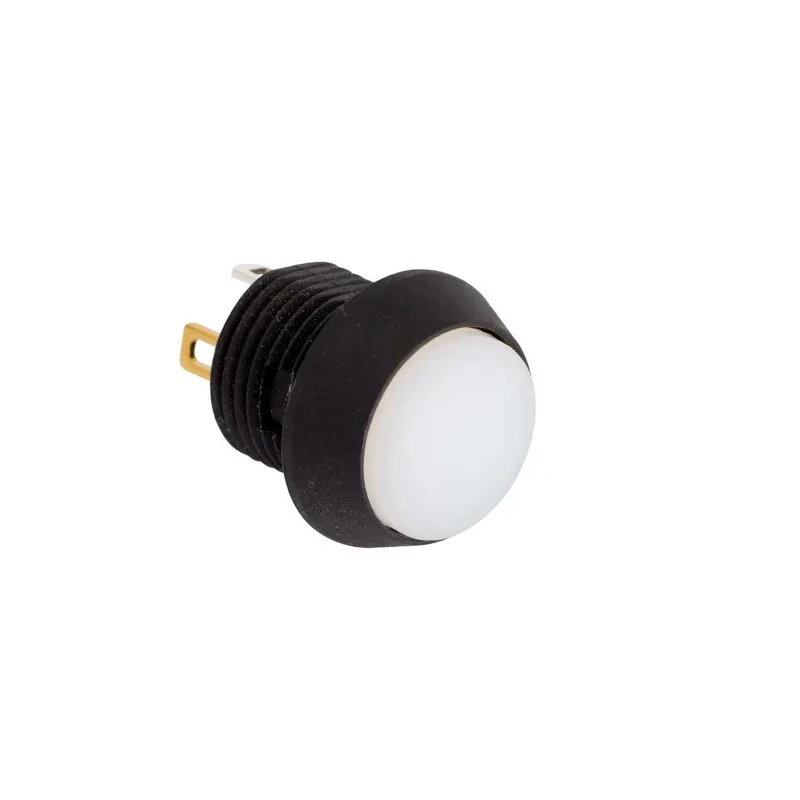

EOZ FL13LW5 FL Series Illuminated Push Button Switch is a momentary SPST switch designed for panel mounting with a 13.5 mm cutout. It features a white LED for full-face illumination, enhancing operational visibility. The switch is IP67 rated, offering complete protection against dust and water ingress, which makes it suitable for demanding industrial environments.

Constructed with robustness in mind, the switch’s contact terminals are gold plated nickel, and the LED terminals use silver plated nickel to ensure reliability and extended lifespan. It can operate within a harsh temperature range from -40°C to +85°C, ensuring consistent performance in diverse settings.

The actuator is styled as a cap with a white color, providing a clear and easy-to-identify control interface. It mounts securely on panels with thicknesses ranging from 1 mm to 6 mm. The plug-in type terminals measure 2.8 x 0.5 mm, facilitating straightforward electrical connections.

The FL series is noted for its vandal resistance and sealed construction, making it ideal for applications requiring durability such as industrial automation, control panels, and exposed outdoor installations. The switch is certified compliant with RoHS environmental standards.

This push button switch features a momentary SPST switch operation for precise control. The unit includes a white LED illumination integrated with full face lighting for enhanced visibility. Designed for panel mounting with a cutout size of 13.5 mm, fitting industrial standards.

Rated IP67 ingress protection, ensuring resistance to dust and water for versatile application. Operating temperature range spans from -40°C to +85°C, suitable for harsh environments. Contact terminals are gold plated nickel, and LED terminals are silver plated nickel for durability.

The actuator style is cap type with white actuator color for intuitive use. Plug-in terminal type 2.8 x 0.5 mm provides straightforward installation. Switch contact current rating is 65mA, supporting electronic control applications.

Ideal for use in industrial automation, electrical control panels, instrumentation, manufacturing, and machinery safety systems requiring reliable momentary switch action and clear indication through illumination.
