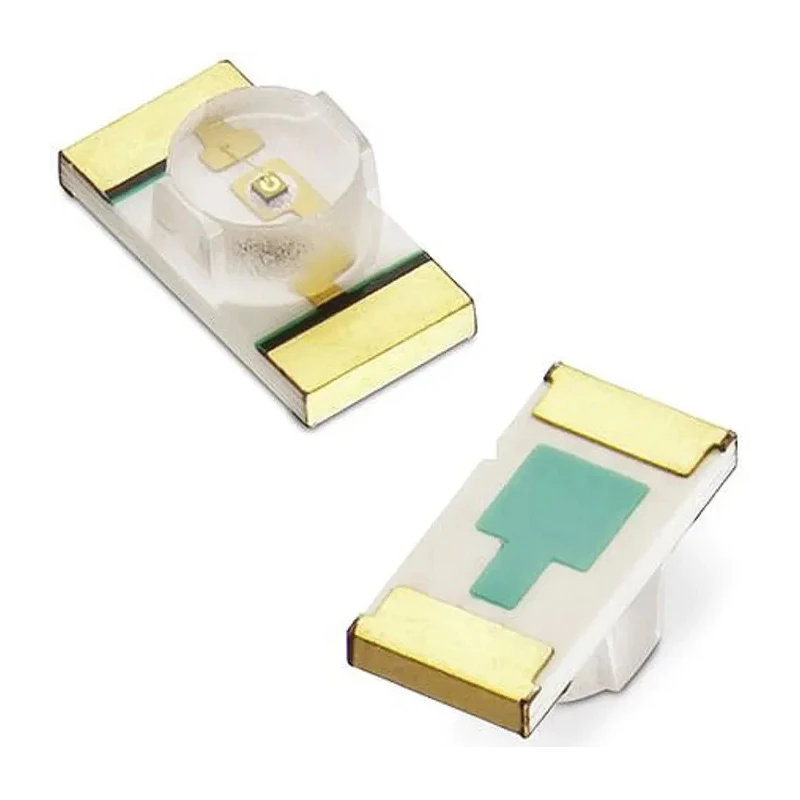

Wurth Elektronik 3.2 V Blue LED 3016 Surface Mount WL-SMRW 156120BS75300
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Model | 156120BS75300 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | WL-SMRW |
| Maximum forward current | 100mA |
| Viewing angle | 140 ° |
| Package Type | 3016 |
| Standards/Approvals | RoHS |
| LED Colour | Blue |
| Dominant Wavelength | 470nm |
| Forward Voltage | 3.2V |
| Number of Pins | 2 |
| LED Luminosity | 50 mcd |
| Maximum Power Dissipation | 95mW |
| Lens Dimensions | 1.6 x 1.2 mm |
| Lens Shape | Round |
Key Features
- This LED has a maximum forward current of 100 mA for efficient operation.
- The device dissipates a maximum power of 95 mW to ensure reliability.
- The LED features a high brightness level of 50 mcd with a dominant wavelength of 470 nm.
- It uses a standard 3016 package with surface mount technology for PCB integration.
- The lens is clear and round with dimensions of 1.6 x 1.2 mm and a 140° viewing angle.
- This component complies with RoHS standards for environmental safety.
- The LED is supplied in tape and reel packaging for automated assembly.
- Designed primarily for indicator, backlighting, and display applications in industrial and electronic equipment.
Product Description
Wurth Elektronik 156120BS75300 is a blue LED in a compact 3016 surface mount package designed for electronic components applications requiring high light intensity and reliability. Operating at a forward voltage of 3.2 V and supporting a maximum forward current of 100 mA, this LED delivers an output luminosity of 50 mcd with a dominant wavelength of 470 nm. The WL-SMRW series features reverse mount chip LEDs with a water-clear round lens to provide a wide 140° viewing angle. Its low-profile design supports space-saving PCB layouts in industrial, manufacturing, and electronic control systems.
The device is RoHS compliant, ensuring it meets environmental regulations for hazardous substance restrictions. It is supplied in tape and reel form to facilitate high-volume assembly processes. Typical applications include backlighting for LCDs, indicator lamps, switch illumination, and message displays in commercial, industrial, and automotive equipment. The standard 3016 SMT footprint ensures compatibility with automated placement machinery.
Maximum forward current rating of 100 mA provides efficient performance. Power dissipation capped at 95 mW enables durability under operating conditions. High luminosity of 50 mcd at 470 nm wavelength allows clear visible indication.
Compact 1.6 x 1.2 mm lens size maintains minimal board space usage. Wide 140° viewing angle broadens visibility range for signaling applications. Tape & reel packaging supports streamlined manufacturing and handling. Surface mount technology supports modern PCB assembly methods.
RoHS certification guarantees compliance with environmental standards.
This LED is suited for applications including electronics manufacturing, signal indicators, automotive lighting, and general illumination within industrial automation and control systems. Browse Wurth Elektronik LEDs on EnvMart for more options and specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this LED is 100 mA, allowing for efficient operation.
The dominant wavelength of this blue LED is 470 nm, which contributes to its color output.
The lens dimensions are 1.6 x 1.2 mm, designed for compact PCB layouts.
The maximum power dissipation for this LED is capped at 95 mW, ensuring reliability under operating conditions.
This LED features a wide viewing angle of 140°, enhancing visibility for signaling applications.
It is supplied in tape and reel packaging, which facilitates automated assembly processes.
The LED delivers a luminosity of 50 mcd, providing clear visible indication.
The forward voltage for this LED is 3.2 V, which is necessary for its operation.
Yes, this LED complies with RoHS standards, ensuring it meets environmental regulations for hazardous substances.
This model uses a surface mount type, suitable for modern PCB assembly methods.
This LED is suited for applications such as backlighting for LCDs, indicator lamps, and switch illumination in various electronic equipment.
This LED belongs to the WL-SMRW series, which features reverse mount chip LEDs.
