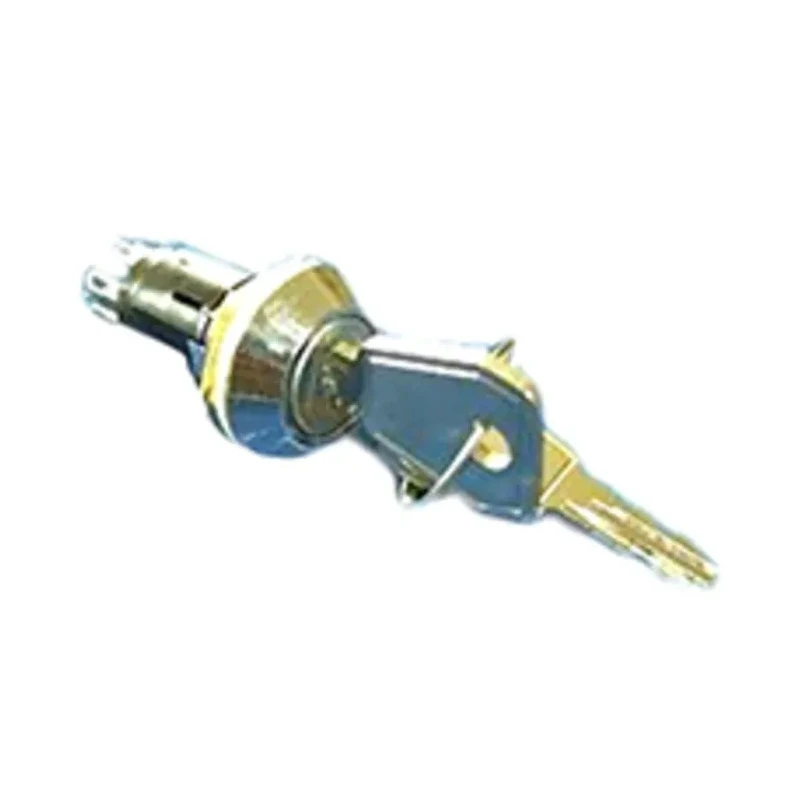

Lorlin IP66, IP67 Rated Sealed Keylock Switch SPST 1A 3-Position 90° Common-Key WRL-5-P-S-2-RS

Lorlin WRL-5-P-S-2-RS is a high-quality sealed miniature keylock switch featuring an IP66 and IP67 rating, making it suitable for demanding industrial, marine, and outdoor electrical applications requiring protection against dust and water ingress. The switch utilizes a single pole single throw (SPST) contact configuration allowing simple on/off control in electrical circuits with a rated contact current of 1 amp at both DC and AC voltages (24V DC and 115V AC respectively).

The switch operates with a latching mechanism and has three selectable key positions with a 90-degree key index angle, allowing precise and secure control. The common-key design enables multiple switches to be operated with one key, enhancing convenience for equipment control panels.

Its robust polyamide 66 housing combined with brass contact materials ensures mechanical durability and electrical reliability. The switch is designed for easy panel installation with a round bezel and solder terminal types, projecting less than 30 mm behind the mounting panel, thus conserving space in equipment.

The WRL series switch can operate in adverse temperature conditions from -20°C up to +65°C and has a proven mechanical lifecycle of 10,000 cycles, ensuring long-lasting performance.

Two keys are supplied with each switch, designed for double-entry to prevent incorrect insertion and provide ease of use in industrial automation, control panels, HVAC systems, and other electrical equipment installations.

Its IP66 and IP67 ingress protection ratings along with the ability to be lubricated for continuous outdoor use make it suitable for marine environments and other applications exposed to harsh conditions, conforming with RoHS and other relevant standards.

Miniature 16mm key lock switch with IP66/IP67 ratings for dust and waterproof protection. Latching switch operation with SPST contact configuration for reliable electrical switching. Rated for 1A contact current, supporting 24V DC and 115V AC voltages.

Common key type with 3 distinct positions and 90° operating angle. Durable polyamide 66 housing and brass CZ108 contacts ensure longevity. Includes two double-entry keys for operational flexibility and security. Suitable for industrial, automation, HVAC, marine, and electrical control applications.

Compact rear projection less than 30 mm suitable for panel mounting. Wide operating temperature range from -20°C to +65°C with a mechanical life of 10,000 cycles. Compliant with RoHS environmental standards.

This keylock switch is an ideal solution for secure and reliable electrical control, offering resilience in challenging environments and ease of use across industrial and automation sectors. Explore more products within the Key Switches category at EnvMart for comprehensive industrial electrical solutions.
