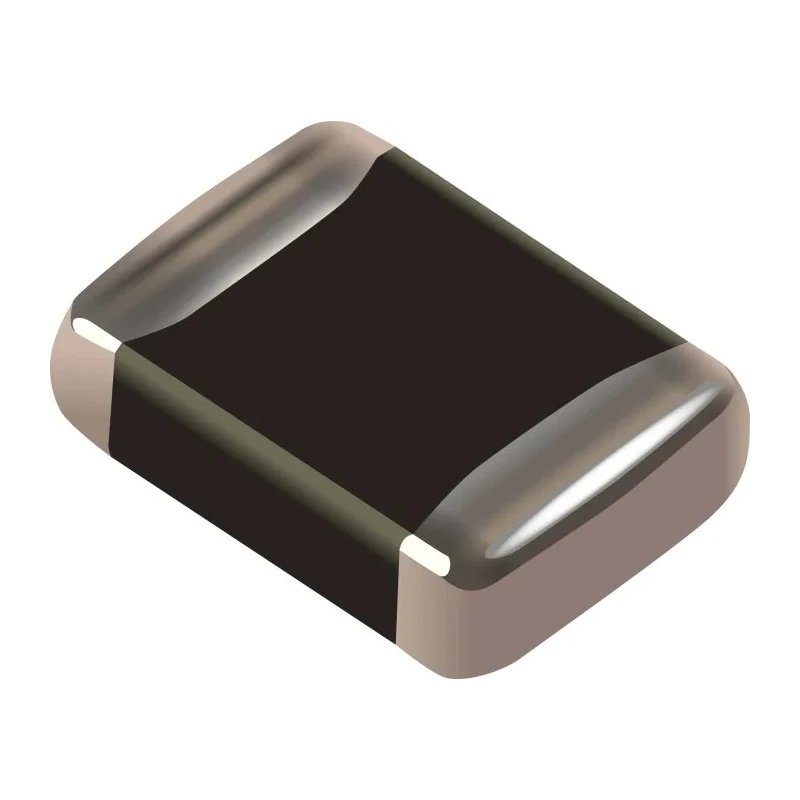

Bourns ZV Varistor 450 pF, Clamping Voltage 77 V, Varistor Voltage 47 V, Surface Mount 1206 Package ZV30K1206201NIR1
Specifications
| Country of Origin | Slovenia |
|---|---|
| Brand | Bourns |
| THICKNESS | 0.85mm |
| Length | 3.2mm |
| Model | ZV30K1206201NIR1 |
| Depth | 1.6mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | ZV |
| Energy Rating | 1.2J |
| Maximum Operating Temperature | 125°C |
| Capacitance | 450pF |
| Minimum Operating Temperature | -55°C |
| Maximum dc Voltage | 38V dc |
| Standards/Approvals | UL, RoHS |
| Package/Case | 1206 |
| Termination Style | Surface Mount |
| Maximum AC Voltage | 30V ac |
| Clamping Voltage VC | 77V |
| Clamping Current | 1A |
| Maximum Surge Current | 200A |
| Varistor Voltage | 47 V |
Key Features
- Capacitance of 450 pF ensures stable performance in transient voltage suppression.
- Clamping voltage rating of 77 V provides effective surge voltage limitation.
- Varistor voltage specified at 47 V for low voltage surge protection.
- Compact 1206 surface mount package suitable for automated PCB assembly.
- Energy rating of 1.2 joules supports absorption of transient energy surges.
- Operation temperature range from -55°C to 125°C for reliable use in harsh environments.
- Maximum surge current capability of 200 A for high transient current withstand.
- Meets UL and RoHS standards for quality and environmental compliance.
Product Description
Bourns ZV Varistor model ZV30K1206201NIR1 is a surface mount transient voltage suppression device in a 1206 package, featuring 450 pF capacitance and designed to protect sensitive electronic components from damaging voltage spikes. It supports an operating voltage range of up to 38 V DC and maximum AC voltage of 30 V, with a clamping voltage of 77 V and varistor voltage of 47 V.
This varistor is ideal for applications requiring rapid response to transient surges and energy absorption up to 1.2 joules. The device handles surge currents up to 200 A and operates reliably across temperatures ranging from -55°C to +125°C. Its compact 1206 surface mount package facilitates automated placement on printed circuit boards.
The varistor meets industry UL and RoHS standards, ensuring safety and environmental compliance. Its threshold voltage temperature coefficient is less than +0.05% per degree Celsius, providing stable performance in fluctuating thermal environments.
Typical applications include industrial electronics, power supplies, telecommunications, and consumer electronics where surge and transient voltage protection is critical. Its tape and reel packaging supports high-volume automated assembly lines.
Capacitance of 450 pF for effective transient suppression. Clamping voltage of 77 V to limit voltage spikes. Varistor voltage specification of 47 V. Surface mount 1206 package for compact design. Energy rating of 1.2 joules allowing absorption of high-energy surges.
Wide operating temperature range from -55°C to 125°C. Maximum surge current tolerance of 200 A. UL and RoHS certified for product safety and compliance. Low threshold voltage temperature coefficient enhances reliability.
Manufactured in Slovenia with stringent quality control.
This Bourns Varistor is a crucial component for surge protection in industrial, laboratory, and electronic manufacturing sectors. Browse our catalog for additional surge protection components and Bourns electronics to meet diverse technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this varistor is 450 pF, ensuring stable performance in transient voltage suppression.
The clamping voltage rating for the Bourns ZV30K1206201NIR1 is 77 V, which provides effective surge voltage limitation.
The varistor voltage specified for this model is 47 V, designed for low voltage surge protection.
This varistor can handle a maximum surge current of 200 A, making it suitable for high transient current applications.
The operating temperature range for this model is from -55°C to 125°C, allowing reliable use in harsh environments.
The dimensions of the Bourns ZV30K1206201NIR1 are 3.2 mm in length, 1.6 mm in depth, and 0.85 mm in thickness.
This varistor has an energy rating of 1.2 joules, supporting the absorption of transient energy surges.
The Bourns ZV30K1206201NIR1 is packaged in a compact 1206 surface mount format, suitable for automated PCB assembly.
It meets UL and RoHS standards, ensuring compliance with safety and environmental regulations.
The maximum DC voltage for the Bourns ZV30K1206201NIR1 is 38 V.
This varistor is suitable for applications in industrial electronics, power supplies, telecommunications, and consumer electronics where surge protection is critical.
It is packaged in tape and reel format, which supports high-volume automated assembly lines.
