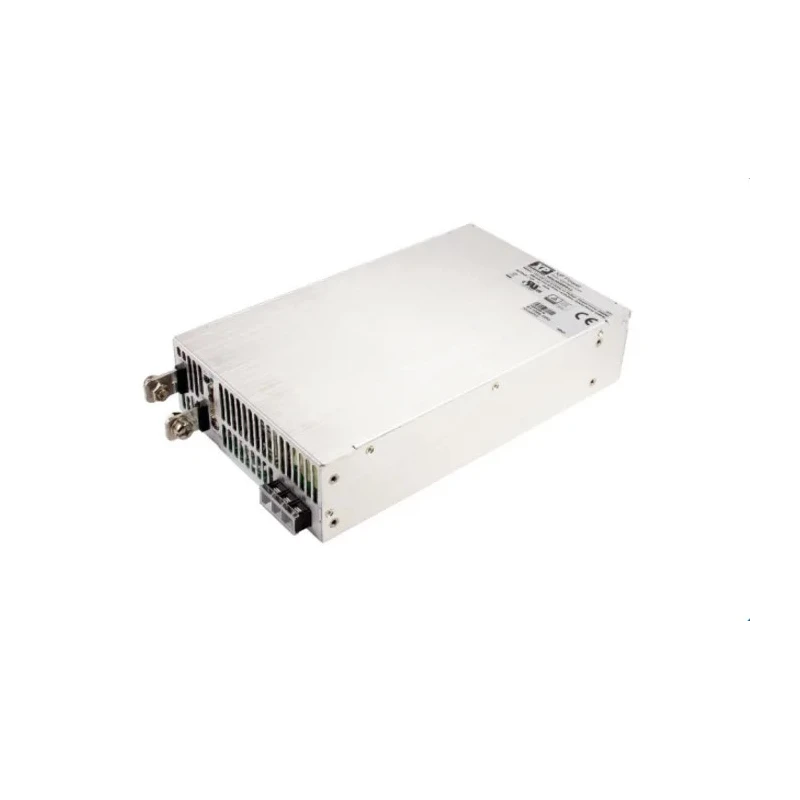

XP Power HDL3000PS12 Switching Power Supply 60V Output, 2.4 kW Power, Chassis Mount, 264V AC Input HDL3000PS12

XP Power HDL3000PS12 switching power supply is a high power, high efficiency chassis mount unit designed for industrial and electronic applications requiring a compact yet robust power source.

This model delivers a maximum output voltage of 60V with a continuous output current of 200A, producing 2.4 kW of power suitable for demanding electronic systems, laboratory equipment, and industrial machinery.

Its compact size of 170mm length, 2.52mm width, and 12.48mm depth offers high power density, enabling integration in space-constrained environments. The device supports programmable output voltage and current from 0 to 105%, configurable via resistance, voltage, or an I2C communication bus for precise control and monitoring.

The wide input voltage range from 90V to 264V AC allows operation over diverse electrical supply scenarios. The product efficiently operates between temperatures of -20°C and 60°C, ensuring reliability in harsh environments. Efficiency of 88% helps minimize energy losses and enables cooler running temperatures.

Additional features include active current sharing for parallel operation, remote on/off control, remote sensing to compensate voltage drops, and a power OK signal to indicate output status. A selectable standby output is available at either 5V/0.5A or 9V/0.3A to maintain auxiliary power when mains supply is present.

Compliance with international safety standards UL 62368-1, CAN/CSA C22.2 No.62368-1-14, EN 62368-1: 2014/A11: 2017, IEC 62368-1: 2014 ensures safe and reliable use in professional and commercial environments.

This switching power supply is ideal for use in industrial machinery, laboratory test equipment, telecommunications, manufacturing processes, and power supply distribution systems.

Manufactured in Taiwan, Province of China, this unit is supplied new and ready for immediate deployment across multiple industrial applications. The HDL3000 series marks a balance of power, precision, and compact design for high-efficiency switching power demands.

Explore the range of high-quality power supplies available at EnvMart for your industrial electrical supply needs. High power density chassis mount design measuring 170mm x 2.52mm x 12.48mm. Programmable output voltage and current from 0 to 105% via resistance, voltage or I2C bus.

Maximum output current rated at 200A for demanding applications. High efficiency of up to 88% ensures energy savings and reduced heat. Wide input voltage range from 90V to 264V AC supports varied supply conditions. Operates safely in temperature range from -20°C to 60°C.

Includes active current sharing, remote on/off, remote sense, and power OK signal features. Standby output selectable at 5V/0.5A or 9V/0.3A provides power presence indication. Conforms to UL 62368-1, CAN/CSA C22.2 No.62368-1-14, EN 62368-1:2014/A11:2017, IEC 62368-1:2014 standards.

Manufactured in Taiwan, Province of China with new product condition guaranteed.
