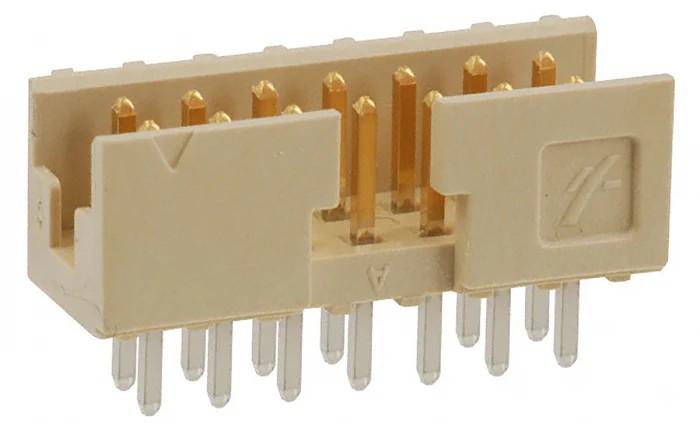

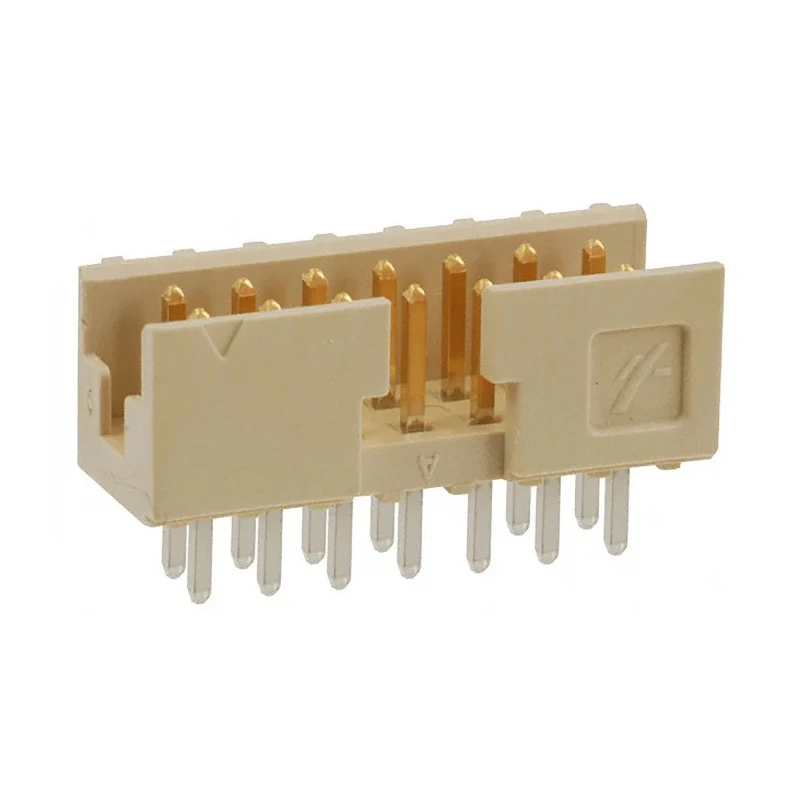

Amphenol Communications Solutions Minitek Series Straight Through Hole PCB Header, 14 Contacts, 2 mm Pitch, 2 98414-G06-14LF
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 200V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 2A |
| Model | 98414-G06-14LF |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | Minitek |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.5mm |
| Mating Pin Length | 4mm |
Key Features
- Constructed with thermoplastic housing for durable performance.
- Phosphor bronze contacts plated with gold ensure reliable conductivity.
- Rated for 2A current and 200V voltage operations.
- Features shrouded, straight orientation suitable for board-to-board or wire-to-board connections.
- Operating temperature range from -40°C up to 125°C for diverse environmental conditions.
- Solder termination type with male contact gender and 2.5mm tail pin length.
- Complies with the Minitek series standard for modular connector solutions.
- Manufactured in France ensuring high-quality standards.
Product Description
Amphenol Communications Solutions 98414-G06-14LF PCB Header is part of the Minitek Series offering a reliable and professional-grade solution for electronic circuit board connections. Featuring a shrouded design with 14 male contacts, each spaced at 2 mm pitch across 2 rows, this through-hole header ensures secure and efficient electrical connections in both board-to-board and wire-to-board applications.
The housing is crafted from high-temperature thermoplastic material, providing protection and durability under demanding industrial conditions. Contacts are made from phosphor bronze with gold plating to deliver excellent conductivity and corrosion resistance, supporting a continuous current of 2A and operating voltage of up to 200V.
Engineered for versatility, it offers a broad operating temperature range from -40°C to 125°C, making it suitable for harsh environments in telecommunications, industrial control systems, computing, and other electronic equipment.
The component has a straight orientation and features a solder termination type with a 2.5 mm tail pin length and 4 mm mating pin length, enhancing mechanical stability during assembly.
This connector complies with Minitek standards, providing modularity and intermateability with other common connector designs, facilitating system design flexibility. Constructed with thermoplastic housing for durability.
Gold-plated phosphor bronze contacts for reliable connectivity. 2A current rating for efficient power handling. Wide operating temperature range from -40°C to 125°C. Straight orientation with shrouded design for protection.
Through hole mount type suitable for standard PCB assembly. Manufactured in France delivering quality assurance.
This PCB Header is ideal for use in electronic components, power connectors, telecommunications equipment, and industrial electronic assemblies where reliable board connections are critical.
Explore the Electronics Components category at EnvMart for more high-quality connectors and related products from Amphenol Communications Solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a continuous current of 2A, making it suitable for efficient power handling in various applications.
The voltage rating for this unit is up to 200V, which allows it to be used in a range of electronic applications.
The connector features a 2 mm pitch and includes 14 male contacts arranged in 2 rows, ensuring secure connections.
It is constructed with a thermoplastic housing and features phosphor bronze contacts plated with gold for reliable conductivity.
This model operates within a temperature range of -40°C to 125°C, making it suitable for diverse environmental conditions.
It utilizes a solder termination type, which provides a secure connection during assembly.
The connector has a straight orientation, which is designed for board-to-board or wire-to-board connections.
The tail pin length is 2.5 mm, and the mating pin length is 4 mm, enhancing mechanical stability during assembly.
This PCB header is ideal for telecommunications equipment, industrial control systems, and other electronic assemblies where reliable board connections are critical.
This model is manufactured in France, ensuring adherence to high-quality standards.
It supports board-to-board and wire-to-board connector systems, providing flexibility for various electronic designs.
Yes, it complies with the Minitek series standard for modular connector solutions, ensuring intermateability with other common designs.
