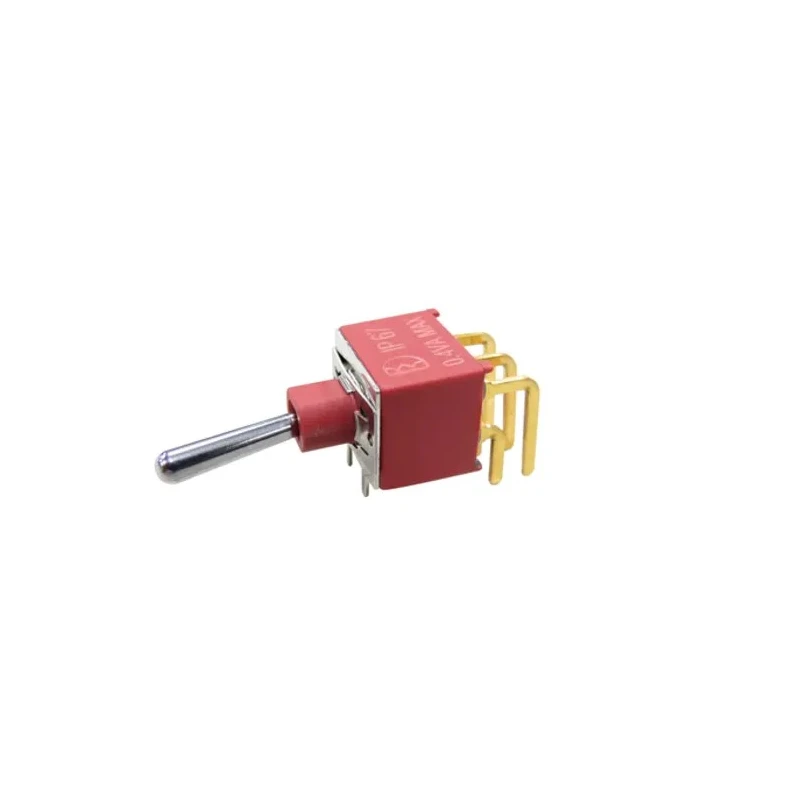

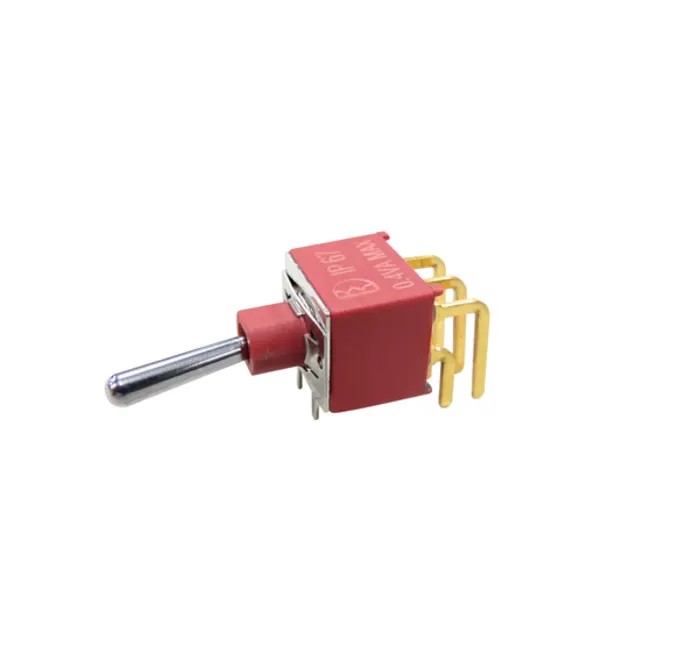

RS PRO Toggle Switch Through Hole Mount On-None-On DPDT Right Angle Terminal IP67 Rated 209-9343
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Length | 12.7mm |
| Model | 209-9343 |
| IP Rating | IP67 |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-None-On |
| Minimum Operating Temperature | -40°C |
| Terminal type | Right Angle Through Hole |
| Standards/Approvals | RoHS 2011/65/EU & 2015/863 |
| Switch Operation | On-None-On |
| Switch Contact Current | 5A |
| Actuator Material | Chrome Plated Brass |
Key Features
- The toggle switch operates with an On-None-On switch operation, enabling two connection positions.
- It features a durable chrome plated brass actuator and right angle through hole terminals for secure mounting.
- Rated IP67 for waterproof protection against dust and water ingress.
- Operates reliably between -40°C and 85°C, suitable for varied environments.
- Supports a switch contact current of 5A with a mechanical life of 30,000 cycles.
- Complies with RoHS 2011/65/EU and 2015/863 environmental standards.
- Compact dimensions of 12.7mm length and 6.6mm width allow for space-efficient installations.
- Ideal for applications in telecommunications, industrial control, instrumentation, and marine equipment.
Product Description
RS PRO 209-9343 Toggle Switch is a high-quality double-pole, double-throw (DPDT) sealed miniature toggle switch featuring On-None-On operation for effective electrical circuit management. It is designed for through hole mounting with right angle terminals and meets IP67 standards for dust and water resistance.
This robust toggle switch operates reliably across an extensive temperature range from -40°C to 85°C, making it suitable for demanding industrial and commercial environments. Its chrome plated brass actuator and O-ring sealed design ensure durability and insulation resistance, offering a mechanical life of up to 30,000 make-and-break cycles.
With a 5A contact rating and compliance with RoHS 2011/65/EU and 2015/863 standards, the RS PRO 209-9343 is ideal for use in telecommunications, networking equipment, industrial control panels, instrumentation, marine control panels, and medical devices such as food processing equipment and wheelchair motors.
The toggle switch provides On-None-On operation with DPDT contact configuration. Equipped with six gold-plated copper alloy terminals for reliable electrical connections. Stainless steel support retainer and right angle mounting brackets enhance durability and installation flexibility.
Compact size with a length of 12.7mm and width of 6.6mm suitable for tight integration spaces. IP67-rated sealing protects against dust and water ingress for long-lasting use in harsh environments. Supports a wide operating temperature range from -40°C to 85°C.
Ideal for applications in industrial controls, telecommunications, marine, and medical equipment.
This RS PRO Toggle Switch is an essential component for reliable switching applications requiring waterproof sealing and compact form factor. Environmentally compliant with RoHS standards, it combines precision electrical switching with mechanical durability for professional and industrial use.
Explore more RS PRO industrial electrical components and switches at EnvMart for a comprehensive range of reliable products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a double-pole, double-throw (DPDT) contact configuration, allowing for effective electrical circuit management.
It operates reliably at a maximum temperature of 85°C, making it suitable for various demanding environments.
This toggle switch is rated IP67, providing protection against dust and water ingress.
The toggle switch has a mechanical life of up to 30,000 cycles, ensuring long-term reliability.
It supports a switch contact current of 5A, suitable for various applications.
The switch has compact dimensions of 12.7mm in length and 6.6mm in width, making it suitable for tight integration spaces.
It features right angle through hole terminals for secure mounting and reliable electrical connections.
The toggle switch operates reliably at a minimum temperature of -40°C, allowing it to function in extreme conditions.
The actuator is made of chrome plated brass, providing durability and insulation resistance.
It complies with RoHS 2011/65/EU and 2015/863 environmental standards, ensuring environmental safety.
It is ideal for applications in telecommunications, industrial control, instrumentation, and marine equipment.
The switch is designed for through hole mounting, facilitating easy installation in various setups.
