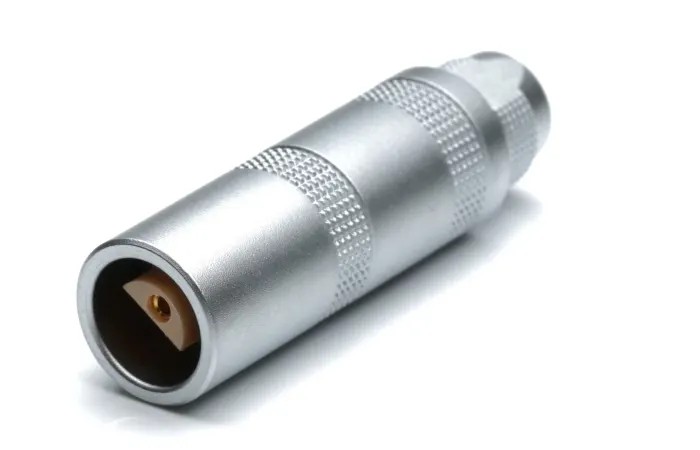

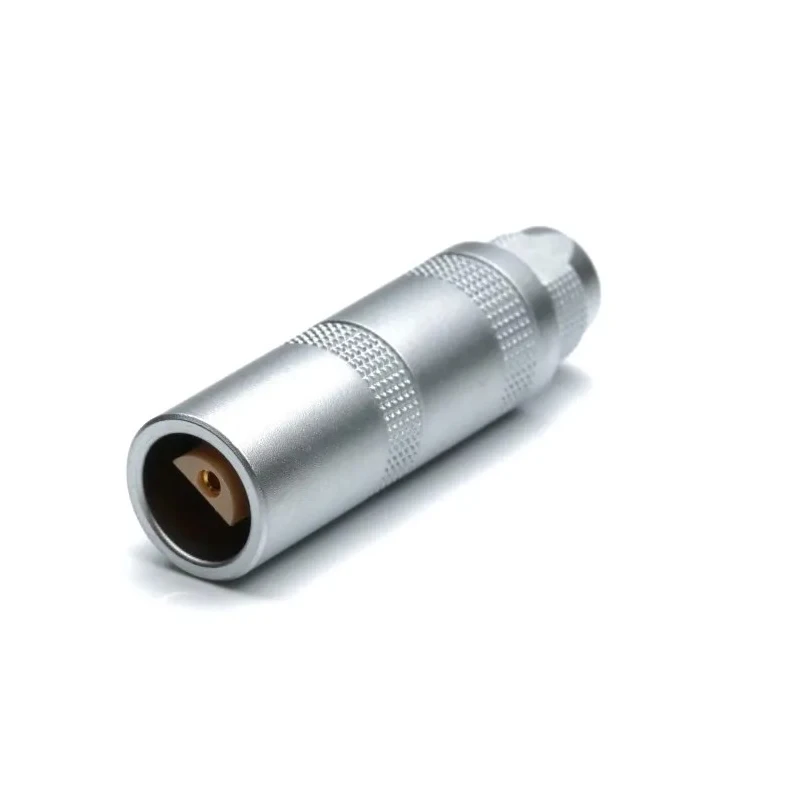

RS PRO Circular Connector, 2 Contacts, Cable Mount, Standard Size, Socket Female, Push Pull Mating, IP50 Rated 209-5694
Specifications
| Country of Origin | China |
|---|---|
| Display | screen |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 15A |
| Model | 209-5694 |
| IP Rating | IP50 |
| Mount Type | Cable |
| Housing Material | Chrome Plated Brass |
| Contact Material | Brass |
| Termination Type | Solder |
| Maximum Operating Temperature | 250°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 2 |
| Contact Plating | Gold Plated |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Shell Size | 5.2 mm |
| Mating Type | Push Pull |
| Connector Size | Standard |
| Plug/Socket | Socket |
Key Features
- The connector features a push-pull locking interface to prevent miss-mating and ensure secure connections.
- It is constructed from chrome plated brass housing for corrosion and impact resistance.
- Gold-plated brass contacts provide excellent conductivity and durability.
- Designed for up to 15A current with a shell size of 5.2 mm.
- Rated for operating temperatures from -55°C to 250°C, suitable for tough industrial conditions.
- Offers 360° EMC shielding for optimal electromagnetic compatibility and interference reduction.
- Easy installation with solder termination and straight orientation.
- Widely used in medical, testing, audio equipment, robotics, and automation industries.
Product Description
RS PRO 209-5694 Circular Connector is a high-performance, 2-contact cable mount socket connector designed for industrial applications. It features a push-pull mating type and a standard size shell of 5.2 mm with straight orientation for seamless integration into automation systems.
The housing is made from chrome plated brass, delivering excellent corrosion resistance and mechanical durability. The gold-plated brass contacts provide reliable electrical connections rated at 15A current, ensuring stable performance under demanding operating temperatures from -55°C to 250°C.
This IP50 rated connector has a 360° screening for full EMC shielding, which minimizes electromagnetic interference, making it ideal for use in medical devices, testing equipment, audio applications, robotics, industrial production lines, and factory automation where secure connectivity and robust performance are critical.
The connector offers solder termination and a push-pull locking interface that secures the connection with quick and easy installation, saving valuable time during assembly and maintenance.
The connector features a push-pull locking interface to prevent miss-mating and ensure secure connections. It is constructed from chrome plated brass housing for corrosion and impact resistance. Gold-plated brass contacts provide excellent conductivity and durability.
Designed for up to 15A current with a shell size of 5.2 mm. Rated for operating temperatures from -55°C to 250°C, suitable for tough industrial conditions. Offers 360° EMC shielding for optimal electromagnetic compatibility and interference reduction.
Easy installation with solder termination and straight orientation. Widely used in medical, testing, audio equipment, robotics, and automation industries.
RS PRO brand is known for high-quality industrial components rigorously tested for demanding standards, making these circular connectors an excellent choice for manufacturers and engineers seeking reliability and longevity in their equipment.
Explore the full range of Industrial Circular Connectors at EnvMart for compatible connectors and accessories to meet diverse application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is designed for a maximum current of 15A.
The connector is rated for operating temperatures from -55°C to 250°C.
The housing is made from chrome plated brass, while the contacts are gold-plated brass.
The push-pull mating type allows for secure connections and prevents miss-mating during installation.
This model has an IP50 rating, indicating protection against dust but not against water.
It features a solder termination type for connecting wires.
The shell size of this connector is 5.2 mm.
It is widely used in medical, testing, audio equipment, robotics, and automation industries.
This is a cable mount socket connector with 2 contacts and a female contact gender.
The 360° EMC shielding minimizes electromagnetic interference, enhancing compatibility in sensitive applications.
This connector has a straight orientation for easy integration into systems.
The model number is 209-5694.
