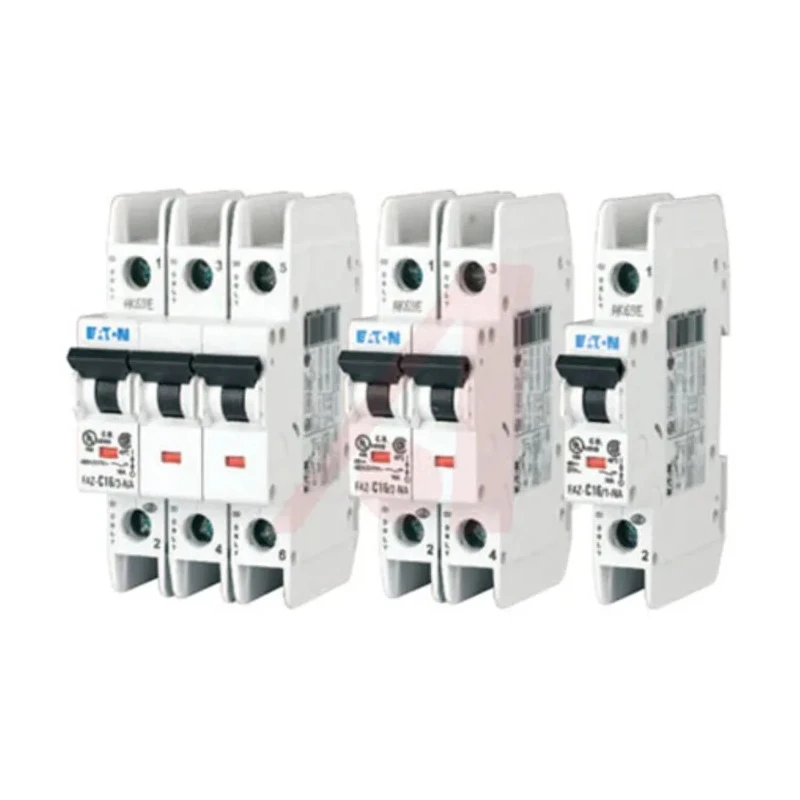

Eaton xEffect FAZ Miniature Circuit Breaker, 2-Pole, 5A, Type D, 415V AC, 60V DC, 10 kA Breaking Capacity 102223 FAZ-D5/2-RT
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | 102223 FAZ-D5/2-RT |
| Depth | 76mm |
| IP Rating | IP20 |
| Width | 105mm |
| Mount Type | DIN Rail |
| Current Rating | 5A |
| Series | FAZ |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 2 |
| Rated AC Voltage | 415V ac |
| Rated DC Voltage | 60V dc |
| Tripping Characteristics | Type D |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
Key Features
- Designed for a rated AC voltage of 415V and rated DC voltage of 60V.
- Offers a breaking capacity of 10 kA, ensuring high fault interruption.
- Mounts easily on a DIN rail with screw-type terminals for secure connections.
- Features a toggle switch with a trip-free design for safety.
- Compact dimensions with 105mm width and 76mm depth for panel integration.
- Utilizes thermal magnetic tripping mechanism offering six levels of over-current protection.
- Ip20 rated for basic protection against touch and ingress.
- Suitable for supplementary protection in control panel applications.
Product Description
Eaton 102223 FAZ-D5/2-RT Miniature Circuit Breaker, part of the xEffect FAZ series, provides high quality and reliable protection for electrical control panels. This 2-pole circuit breaker supports a current rating of 5A with Type D tripping characteristics ensuring fast response to overcurrents and short circuits. Rated for 415V AC and 60V DC operation, it increases safety in both AC and DC electrical systems.
The breaker offers a robust breaking capacity of 10 kA which limits damage during fault conditions by reducing let-through energy. It mounts securely on DIN rails and features screw terminals for reliable wire connections. The toggle switch actuator is trip-free and can be sealed in both on and off positions to prevent accidental operation.
The FAZ series incorporates a thermal-magnetic tripping mechanism with six protection levels, delivering dependable thermal and short circuit protection. Its compact design with 105mm width and 76mm depth allows installation in cramped panel spaces. The IP20 rating ensures protection against accidental finger contact and small foreign objects.
Visual indication of contact status is provided by red and green lights, enhancing operational safety. This product is suitable for supplementary circuit protection in industrial, commercial, and residential electrical distribution systems. Eaton, formerly Moeller, is renowned for its durable and safe electrical components.
Rated for both AC and DC voltage systems providing versatility. Current limiting design helps protect downstream circuits. Easy to install with DIN rail mounting and standard screw terminals. Robust construction ensures durability and safety compliance.
Intended for use in industrial, commercial, and residential electrical applications. Trip-free toggle switch prevents bypassing of protective features. Explore more Eaton Miniature Circuit Breakers and accessories at EnvMart for all your electrical protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 5A, making it suitable for various electrical applications.
The Eaton FAZ-D5/2-RT offers a breaking capacity of 10 kA, which helps limit damage during fault conditions.
It is rated for 415V AC and 60V DC, allowing for versatile use in different electrical systems.
This unit utilizes a thermal magnetic tripping mechanism, providing six levels of over-current protection.
It mounts securely on DIN rails and features screw terminals for reliable wire connections.
The compact design measures 105mm in width and 76mm in depth, suitable for installation in tight spaces.
This model has an IP20 rating, providing basic protection against touch and ingress of small objects.
It features a toggle switch actuator that is trip-free, preventing accidental operation.
This circuit breaker is intended for supplementary protection in industrial, commercial, and residential electrical distribution systems.
It has Type D tripping characteristics, ensuring a fast response to overcurrents and short circuits.
Yes, the circuit breaker includes red and green lights for visual indication of contact status, enhancing operational safety.
The country of origin for this product is India.
