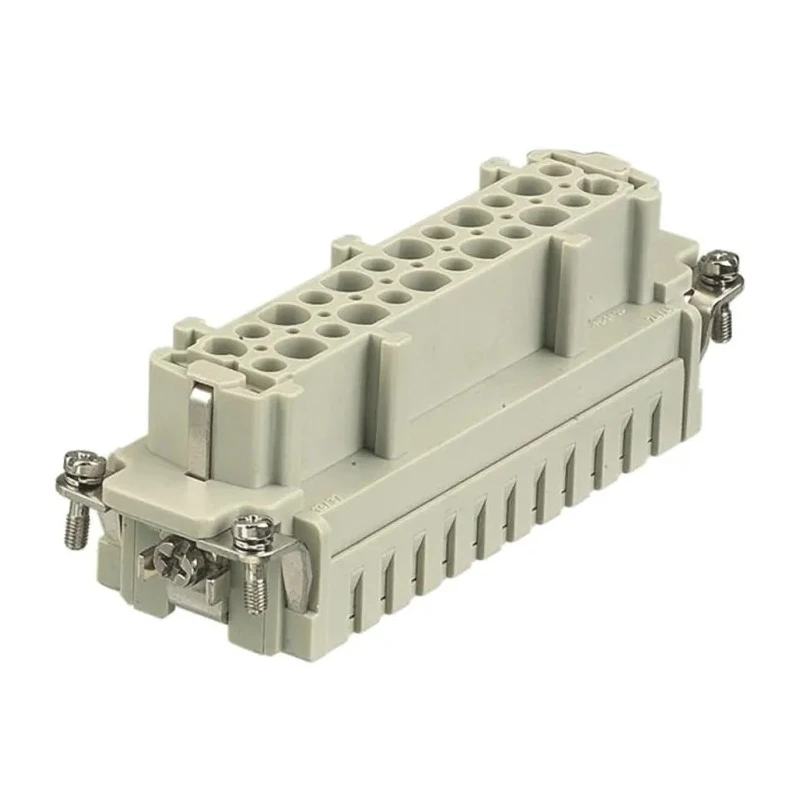

HARTING Heavy Duty Power Connector Insert Han E Series Female 16A 24 Contacts 09330242712
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Cable |
| Contact Material | Polycarbonate |
| Current Rating | 16A |
| Series | Han E |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 24 |
| Number of Contacts | 24 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 4mm² |
Key Features
- This connector insert is designed for heavy duty power connector systems and supports 24 poles with 2 rows.
- The contact material is polycarbonate, providing reliable electrical insulation and durability.
- It is a female connector insert suitable for cable mount applications.
- Wire size support ranges from 0.14mm² minimum to 4mm² maximum, requiring crimp contacts that must be ordered separately.
- Its orientation is straight, making it compatible with Han E size 48B connectors.
- This product is manufactured in Germany with new condition assurance.
- It is recommended not to mate or unmate the connectors under electrical load to prevent damage.
- The connector complies with UL, CSA, and SEV approvals ensuring industry standards compliance.
Product Description
HARTING 09330242712 Heavy Duty Power Connector Insert is an industrial-grade connector designed for demanding electrical applications. This connector is part of the Han E® 16A Crimp Series intended for use with heavy duty power connectors, supporting a current rating of 16 amperes and a working voltage of 500 volts. It features 24 pole format contacts arranged in two rows, housed in a polycarbonate material for enhanced performance in harsh environments.
This female connector insert supports cable mounting and requires compatible crimp contacts, which are separately available in wire sizes of 1.5mm² and 2.5mm² options. Its straight orientation ensures proper alignment and fit within Han E size 48B housings and hoods, designed within ranges 5, 6, 7, and 8 for flexible system integration.
Applications for this product include industrial machinery, automation, power distribution, and manufacturing equipment where reliable power connection is critical. The robust build and compliance with UL, CSA, and SEV standards ensure electrical safety and durability.
Note that the connectors should never be connected or disconnected while under electrical load to avoid damage or incorrect connections. Polarization is used in line arrangements to prevent mismating with other connector types.
Rated for 16A current and 500V voltage. Includes 24 contacts arranged in 2 rows for enhanced electrical connectivity. Polycarbonate contact material offers rugged insulation and durability. Supports cable mount installation for versatile use.
Compatible with Han E size 48B connector hoods and housings. Manufactured in Germany with premium build quality. Meets UL, CSA, and SEV industry approvals for safety and standards compliance.
This HARTING Heavy Duty Power Connector Insert provides a reliable solution for industrial and commercial electrical systems requiring secure power connections. Explore more connectors and accessories from HARTING on EnvMart for your professional needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector insert has a current rating of 16 amperes.
It supports a maximum working voltage of 500 volts.
This model features 24 contacts arranged in two rows.
It supports wire sizes ranging from a minimum of 0.14mm² to a maximum of 4mm².
This connector insert is designed for cable mounting applications.
The contact material is polycarbonate, providing reliable electrical insulation.
It is compatible with Han E size 48B connector housings and hoods.
It is recommended not to mate or unmate the connectors under electrical load to prevent damage.
This product is manufactured in Germany.
It complies with UL, CSA, and SEV approvals for industry standards compliance.
It is suitable for applications in industrial machinery, automation, power distribution, and manufacturing equipment.
The orientation of this connector insert is straight, ensuring proper alignment.
