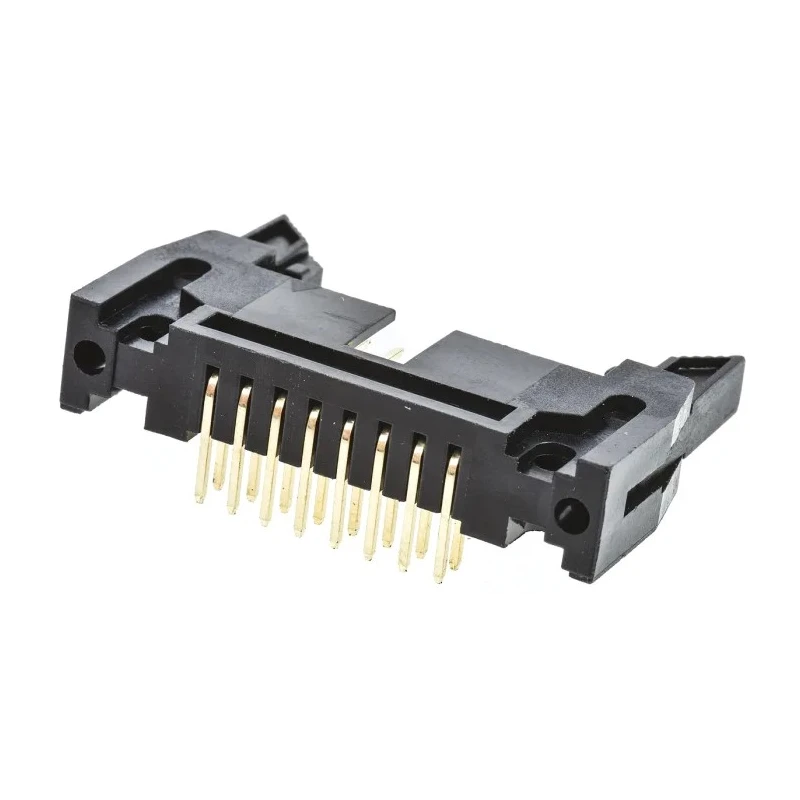

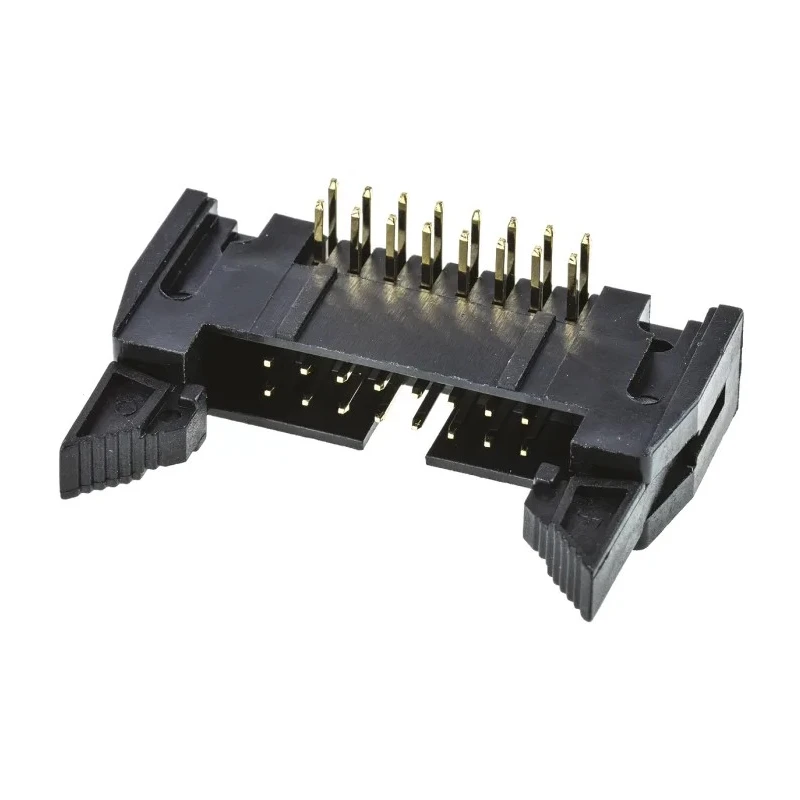

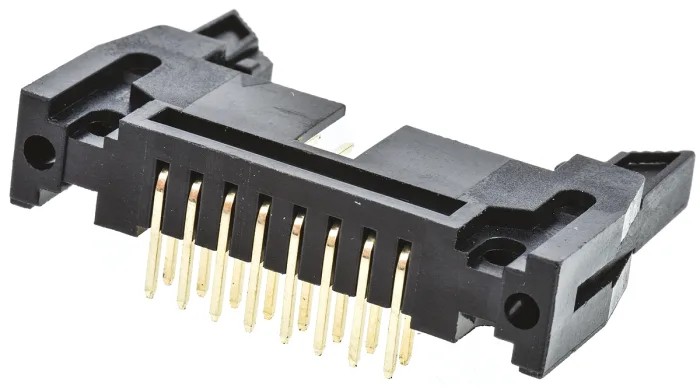

Amphenol Communications Solutions T816 Series Right Angle Through Hole PCB Header, 16 Contacts, 2.54 mm T816116A1R101CEU
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 3A |
| Model | T816116A1R101CEU |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | T816 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 6mm |
| Mating Pin Length | 3.8mm |
Key Features
- Constructed with a Polybutylene Terephthalate (PBT) housing for durability.
- Rated for a current of 3A and voltage of 250V, suitable for board-level connections.
- Shrouded and wire-to-board connector system with through hole mount type.
- Contacts are brass material plated with gold for reliable connectivity.
- Operating temperature ranges from -40°C to 105°C for versatile applications.
- Features male contact gender with a tail pin length of 6 mm and mating pin length of 3.8 mm.
- Termination type is solder ensuring strong mechanical and electrical connections.
Product Description
Amphenol Communications Solutions T816116A1R101CEU is a high-quality right angle through hole PCB header designed for wire-to-board connectivity applications. This PCB header is part of the T816 series featuring a 2.54 mm pitch and 16 contact points arranged in 2 rows, making it ideal for compact and reliable electronic assemblies.
The housing is constructed from black UL 94V-0 rated Polybutylene Terephthalate (PBT), providing excellent flame resistance and mechanical stability. Contacts are crafted from brass with gold flash plating, assuring consistent electrical performance and corrosion resistance.
Rated to carry a current of 3A and operate up to 250V, this PCB Header supports a wide array of electronic applications. Its operating temperature range from -40°C to 105°C allows it to perform reliably under harsh environmental conditions.
The right angle orientation and through hole mounting facilitate secure and precise board placement. With male contact gender and solder termination, this header ensures strong mechanical fastening and reliable electrical connections on the PCB.
This connector does not carry specific certifications but adheres to industrial standards for use in electronic components, power, and connector assemblies. Durable PBT housing with UL 94V-0 flame resistance. Gold plated brass contacts for superior conductivity.
Right angle orientation for convenient PCB layout. Through hole mount enhances mechanical stability. Suitable for industrial electronic and electrical applications. Wide operating temperature range supports various environments.
Compact 2-row, 16-contact design with 2.54 mm pitch.
Suitable for applications in industrial electronics, power supply modules, communication equipment, and general PCB assembly tasks. This product is manufactured in China and supplied in new condition.
Explore more PCB connectors and related components in the Electronics & Electricals category on EnvMart to find complementary parts for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 3A and a voltage of 250V, making it suitable for board-level connections in various electronic applications.
This model features a pitch size of 2.54 mm, which is standard for many PCB applications.
The housing is made from Polybutylene Terephthalate (PBT), while the contacts are crafted from brass and plated with gold for reliable connectivity.
The operating temperature range is from -40°C to 105°C, allowing it to function in a variety of environmental conditions.
This header has 16 contacts arranged in 2 rows, providing a compact design for electronic assemblies.
It uses a solder termination type, ensuring strong mechanical and electrical connections on the PCB.
The orientation of this PCB header is right angle, which facilitates convenient PCB layout and connections.
The tail pin length is 6 mm, which aids in secure mounting on the PCB.
This model is shrouded, which helps prevent misalignment during mating and enhances connection reliability.
It supports a wire-to-board connector system, making it suitable for various electronic applications.
This PCB header is manufactured in China, adhering to industrial standards for electronic components.
The contact gender is male, which is typical for many PCB header applications.
