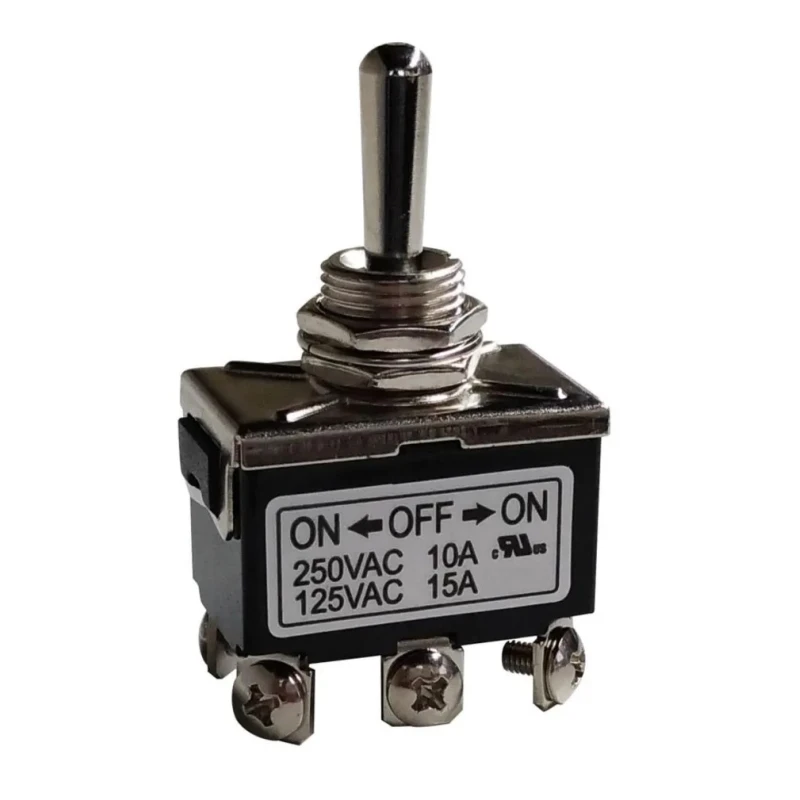

RS PRO DPDT On-Off-On Toggle Switch PCB Mount Screw Terminal 250V AC 10A 206-6984

RS PRO 206-6984 DPDT Toggle Switch is designed for PCB mount applications with screw terminals, offering reliable electrical switching with On-Off-On operation. Rated for 250 V AC voltage and 10 amps contact current, this switch provides double pole double throw contact configuration suitable for controlling circuits requiring polarity reversal or multiple circuit paths.

Manufactured with a brass actuator and aluminium die-casting alloy bushing, the switch body uses nylon 66 combined with silver alloy contacts to ensure long-term durability and excellent conductivity. Its compact dimensions measure 46.8mm in height, 31.78mm in length, and 19.5mm in width, making it ideal for integration into various electrical and electronic devices.

The switch operates reliably within a temperature range from -20°C to 55°C and carries an IP40 rating, protecting against solid foreign objects down to 1mm but not water ingress. It is non-illuminated and has a mechanical life expectancy rated for 10 full cycles. UL, cUL, and RoHS compliant certifications underline its suitability for industrial, telecommunications, aerospace, automotive, instrumentation control, and material handling applications.

Typical industrial uses include reversing motor polarity, switching multiple circuits, and other control solutions requiring robust, PCB-mounted toggle switches. The screw terminal design ensures secure and easy installation onto PCBs.

This Toggle Switch features a Double Pole Double Throw (DPDT) contact configuration for versatile switching. On-Off-On switch operation allows for two active ON positions and a central OFF state. Constructed with a brass actuator and aluminum die-casting alloy bushing to ensure durability.

Designed for PCB mount with screw terminal connections for reliable installation. Operates within a temperature range of -20°C to +55°C, suitable for various environments. IP40 rated providing protection against solid objects larger than 1mm for safe electrical use.

Non-illuminated switch with a mechanical life cycle rated at 10 cycles, suitable for control applications. Compact dimensions: height 46.8mm, length 31.78mm, width 19.5mm. Compliant with UL, cUL, and RoHS standards to ensure quality and safety.
