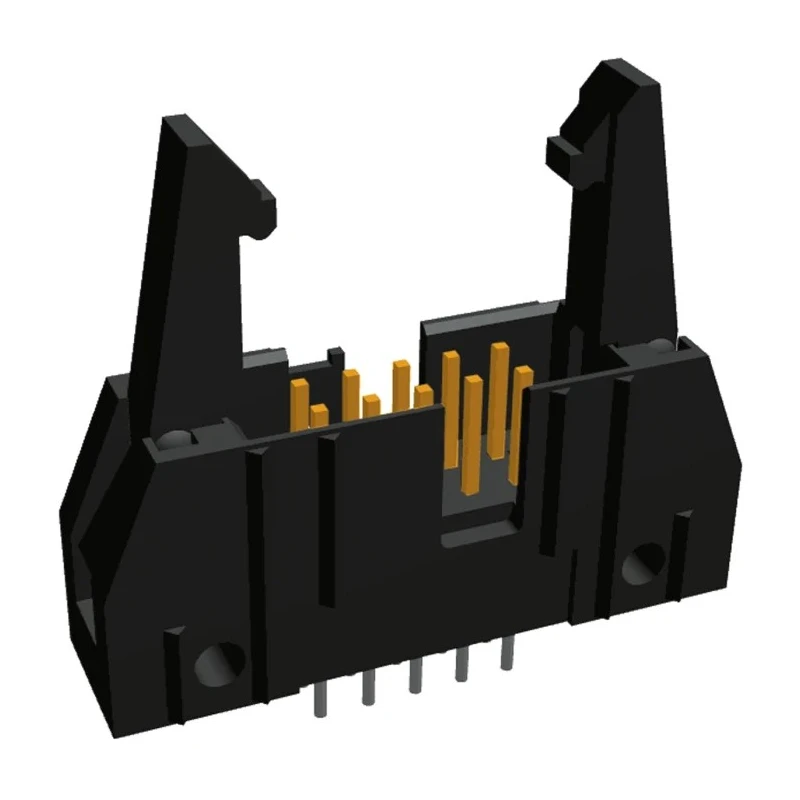

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 5499923-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.79mm |
Key Features
- Supports a current rating of 1A ensuring reliable electrical conduction.
- Constructed with thermoplastic housing providing durability and insulation.
- Features gold-plated brass contacts for excellent conductivity and corrosion resistance.
- Designed with a solder termination type for through-hole mounting on PCB boards.
- Operates reliably between -65°C and 105°C temperature range.
- Includes 2 rows of contacts oriented straight with shrouded housing for protection.
- Tail pin length measures 2.79 mm for secure PCB insertion.
- Compatible with a voltage rating of 250V for various electronic applications.
Product Description
TE Connectivity 5499923-1 AMP-LATCH Series Straight Through Hole PCB Header features a 10-contact, shrouded design with a 2.54 mm pitch and dual-row configuration. Built with brass contacts plated in gold and a thermoplastic housing, it supports currents up to 1A and voltages up to 250V, making it a reliable choice for demanding electronic applications.
This PCB header offers universal ejection style with military, center, and dual polarization to ensure precise mating alignments. The ejector latches provide secure connections with IDC ribbon cable receptacles while facilitating easy removal. Available with long or short latch options, the header accommodates receptacle connectors with or without strain relief.
The product is designed for through-hole mounting, featuring a tail pin length of 2.79 mm to ensure stable solder connections on PCB assemblies. It operates within a broad temperature range of -65°C to 105°C, suitable for harsh industrial environments.
Applications of this PCB header include use in computers, business and medical equipment, storage devices, networking hardware, industrial control systems, household appliances, and electrical testing setups.
Current rating: 1A with reliable contact conductivity. Thermoplastic housing ensures durability and insulation. Gold-plated brass contacts offer corrosion resistance. Shrouded, dual-row straight orientation protects pins.
Through-hole mount type for PCB integration. Tail pin length of 2.79 mm for reliable soldering. Voltage rating of 250V for broad applicability. Universal ejection style AMP-LATCH series for secure mating. Suitable for diverse industrial, medical, and electronic applications.
Temperature range from -65°C up to 105°C for rugged use.
This TE Connectivity AMP-LATCH Series PCB header provides durable and precise wire-to-board connections optimized for professional electronics manufacturing and maintenance needs. Browse our Electronics Components categories for related connectors and PCB Headers to complete your design and assembly projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 1A, ensuring reliable electrical conduction.
The voltage rating for this model is 250V, making it suitable for various electronic applications.
This header features a 2.54 mm pitch and has 10 contacts arranged in a dual-row configuration.
It is constructed with a thermoplastic housing and features gold-plated brass contacts for excellent conductivity and corrosion resistance.
The tail pin length measures 2.79 mm, ensuring stable solder connections on PCB assemblies.
It operates reliably between -65°C and 105°C, making it suitable for harsh industrial environments.
It features a solder termination type, designed specifically for through-hole mounting on PCB boards.
The contacts are oriented straight and are shrouded for protection, which helps in preventing damage during handling.
This PCB header utilizes a wire-to-board connector system, facilitating effective connections in electronic applications.
It is suitable for use in computers, medical equipment, networking hardware, industrial control systems, and household appliances.
The country of origin for this product is India.
It has a thermoplastic housing that provides durability and insulation for the contacts.
