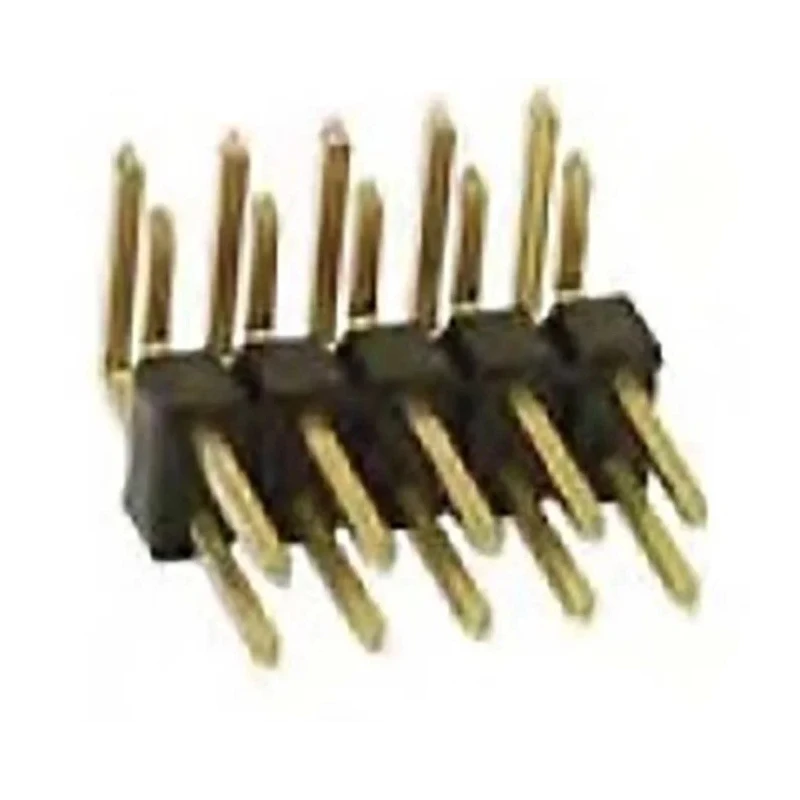

Amphenol Communications Solutions EconoStik Series Right Angle Through Hole Pin Header, 10 Contacts, 2.54 10129382-910004BLF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1500V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 3A |
| Model | 10129382-910004BLF |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | EconoStik |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Mating Pin Length | 8.08mm |
Key Features
- Features right angle orientation for space-efficient PCB design.
- Utilizes a through hole mount type for sturdy board installation.
- Constructed with thermoplastic housing and brass contacts plated with gold.
- Supports a maximum operating temperature of 105°C and minimum of -55°C.
- Unshrouded design with solder termination type and male contact gender.
- Mating pin length measures 8.08 mm ensuring proper connection durability.
- Complies with RoHS standards and is lead-free for environmental safety.
- Designed for use in industrial control, test equipment, metering, POS machines, and surveillance systems.
Product Description
Amphenol Communications Solutions 10129382-910004BLF is a right angle through hole pin header from the EconoStik Series, engineered for high reliability in demanding electronic applications.
This pin header features 10 male brass contacts plated with 1μin gold, mounted in a high-temperature thermoplastic housing. The 2.54 mm pitch and double row configuration allow versatile board-to-board connections, suitable for industrial control systems, test and measurement devices, metering equipment, POS machines, set-top boxes, surveillance systems, and vending machines.
The connector supports 3A current at up to 1500V, functioning reliably from temperatures as low as -55°C to as high as 105°C. The solder termination ensures secure electrical connections through a through hole mount. The mating pin length of 8.08 mm provides robust mechanical engagement tested up to 50 mating cycles.
Key technical highlights include an unshrouded design for easy access, customized mating and tail lengths, and availability of custom polarization options. The product is RoHS compliant and lead-free, aligning with environmental requirements.
Right angle orientation optimizes PCB layout in compact assemblies. Thermoplastic housing enhances heat resistance and durability. Gold-plated brass contacts ensure consistent conductivity and wear resistance. Designed to operate reliably over a wide temperature range.
Suitable for applications in industrial, commercial, and communications equipment. Through hole mounting provides excellent mechanical strength for vibrations and shocks. Available in customized configurations to match specific design needs.
Compliant with RoHS standards for toxic substance restrictions.
This pin header is an integral component for secure and durable electronic interconnections across diverse industries, helping ensure reliable performance in critical applications. Explore more in the PCB Headers category at EnvMart for a complete selection of electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header supports a maximum voltage rating of 1500V.
It has a current rating of 3A.
The pitch size of the contacts is 2.54 mm.
The operating temperature range is from -55°C to 105°C.
This model features 10 male contacts.
It utilizes a through hole mount type for installation.
The housing is made of thermoplastic, and the contacts are brass plated with gold.
The mating pin length measures 8.08 mm.
Yes, it complies with RoHS standards and is lead-free.
It features a solder termination type.
It is designed for use in industrial control, test equipment, metering, POS machines, and surveillance systems.
The pin header has a right angle orientation for space-efficient PCB design.
