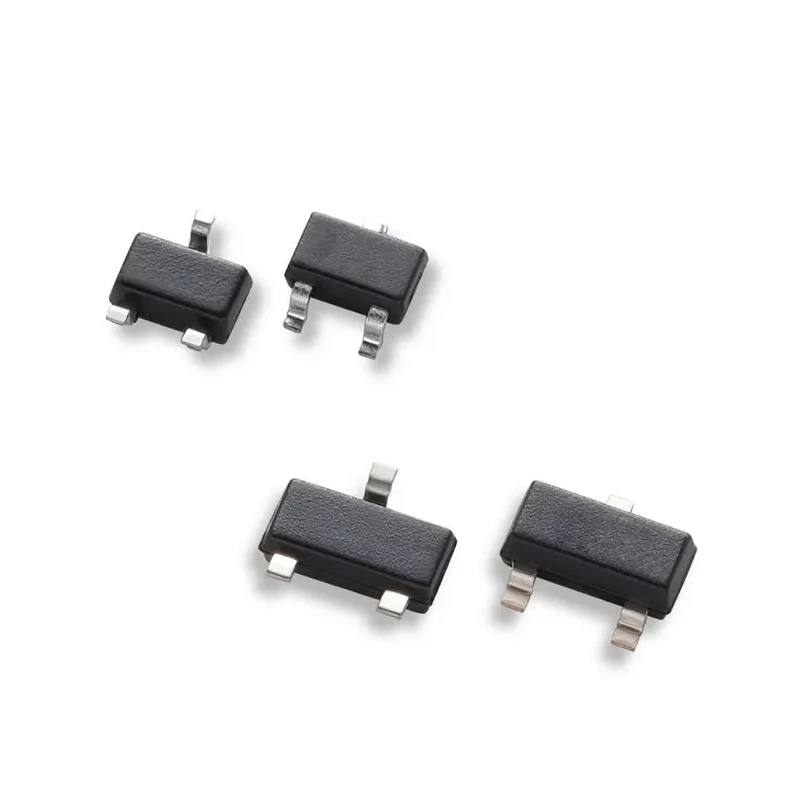

Littelfuse 3-Element Uni-Directional TVS Diode Array 3-Pin SC-70 AQ3102-02JTG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Littelfuse |
| Height | 1mm |
| Length | 2.95mm |
| Model | AQ3102-02JTG |
| Width | 2.4mm |
| Mount Type | Surface |
| Series | AQ3102 |
| Maximum Operating Temperature | 150°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Number of Elements per Chip | 3 |
| Clamping Voltage VC | 16V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.5V |
| Maximum Reverse Stand-off Voltage Vwm | 6V |
| Maximum Peak Pulse Current Ippm | 8A |
| Maximum Reverse Leakage Current | 500nA |
Key Features
- This diode array offers a minimum breakdown voltage of 6.5V.
- Designed for surface mounting in the compact SC-70 package type.
- Maximum reverse stand-off voltage is 6V with a clamping voltage of 16V for effective transient voltage suppression.
- It has a maximum peak pulse current rating of 8 amperes suitable for protecting against high transient surges.
- The diode array contains three elements per chip ensuring reliable electrostatic discharge protection.
- Operating temperature ranges from -40°C to 150°C for rugged automotive environments.
- Low leakage current of 500nA minimizes power loss in circuits.
- Compliance with automotive standard AEC-Q101 enhances reliability and quality assurance.
Product Description
The Littelfuse AQ3102-02JTG is a 3-element Uni-Directional Transient Voltage Suppression (TVS) Diode Array designed specifically to protect automotive electronic equipment from destructive electrostatic discharges (ESD). Packaged in a compact 3-pin SC-70 surface mount configuration, it offers excellent transient voltage protection with minimal footprint.
This diode array supports a minimum breakdown voltage (Vbr) of 6.5V and a maximum reverse stand-off voltage (Vwm) of 6V. It clamps to 16V at a maximum peak pulse current (Ippm) of 8A, ensuring robust suppression of transient voltage spikes in automotive environments.
The device is qualified to AEC-Q101 automotive standards for enhanced quality and reliability under harsh operating conditions, with a temperature range spanning from -40°C to 150°C. It features extremely low leakage current of around 500nA and low capacitance of about 1pF, making it suitable for sensitive electronic circuits and signal lines.
Constructed using halogen-free and lead-free materials, the AQ3102-02JTG aligns with environmental and regulatory standards including RoHS compliance. The diode array contains three elements per chip, ensuring comprehensive protection in a highly compact package.
This product is ideal for use in automotive electronics, industrial equipment, instrumentation, and other applications requiring reliable overvoltage and ESD protection. Its surface mount design facilitates easy integration into modern PCBs, aiding effective protection without compromising board space.
This diode array provides a minimum breakdown voltage of 6.5V for effective clamping. Surface mount SC-70 package supports compact PCB layouts. Maximum reverse stand-off voltage of 6V with 16V clamping voltage for transient surge protection.
High peak pulse current of 8A for transient event protection. Three elements per chip ensure full coverage of vulnerable lines. Wide operating temperature range from -40°C to 150°C suits automotive usage. Low leakage current and capacitance minimizes impact on circuit performance.
AEC-Q101 qualification ensures automotive grade reliability. Halogen-free and RoHS-compliant for environmental safety. Ideal for automotive, industrial, and precision electronics protection. Explore more semiconductor and TVS diode solutions in the Electronics & Electricals category at EnvMart for reliable voltage protection components.
Explore more products in our TVS Diode Array category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of this model is 6.5V.
The maximum reverse stand-off voltage is 6V.
The clamping voltage is 16V at a maximum peak pulse current of 8A.
It has a maximum peak pulse current rating of 8 amperes.
This diode array operates within a temperature range of -40°C to 150°C.
This model contains three elements per chip.
It is packaged in a compact 3-pin SC-70 surface mount configuration.
The maximum reverse leakage current is 500nA.
Yes, it is qualified to the AEC-Q101 automotive standard.
The height of this model is 1mm.
The width is 2.4mm and the length is 2.95mm.
It is suitable for automotive electronics, industrial equipment, and instrumentation requiring reliable overvoltage and ESD protection.
