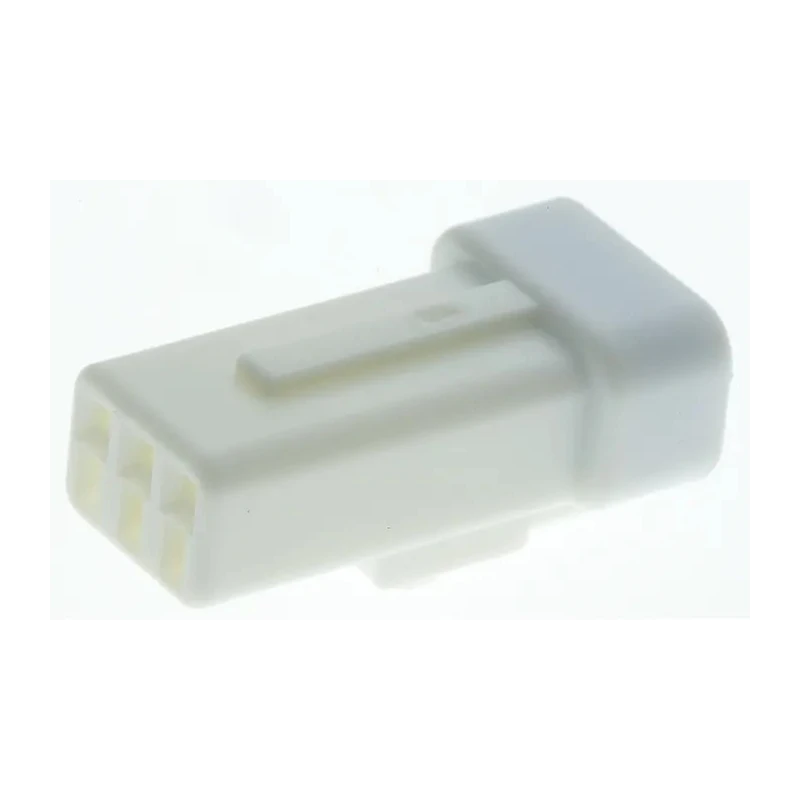

JST JWPF Male Connector Housing 2 mm Pitch 3 Way 1 Row Straight 03R-JWPF-VSLE-S
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | JST |
| Orientation | Straight |
| Length | 8.7mm |
| Model | 03R-JWPF-VSLE-S |
| Width | 5.5mm |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | JWPF |
| Number of Rows | 1 |
| Pitch | 2mm |
| For Use With | JWPF Series Receptacle Connector |
| Number of Contacts | 3 |
| Connector Gender | Male |
| JST, JWPF Female Empty Socket Housing, 2mm Pitch, 3 Way, 1 RowBrand | JST |
Key Features
- The housing provides IP67 waterproof protection with a solid rubber seal on the wire side.
- Compact and lightweight design ideal for small applications.
- Constructed from durable polybutylene terephthalate material.
- Designed for use with JWPF series receptacle connectors.
- Spring action housing locks ensure secure mating and contact retention.
- Applications include automotive, appliances, rail industry, factory automation, and lighting systems.
Product Description
JST 03R-JWPF-VSLE-S male connector housing is a 2 mm pitch, 3 way, 1 row straight connector used primarily for cable mount applications in various industries. Constructed from polybutylene terephthalate, it offers robust durability and compact size making it suitable for tight spaces.

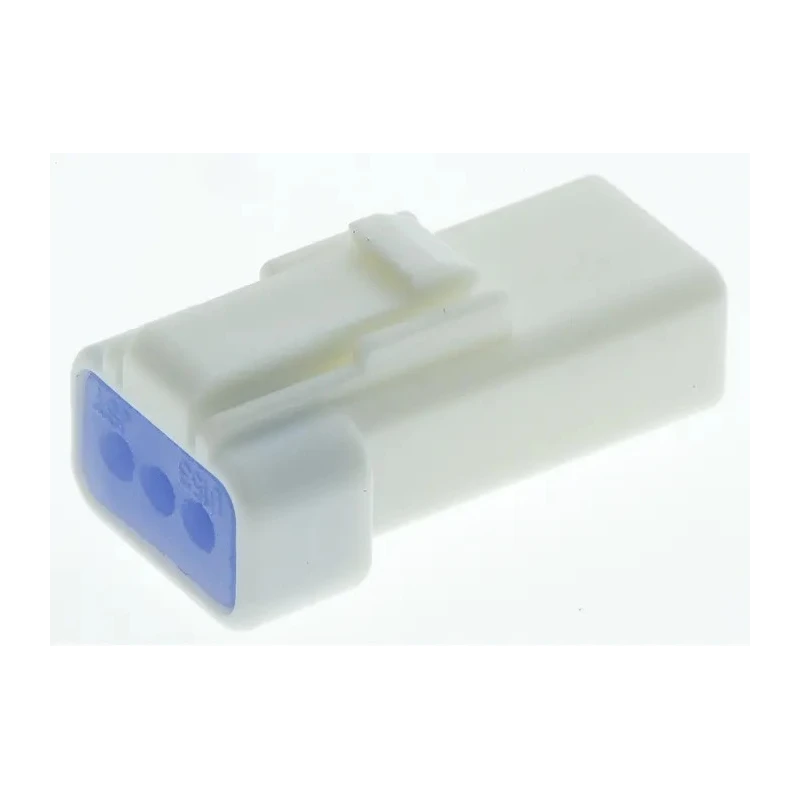

This housing features a solid rubber seal at the wire entry side providing IP67-rated waterproof protection, making it resistant to moisture, dust, and dirt ingress. Its inner housing lock and spring action terminal locks provide secure mechanical and electrical connections.
The JWPF series housings are widely utilized in automotive sectors for light cluster units and door mirror controls, in appliances such as refrigeration and washing machines, and in rail industry applications for lighting and low current power distribution. These connectors are reliable for factory automation and general industrial lighting.
Key features include a 2.00 mm pitch spacing, 3 contact points arranged in a single row, and a straight orientation optimized for wire-to-wire connection. The housing dimensions are 8.7 mm in length and 5.5 mm in width.
Materials consist of polybutylene terephthalate ensuring strength and stability under industrial conditions. The housing is made in Malaysia, reflecting quality manufacturing standards.
The connector housing includes a waterproof facial seal to protect internal contacts. Compact design enables use in space-constrained applications. Provides secure terminal retention through spring lock mechanism. Compatible with JWPF series receptacle connectors for system integration.
Applicable across automotive, appliance, rail, and industrial lighting sectors.
JST's connector housings deliver reliable electrical performance and environmental resistance suitable for demanding industrial environments. Browse EnvMart's Electronics Components category for a wide array of connector housings and related products.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector housing is 2 mm.
This housing has 3 contact points arranged in a single row.
The housing measures 8.7 mm in length and 5.5 mm in width.
It is constructed from polybutylene terephthalate, which provides durability and stability.
It is suitable for applications in the automotive sector, appliances, rail industry, factory automation, and lighting systems.
Yes, it features a solid rubber seal that provides IP67-rated waterproof protection against moisture, dust, and dirt ingress.
The orientation of this connector housing is straight, optimized for wire-to-wire connections.
It is specifically designed for use with JWPF series receptacle connectors for system integration.
It features spring action housing locks that ensure secure mating and contact retention.
This connector housing is manufactured in Malaysia.
The mount type for this housing is cable mount, making it suitable for various applications.
It provides secure mechanical and electrical connections through its inner housing lock and spring action terminal locks.
