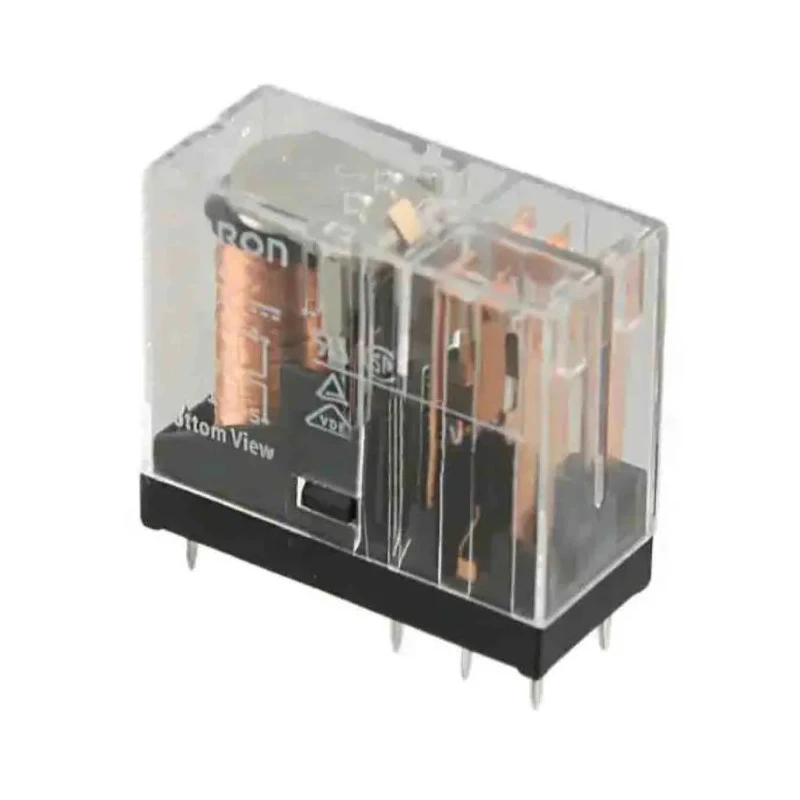

Omron PCB Power Relay 110V DC Coil 5A Switching Current DPDT G2R-2 DC110
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 29.5mm |
| Length | 29mm |
| Model | G2R-2 DC110 |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 22.9kΩ |
| Coil Voltage | 110V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 530mW |
Key Features
- This relay operates efficiently with a coil voltage of 110V DC and a coil resistance of 22.9kΩ.
- It supports switching DC voltage up to 125V and AC voltage up to 380V for versatile applications.
- The contact configuration is DPDT, with silver alloy contacts ensuring reliable conductivity and low contact resistance of 50mΩ.
- Designed for a wide operating temperature range from -40°C to 70°C, ensuring durability under varied conditions.
- The relay's compact dimensions include a height of 29.5mm, length of 29mm, and width of 13mm, making it suitable for PCB integration.
- It features a coil power consumption of 530mW providing energy-efficient operation.
- The Omron G2R series complies with RoHS standards for environmental safety and quality assurance.
- Manufactured in Indonesia with a high minimum electrical durability of 100,000 operations for long-lasting performance.
Product Description
Omron G2R-2 DC110 PCB Power Relay with a 110V DC coil delivers 5A switching current and features a DPDT contact configuration ideal for PCB mounting in electrical and automation systems. It is part of the well-established G2R series providing reliable power relay operation for various industrial applications.
It operates efficiently within a coil resistance of 22.9kΩ and a coil power consumption of 530mW, ensuring low power usage. The relay supports switching voltages of up to 125V DC and 380V AC, making it versatile for control and signal conditioning in power distribution and automation panels.
The contact assembly uses silver alloy material, providing excellent conductivity and low contact resistance of 50mΩ. This ensures minimal power loss and reliable switch operation. It is designed to withstand harsh environments, with a wide operating temperature range from -40°C to 70°C and high electrical durability of a minimum 100,000 operations.
Its compact footprint, measuring 29.5mm in height, 29mm in length, and 13mm in width, allows seamless PCB integration in dense electronic assemblies. The relay features PCB pin terminals for secure mounting and electrical connection.
The Omron G2R-2 DC110 complies with RoHS environmental standards, supporting sustainable and environmentally friendly product manufacturing. Originating from Indonesia, it stands as a quality component for industrial, laboratory, manufacturing, and automation applications.
This relay operates with a coil voltage of 110V dc and resistance of 22.9kΩ. 5A switching current with DPDT contact configuration supports versatile switching needs. Switching voltages supported: 125V dc and 380V ac ensure wide application compatibility.
Operating temperature from -40°C to 70°C guarantees robustness in varied environments. Compact PCB mounting with pin terminals for stable and easy installation. Silver alloy contacts and 50mΩ contact resistance provide reliable electrical performance.
Energy-efficient coil power at 530mW minimizes power consumption. RoHS compliant for environmental safety and sustainable use. Indonesian manufacture ensures globally recognized quality standards. Explore quality Power Relays like Omron G2R-2 DC110 within EnvMart's comprehensive electronics and electricals range.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 110V DC.
It supports a maximum switching current of 5A.
This relay has a height of 29.5mm, a length of 29mm, and a width of 13mm.
The contact configuration is DPDT (Double Pole Double Throw).
It can switch DC voltage up to 125V and AC voltage up to 380V.
It uses silver alloy contacts, which provide reliable conductivity.
The coil resistance is 22.9kΩ.
The operating temperature range is from -40°C to 70°C.
The contact resistance is 50mΩ, ensuring minimal power loss.
The coil power consumption is 530mW.
Yes, it complies with RoHS standards for environmental safety.
It is designed for PCB mounting with PCB pin terminals for secure installation.
