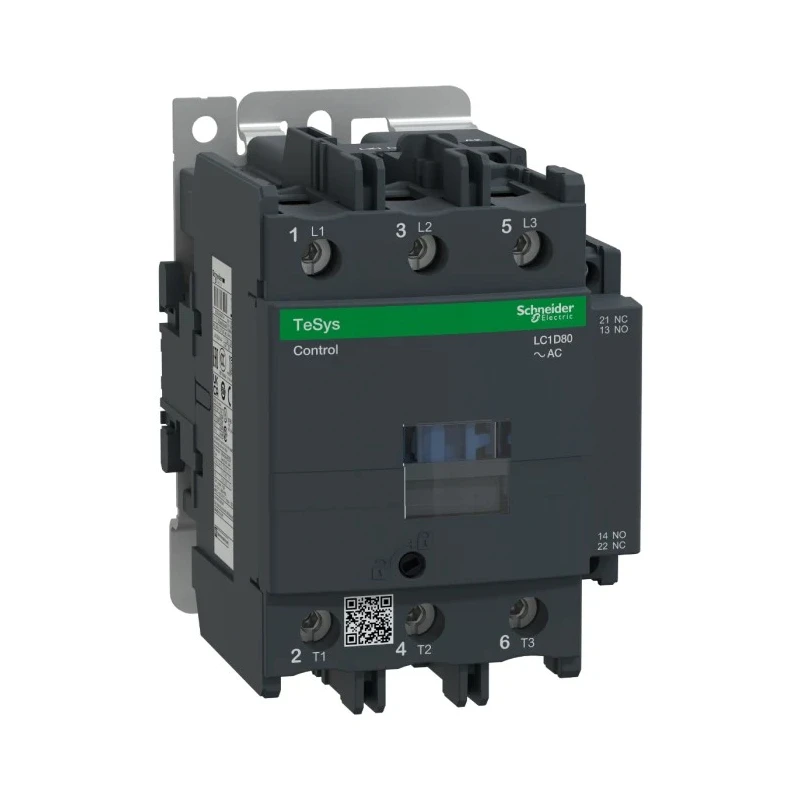

Schneider Electric TeSyS D Contactor 3-Pole 80A 37kW 110V AC Coil 120V Control LC1D80G7

Schneider Electric LC1D80G7 TeSyS D Contactor is a robust and versatile 3-pole device engineered for motor control and resistive load applications. It features a 110V AC coil with a control voltage of 120V AC and supports operational currents up to 80A facilitating power ratings of 37kW at 400V. The contactor is built to handle contact voltages up to 600V AC with a configuration of 3 normally open contacts ensuring efficient switching and control.

Designed for industrial automation, the contactor mounts on DIN rails or by screw fixing to optimize installation flexibility in control panels. Its compact build with dimensions of 127mm width, 85mm length, and 125mm depth offers space-saving integration. Screw clamp terminals ease wiring tasks for both load and auxiliary contacts.

The contactor includes two auxiliary contacts, one normally open and one normally closed, providing additional control options with the NC contact mirror certified for reliability. Operating temperature ranges from -40°C to 70°C making it suitable for harsh and demanding industrial environments. It is rated for motor control applications including up to 25HP at 200-208VAC, 30HP at 240VAC, and 60HP at both 480VAC and 600VAC three-phase systems.

The device is certified to international standards IEC, UL, CSA, CCC, and EAC and meets RoHS and Reach directives, underscoring its safety and environmental compliance. The product weighs approximately 1.6 kg (3.51 lbs) and supports high switching rates up to 3600 cycles per hour, providing high durability and long service life.

Schneider Electric provides a comprehensive accessory line to support diverse application requirements for this contactor. It is an ideal choice for industrial, manufacturing, automation, and motor starter applications requiring precise and reliable electrical switching.

Features a 3-pole contactor configuration with 3 normally open contacts for reliable operation. Operates with a coil voltage of 110V AC and a control circuit voltage of 120V AC. Provides a high contact voltage rating of 600V AC suitable for heavy industrial loads.

Mounts securely on DIN rail or by screw fixing for flexible installation. Includes 2 auxiliary contacts: 1 normally open and 1 normally closed, with NC mirror certification. Equipped with screw clamp terminals simplifying wiring and maintenance.

Compact dimensions of 127mm width, 85mm length, and 125mm depth optimize panel space. Durable design supports operating temperatures from -40°C to +70°C ensuring reliability in harsh environments. Certified to multiple international standards including IEC, UL, CSA, CCC, EAC and RoHS compliant.

Extensively used in motor control and resistive load applications in industrial automation. Explore additional Schneider Electric Contactors and related automation equipment at EnvMart for your industrial control needs.
