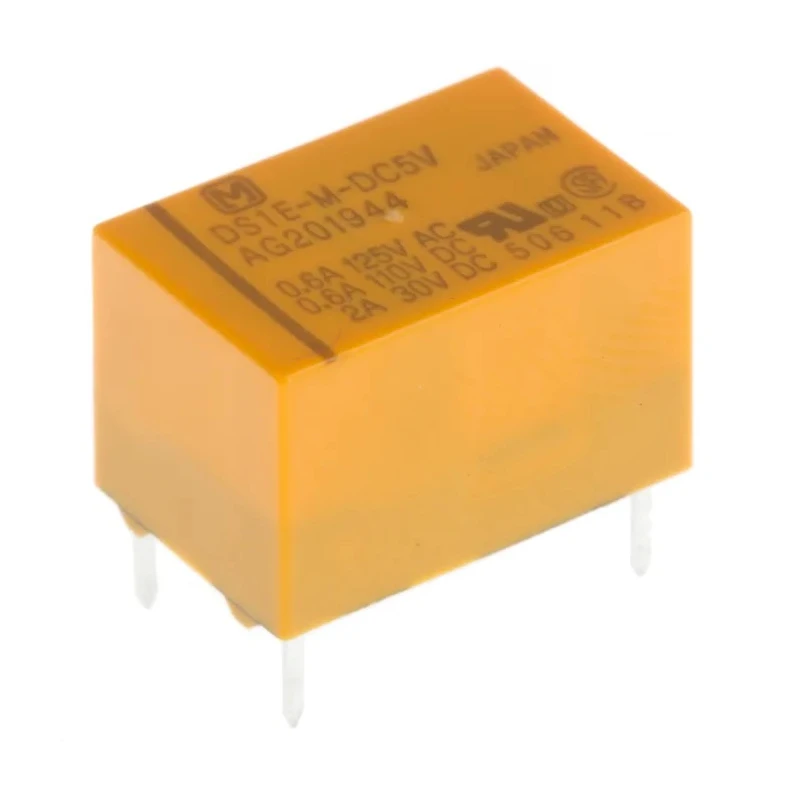

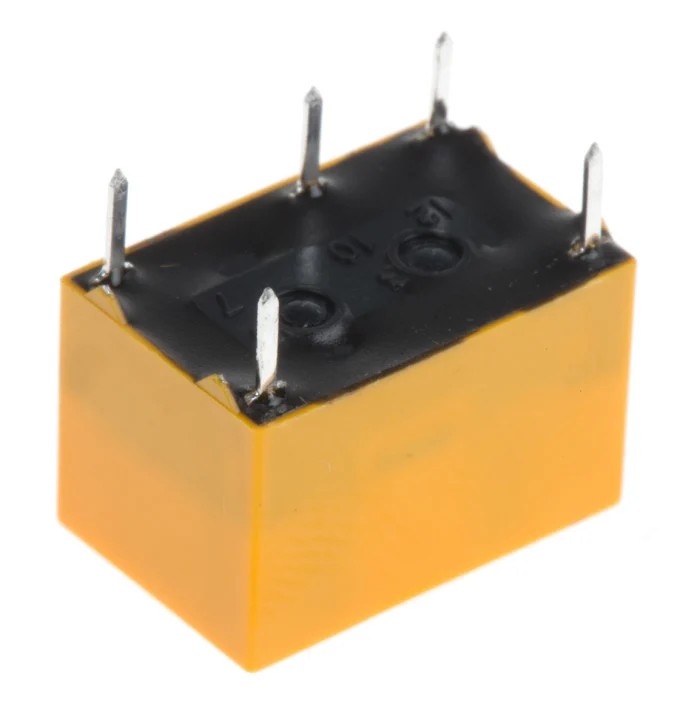

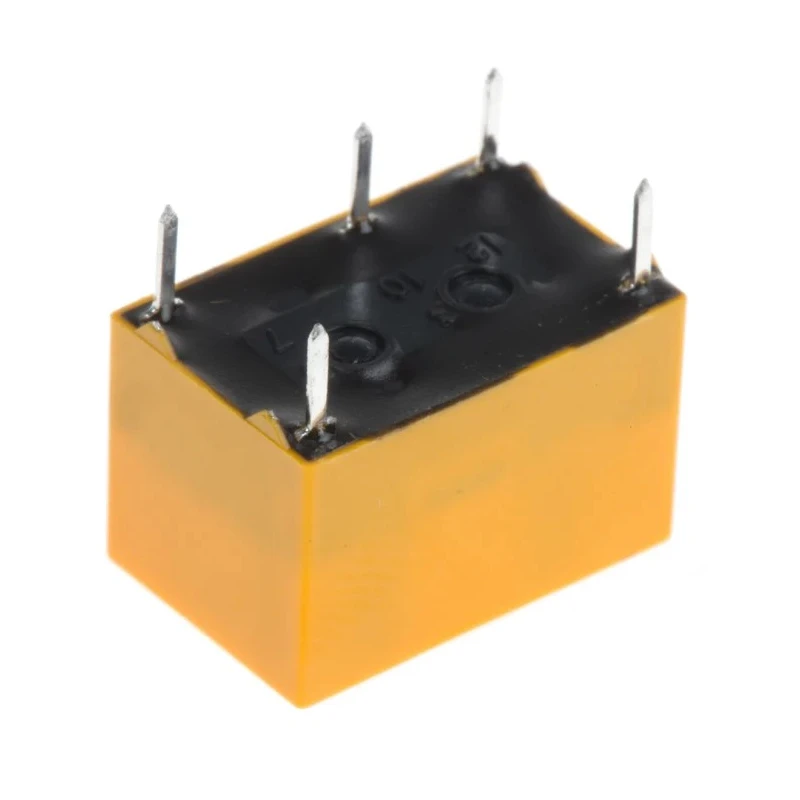

Panasonic Surface Signal Relay, 5V DC Coil, 3A Switching Current, SPST Contact Configuration DS1E-M-DC5V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 9.4mm |
| Length | 20mm |
| Model | DS1E-M-DC5V |
| Width | 9.9mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | DS |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 62.5Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- Features a surface mount type with PCB terminals for easy installation.
- Operates efficiently within temperature range of -40°C to 70°C.
- Switching voltage capacity of up to 250V AC and 220V DC.
- Gold plated contact material ensures superior conductivity and durability.
- Coil resistance of 62.5 ohms with coil power at 400mW for low power consumption.
- Designed to meet RoHS standards for environmental compliance.
- Manufactured in Japan ensuring high quality and reliability.
Product Description
Panasonic DS1E-M-DC5V Surface Signal Relay is a high-quality signal relay designed for electronic applications requiring reliable switching. It features a 5V DC coil voltage and can handle a switching current of 3A with an SPST contact configuration, making it ideal for various electronic control circuits.
The relay is designed for surface mounting with PCB terminal types, enabling easy and secure installation on printed circuit boards. It operates reliably across a wide temperature range from -40°C to 70°C, ensuring performance in diverse environments.
This relay supports switching voltages of up to 250V AC and 220V DC, enabling it to manage a variety of load applications. The contact material is gold plated to enhance conductivity and resist corrosion, thereby extending relay life.
Its compact dimensions - 20mm length, 9.9mm width, and 9.4mm height - facilitate integration into space-constrained circuits. The coil resistance is 62.5 ohms with a coil power consumption of only 400mW, supporting energy-efficient designs.
The DS series relay adheres to RoHS standards, certifying its compliance with environmental regulations. Manufactured in Japan, this Panasonic relay promises precision engineering and consistent quality.
This Signal Relay is widely used in electronics, automation systems, control panels, and industrial applications where dependable electronic signal switching is required. Features a surface mount type with PCB terminals for easy installation.
Operates efficiently within temperature range of -40°C to 70°C. Switching voltage capacity of up to 250V AC and 220V DC. Gold plated contact material ensures superior conductivity and durability. Compact dimensions: 20mm length, 9.9mm width, and 9.4mm height.
Coil resistance of 62.5 ohms with coil power at 400mW for low power consumption. Designed to meet RoHS standards for environmental compliance. Manufactured in Japan ensuring high quality and reliability. Explore other reliable industrial relays and components in the Electronics & Electricals category at EnvMart for your automation and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 5V DC.
It can handle a maximum switching current of 3A.
The dimensions are 20mm in length, 9.9mm in width, and 9.4mm in height.
The contact configuration of this model is SPST (Single Pole Single Throw).
It operates efficiently within a temperature range of -40°C to 70°C.
The coil resistance is 62.5 ohms.
This relay features PCB terminals for easy installation.
The maximum switching voltage is 250V AC and 220V DC.
The contact material is gold plated, enhancing conductivity and durability.
Yes, it is designed to meet RoHS standards for environmental compliance.
It is manufactured in Japan, ensuring high quality and reliability.
The coil power consumption is 400mW.
