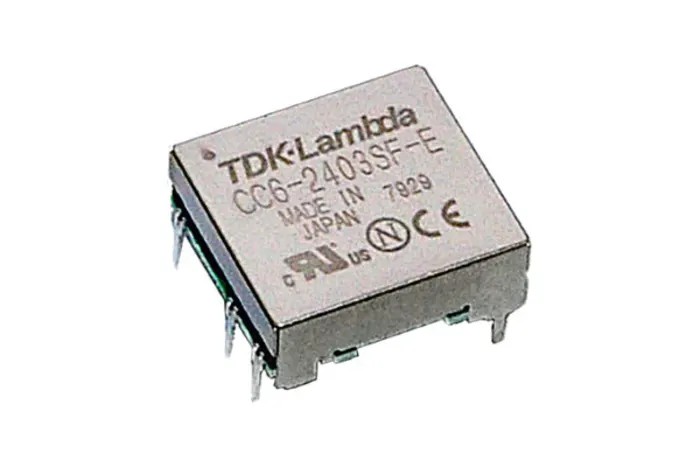

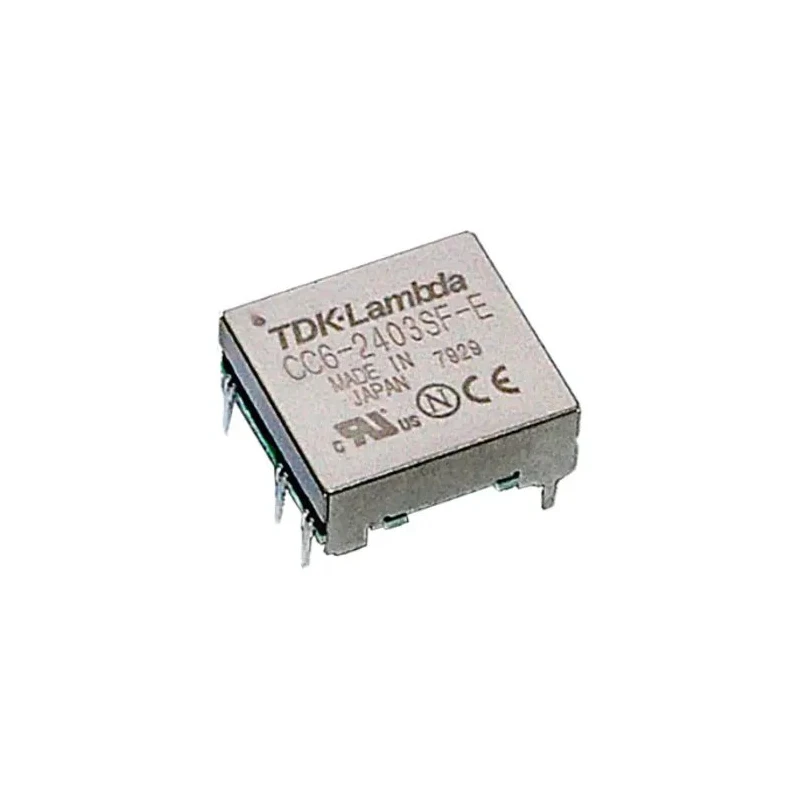

TDK-Lambda CC-E Series DC/DC Converter, 12V DC Output, 250mA, 9V DC Input, 4.5V Input, 6W, Surface Mount, 85°C CC6-0512DR-E

TDK-Lambda CC6-0512DR-E is an ultra-compact DC/DC converter from the CC-E series designed for reliable voltage conversion in electronic devices. This converter accepts input voltages from 4.5V to 9V DC and delivers a regulated 12V DC output at 250mA maximum current, with a total output power of 6W. The device features a surface mount package optimized for applications demanding small footprint and low profile.

It operates efficiently with an energy conversion efficiency of approximately 82%, reducing heat generation and power loss. The isolation voltage of 500V effectively separates input and output circuits, enhancing electrical safety in sensitive equipment. Its operating temperature range from -40°C to +85°C ensures suitability in a wide array of industrial, telecommunications, and consumer electronics environments.

Featuring a 7-pin surface mount package with dimensions of 22.86mm (length) x 22.8mm (width) x 21.1mm (depth), it integrates seamlessly onto printed circuit boards, supporting compact device designs. The converter’s output voltage adjustment range of 3% allows fine-tuning for specific applications.

These DC/DC converters are essential components for devices requiring voltage step-up/down and electrical isolation within complex circuits. Typical use cases include telecommunication systems, industrial controllers, consumer electronics, and embedded systems needing reliable power conversion and isolation.

Compact surface mount design suitable for space-constrained applications. Wide operating temperature range from -40°C to 85°C ensures reliability under harsh environments. High isolation voltage of 500V improves safety by isolating input and output circuits.

Dual output voltage capability with output voltage adjustment of 3%. Efficient energy conversion with 82% efficiency to minimize power loss. Ideal for telecommunication, industrial, and consumer electronic equipment. Low profile package dimensions of 22.86mm length, 22.8mm width, and 21.1mm depth.

7-pin surface mount package enables easy PCB integration. Japan origin ensures high manufacturing quality and reliability. Backed by a 5-year warranty for long-term performance assurance. Choose EnvMart for sourcing high-quality DC/DC Converters like the TDK-Lambda CC6-0512DR-E to ensure optimal performance and reliability in your electronic applications.
