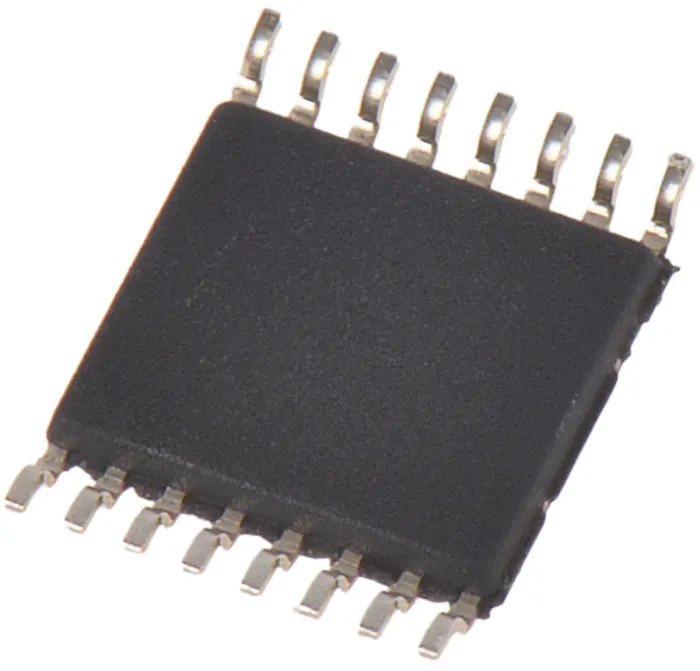

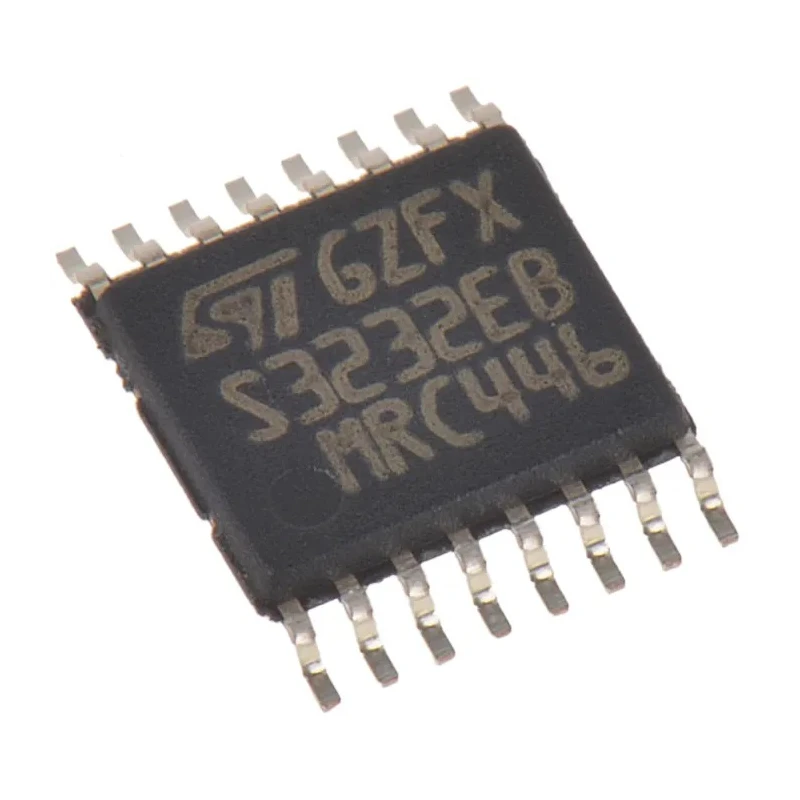

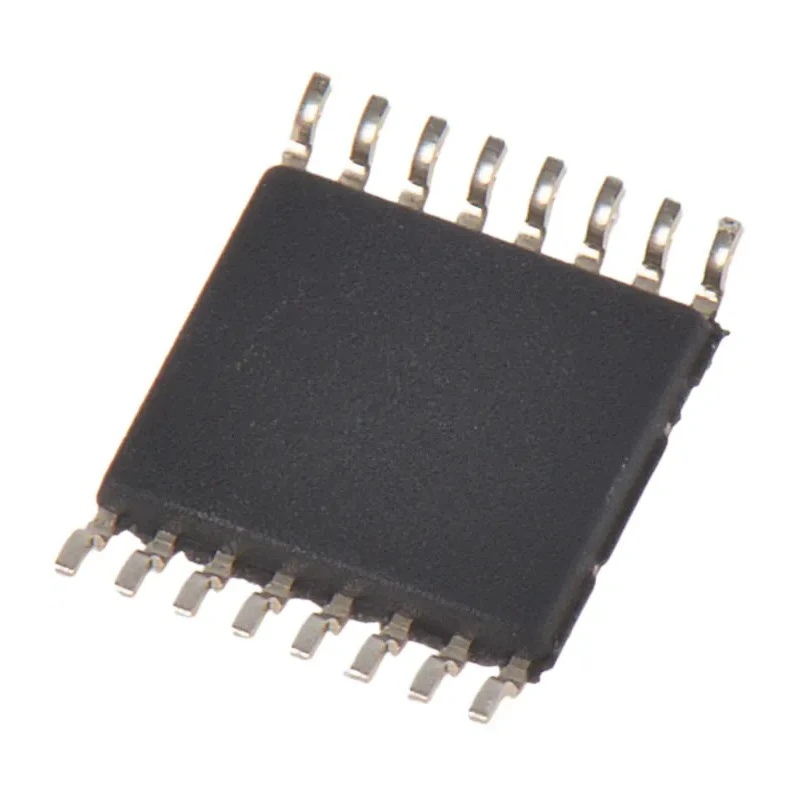

STMicroelectronics 2-Channel Line Transceiver RS232 CMOS Logic Family 3-6V Supply TSSOP 16-Pin ST3232EBTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | ST3232EBTR |
| Width | 6.5mm |
| Mount Type | Surface |
| Output type | RS232 |
| Series | ST3232EB/ST3232EC |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| IC Type | Line Transceiver IC |
| Number Of Channels | 2 |
| Standards/Approvals | EIA/TIA-232, IEC 1000-4-2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 6V |
| Logic Family | CMOS |
| Logic Function | Transceiver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -1mA |
| Maximum Propagation Delay Time @ CL | 0.15μs |
| Supply Current | 1mA |
| Maximum Low Level Output Current | 1.6mA |
Key Features
- Operates with a supply voltage from 3V to 6V.
- Supports single-ended input and RS232 output types.
- Maximum propagation delay time of 0.15 microseconds.
- Compact 16-pin TSSOP surface mount package measuring 5.1mm x 6.5mm x 1.2mm.
- Wide operating temperature range from -40°C to 85°C.
- Meets EIA/TIA-232 and IEC 1000-4-2 standards for RS232 and ESD protection.
- Low supply current of 1mA for efficient power usage.
- Maximum low level output current of 1.6mA; high level output current of -1mA.
Product Description
STMicroelectronics ST3232EBTR is a high-performance 2-channel line transceiver IC tailored for RS232 communication protocol, packaged in a compact 16-pin Thin Shrink Small Outline Package (TSSOP). Utilizing CMOS technology, it operates efficiently over a supply voltage range of 3V to 6V, making it compatible with a variety of digital logic levels.
The device features single-ended input and RS232 compatible output to enable robust serial communication interfaces. With a minimal maximum propagation delay time of 0.15 microseconds, the ST3232EBTR ensures fast and reliable signal transmission suitable for demanding industrial and embedded applications.
It supports a wide operating temperature range from -40°C to 85°C, which ensures dependable performance under harsh environmental conditions commonly found in industrial electronic equipment.
The surface mount TSSOP package measures 5.1 mm in length, 6.5 mm in width, and 1.2 mm in height, providing a small form factor suitable for space-constrained circuit designs. Designed in compliance with EIA/TIA-232 and IEC 1000-4-2 standards, it adheres to industry requirements for serial communication interface and electrostatic discharge protection.
Operates on 3V to 6V supply voltage with low supply current draw of 1mA. Dual communication channels for simultaneous bidirectional data transmission. Surface mount package suitable for automated PCB assembly. Maximum low level output current of 1.6mA and high level output current of -1mA.
Robust interfaces for industrial, electronic components, and embedded system applications. Compact TSSOP 16-pin package with minimal height for efficient hardware integration.
This line transceiver IC is ideal in industrial controls, computing, telecommunications equipment, and measurement instruments requiring reliable RS232 standard serial data communication. Leveraging STMicroelectronics’ proven CMOS technology, the ST3232EBTR offers a trusted solution for electronic interface conversion needs.
Explore EnvMart’s extensive selections in Line Interface ICs from top brands including STMicroelectronics for your industrial electronic requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a supply voltage range from 3V to 6V.
The maximum propagation delay time is 0.15 microseconds.
The TSSOP package measures 5.1 mm in length, 6.5 mm in width, and 1.2 mm in height.
It supports single-ended input and RS232 output types.
It has a wide operating temperature range from -40°C to 85°C.
The supply current is low at 1mA, allowing for efficient power usage.
This model features 2 channels for simultaneous bidirectional data transmission.
It meets EIA/TIA-232 and IEC 1000-4-2 standards for RS232 and ESD protection.
The maximum low level output current is 1.6mA.
The maximum high level output current is -1mA.
It is designed for surface mount applications.
This model utilizes CMOS logic family technology.
