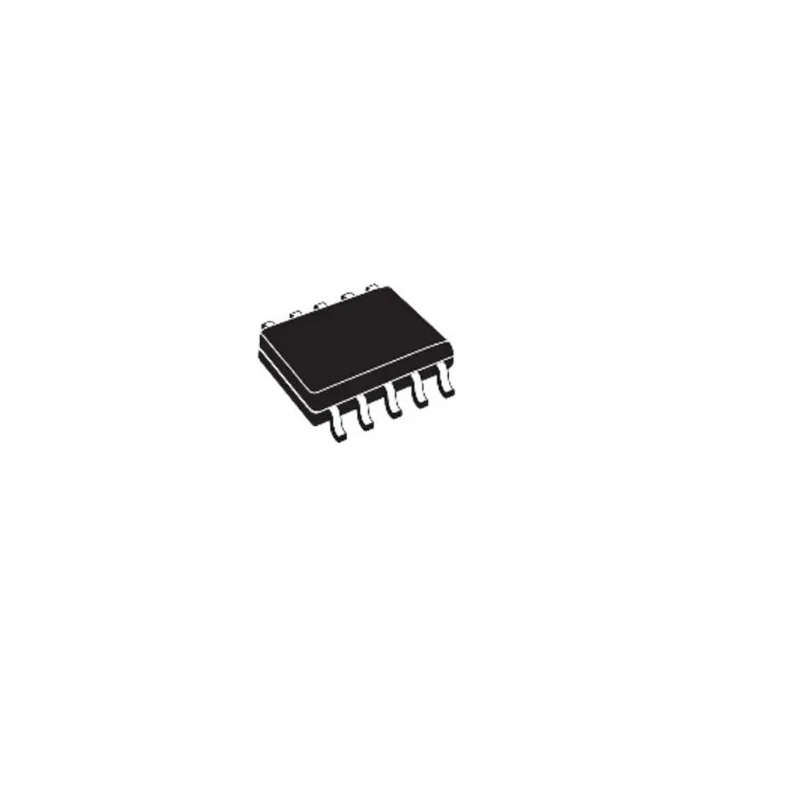

STMicroelectronics High Voltage Switcher 252 mA 5V 10-Pin SSOP VIPER012BHSTR
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Switcher 252 mA, 5V 10-Pin, SSOP RS Stock No |
| Brand | STMicroelectronics |
| Height | 1.5mm |
| Length | 5mm |
| Model | VIPER012BHSTR |
| Width | 4mm |
| Output Power | 8.6mW |
| Mount Type | Surface |
| Maximum Duty Cycle | 80% |
| Series | VIPER01 |
| Topology | Flyback |
| Maximum Operating Temperature | 150°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 120kHz |
| Maximum Input Voltage | 30V |
| Maximum Output Current | 252mA |
| Maximum Output Voltage | 5V |
| Minimum Input Voltage | 4.5V |
| Pin Count | 10 |
| Supply Current | 1.25mA |
Key Features
- Integrates an 800 V avalanche-rugged power MOSFET supporting extended input voltage range.
- Operates with PWM current mode control for energy-saving performance.
- Designed for buck, flyback, and buck-boost converter topologies.
- Features pulse-skip protection to prevent flux runaway and built-in thermal shutdown.
- Supports soft-start functionality to ensure system reliability during power-up.
- Compact SSOP package dimensions of 5mm length, 4mm width, and 1.5mm height.
- Wide operating temperature range from -40°C to 150°C suitable for harsh environments.
- Switching frequency of 120 kHz for efficient energy management.
Product Description
STMicroelectronics VIPER012BHSTR High Voltage Switcher is an advanced, energy-saving off-line converter integrating an 800 V avalanche-rugged power MOSFET with PWM current mode control. This design efficiently supports power conversion topologies such as buck, flyback, and buck-boost converters, making it ideal for industrial, electronics manufacturing, and power management applications.
The device's power MOSFET with an 800 V breakdown voltage extends the input voltage range and reduces the size of necessary snubber circuits. It achieves low power consumption through pulse frequency modulation, especially under light loads, meeting stringent energy-saving standards.
Additional features include pulse-skip protection to prevent flux runaway, an embedded thermal shutdown to safeguard against overheating, soft-start to improve reliability, and integrated high-voltage start-up, sense-FET, error amplifier, and oscillator with jitter for optimized performance.
The compact 10-pin SSOP package measures 5 mm by 4 mm by 1.5 mm, suitable for surface mounting in space-constrained designs. It operates reliably over a wide temperature range from -40°C to 150°C, suitable for demanding environments in automotive, industrial machinery, HVAC, and consumer electronics power supplies.
Integrates 800 V avalanche-rugged power MOSFET with PWM control. Supports multiple converter topologies including flyback and buck-boost. Pulse frequency modulation enhances light-load efficiency. Built-in pulse-skip, thermal shutdown, and soft-start increase system robustness.
Compact 10-pin SSOP surface-mount package for easy PCB integration. Wide supply voltage range from 4.5 V to 30 V with a 5 V output. Switching frequency optimized at 120 kHz for effective power management. Wide operating temperature range from -40°C to 150°C.
Manufactured in China with consistent quality assurance.
This high voltage switcher is suitable for use in designing power management solutions in industrial systems, laboratory equipment, consumer electronics, and other electronics manufacturing processes. It enables efficient, reliable power conversion with minimal component count.
Explore the Electronics & Electricals category for more semiconductor solutions and advanced Power Management ICs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 252 mA.
It operates at a switching frequency of 120 kHz, optimized for effective power management.
This unit can operate within a temperature range of -40°C to 150°C, making it suitable for harsh environments.
The compact SSOP package measures 5 mm in length, 4 mm in width, and 1.5 mm in height.
It supports a wide input voltage range from 4.5 V to 30 V.
This model efficiently supports buck, flyback, and buck-boost converter topologies.
Yes, it includes pulse-skip protection to prevent flux runaway and an embedded thermal shutdown to safeguard against overheating.
The maximum duty cycle for this unit is 80%.
The supply current for the VIPER012BHSTR is 1.25 mA.
The output power is 8.6 mW.
It features soft-start functionality to ensure system reliability during power-up.
This high voltage switcher is manufactured in China.
