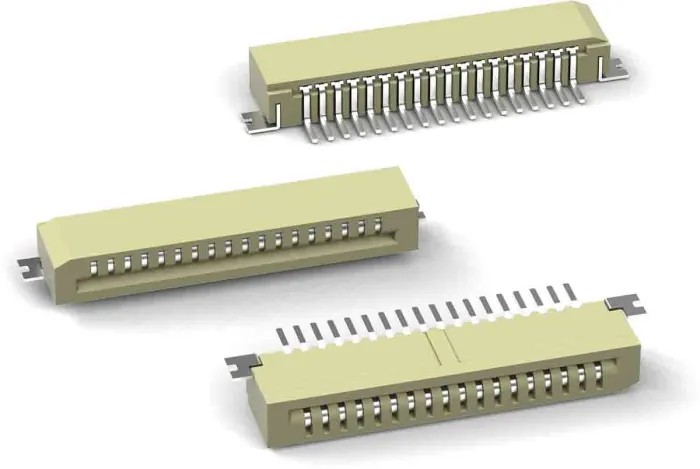

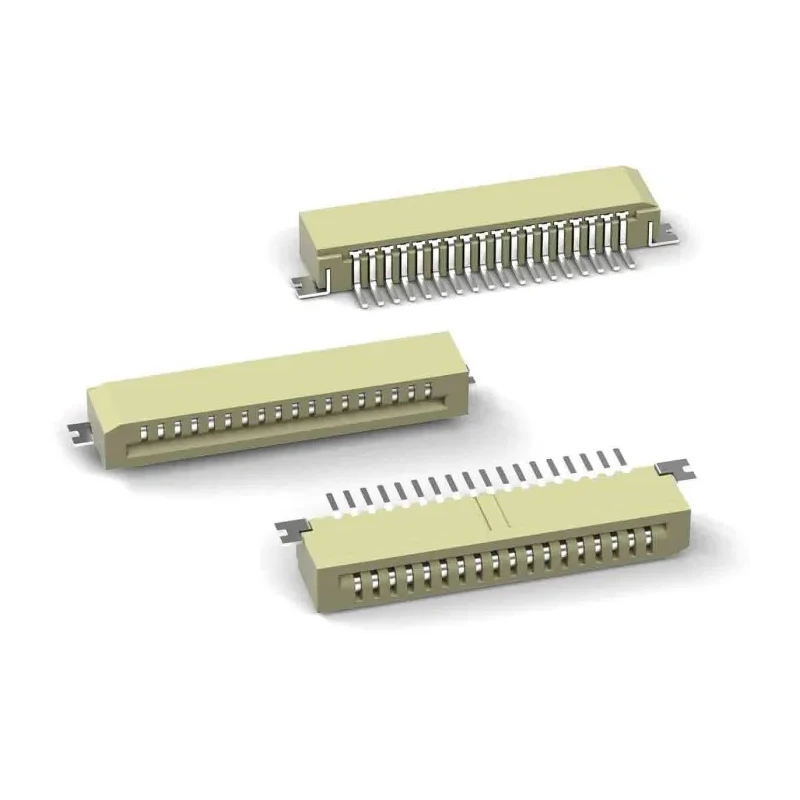

Wurth Elektronik WR-FPC Series Horizontal Surface PCB Header, 10 Contacts, 1 mm Pitch, 1 Row, Shrouded 686110188622
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 125V |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Contact Type | Stamped |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 10 |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with a liquid crystal polymer housing for enhanced durability.
- Features phosphor bronze contacts with tin over nickel plating for reliable conductivity.
- Suitable for surface mount applications with a wire-to-board connector system.
- Rated for 1 A current and 125 V operating voltage with RoHS compliance.
- Operates reliably in temperatures from -25°C to 85°C.
- Contact type is stamped with solder termination for secure connections.
- Shrouded orientation enhances protection and prevents contact damage.
- Compact design with a 1 mm pitch and single row for dense PCB layouts.
Product Description
Wurth Elektronik 686110188622 PCB Header is a high-quality horizontal surface mount component designed for precise and reliable electronic connections. It features 10 contacts arranged in a single row with a compact 1 mm pitch, ideal for applications requiring dense layouts and reliable interconnections. Manufactured using liquid crystal polymer, the housing ensures excellent mechanical stability and heat resistance.
The contacts are made of phosphor bronze and plated with tin over nickel, combining strength and corrosion resistance. The connector is shrouded, providing additional protection against mechanical stress and accidental contact damage. Its solder termination type ensures firm mounting on PCBs.
Rated for a current capacity of 1 A and a working voltage of 125 V, this PCB header meets relevant RoHS environmental standards. It operates reliably between -25°C and 85°C, making it suitable for a variety of industrial, electronics manufacturing, and consumer electronics applications.
This Wurth Elektronik PCB header with model 686110188622 serves effectively in electronics designs requiring wire-to-board connections, offering precision, durability, and compliance with industry standards.
Constructed with a liquid crystal polymer housing for enhanced durability. Features phosphor bronze contacts with tin over nickel plating for reliable conductivity. Suitable for surface mount applications with a wire-to-board connector system.
Rated for 1 A current and 125 V operating voltage with RoHS compliance. Operates reliably in temperatures from -25°C to 85°C. Contact type is stamped with solder termination for secure connections. Shrouded orientation enhances protection and prevents contact damage.
Compact design with a 1 mm pitch and single row for dense PCB layouts.
This product is essential for electronic manufacturing, development, and repair operations requiring reliable PCB connector solutions. Explore similar PCB Headers and connectors on EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a current capacity of 1 A and a working voltage of 125 V.
The housing is constructed from liquid crystal polymer, which provides enhanced durability and heat resistance.
It features 10 contacts arranged in a single row.
This model uses a solder termination type for secure connections on PCBs.
It operates reliably between -25°C and 85°C.
Yes, this PCB header meets RoHS environmental standards.
It is suitable for a wire-to-board connector system.
The pitch size is 1 mm, making it compact for dense PCB layouts.
The contacts are made of phosphor bronze and are plated with tin over nickel for reliable conductivity.
This model has a horizontal orientation.
The country of origin for this product is China.
It is suitable for surface mount applications in electronics manufacturing and development requiring reliable PCB connector solutions.
