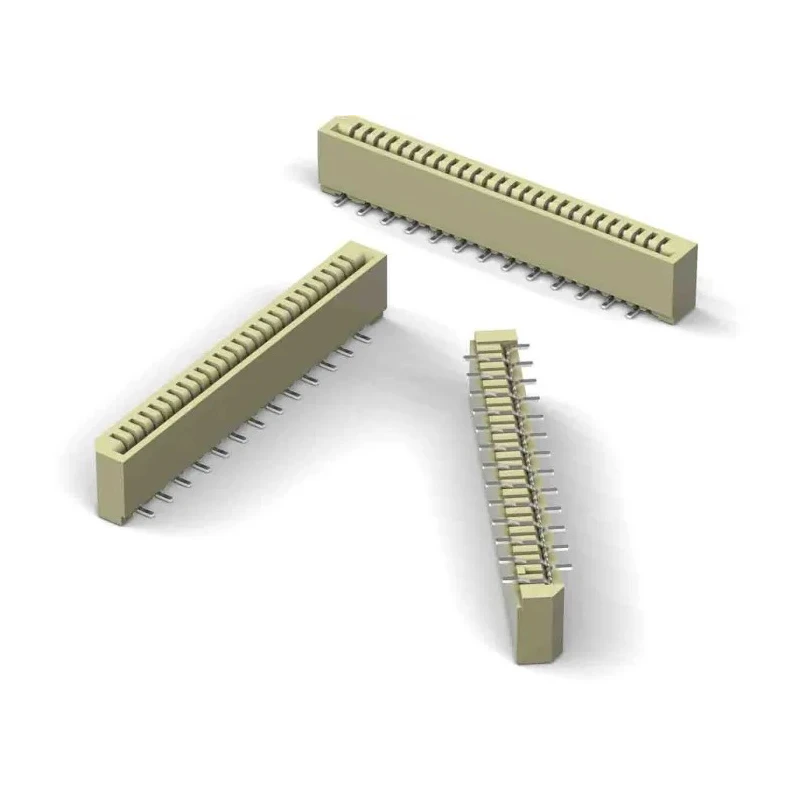

Wurth Elektronik WR-FPC Series Vertical Surface PCB Header, 26 Contacts, 1 mm Pitch, 1 Row, Shrouded 686126188822

Wurth Elektronik 686126188822 WR-FPC Series vertical surface PCB header offers a robust and reliable connection solution for electronic assemblies. This shrouded PCB header features 26 contacts arranged in a single row with a fine 1 mm pitch, making it ideal for dense wiring applications requiring precision and secure connections.

The housing is made from high-quality Liquid Crystal Polymer, which provides excellent mechanical strength and thermal stability. Each contact is constructed from phosphor bronze for conductivity and durability, plated with 2.032 μm tin over 1.27 μm nickel to resist corrosion and ensure long service life. The stamped contact design enhances electrical performance.

Designed for wire-to-board connector systems, it is surface mountable via solder termination technique. The header supports a current rating of 1 A and voltage rating up to 125 V AC, suitable for low power signal and control circuits. It operates reliably in industrial temperature ranges from -25°C to 85°C. Its shrouded vertical orientation with 1 mm row pitch further ensures connector stability and protection against damage.

This component complies with RoHS standards reflecting its environment-friendly design and manufacturing. Made in China, it is apt for applications in industrial electronics, instrumentation, automation, and embedded systems where dependable PCB interconnection is required.

Shrouded construction for enhanced connection security and durability. Liquid Crystal Polymer housing ensures mechanical and thermal resilience. Phosphor bronze contacts plated with tin and nickel for corrosion resistance.

Rated for 1 A current and 125 V AC voltage for reliable electrical operation. Single-row vertical pitch of 1 mm supports compact connector layouts. Solder termination suitable for surface mounted PCB applications. Operational temperature range from -25°C to +85°C supports diverse environments.

RoHS compliant for environmentally safe industrial use. Explore more Wurth Elektronik PCB Headers and connectors at EnvMart, your trusted industrial electronic components marketplace.
