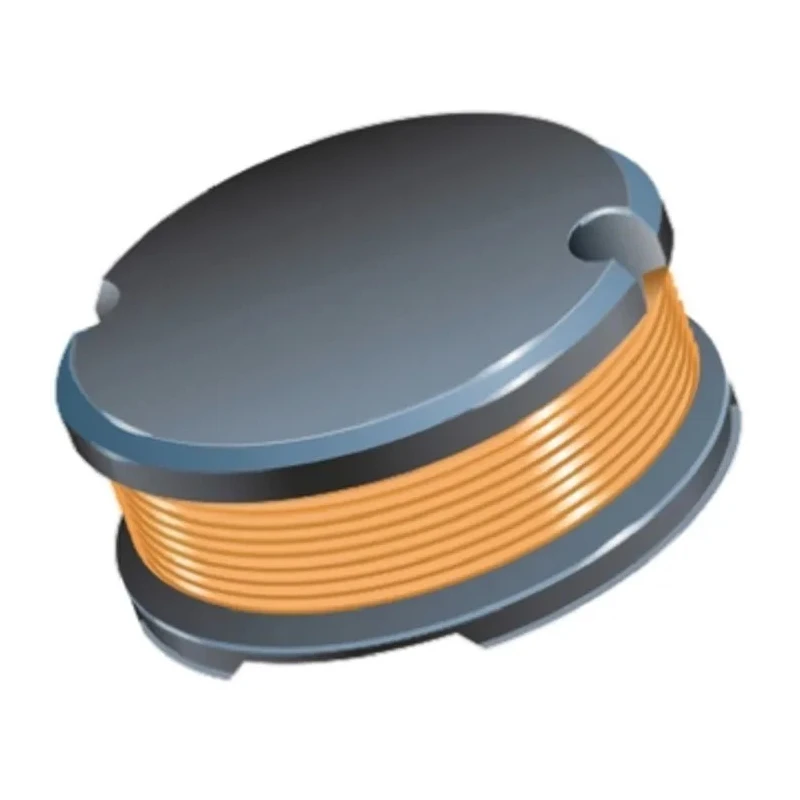

Bourns Unshielded Wirewound Surface Mount Inductor 270 μH ±10% 320 mA Idc Ferrite Core 0604 SDR0604

Bourns SDR0604 is an unshielded wirewound surface mount inductor constructed with a ferrite core. This component provides an inductance of 270 μH with a tolerance of ±10%, making it suitable for use in a wide range of electronic circuits requiring inductors.

It features a 0604 package size with a diameter of 5.8 mm and a profile height of 4.8 mm, designed specifically for surface mount technology (SMT) applications. The wirewound construction enhances its inductive properties and durability, ensuring reliable performance.

The inductor supports a maximum DC current of 320 mA and can operate efficiently up to 125°C, making it robust for industrial and commercial electronic equipment. Its maximum DC resistance is 1.88 Ω, with a minimum quality factor (Q) of 26 and a maximum self-resonant frequency of 4 MHz, enabling effective signal filtering and energy storage.

The product is RoHS compliant, reflecting adherence to environmental and safety standards. It is ideal for applications including input/output filtering in DC/DC converters, power supplies, and other electronics that require precision inductive components.

Packaged in tape and reel format, the SDR0604 supports streamlined manufacturing processes with automated insertion and soldering on printed circuit boards (PCB). Provides inductance of 270 microhenries suitable for surface mount applications.

Features a ferrite core optimized for high performance in electronics circuits. Handles a maximum DC current rating of 320 mA ensuring stability under load. Compact 0604 package size with 5.8 mm diameter and 4.8 mm profile height.

Wirewound construction offers reliable inductive properties and durability. Maximum operating temperature rated at 125°C for demanding environments. Inductor tolerance maintained at ±10 percent to assure circuit precision.

RoHS compliant and suitable for lead-free assembly processes. Minimum quality factor (Q) of 26 and maximum self-resonant frequency of 4 MHz. Packaged in tape and reel format for automated surface mount assembly.

This Bourns SDR0604 inductor is widely used in industrial, electronics manufacturing, telecom equipment, and laboratory testing applications. Its compliance with RoHS and precise electrical characteristics make it an excellent choice for modern surface mount electronic designs. For more components like this, explore the Surface Mount Inductor selection at EnvMart.
