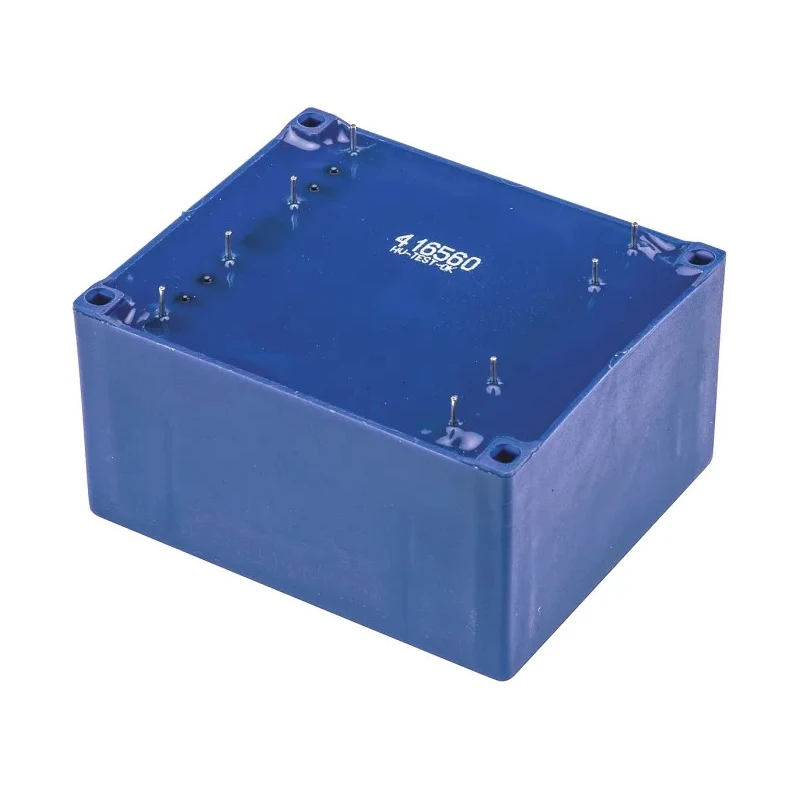

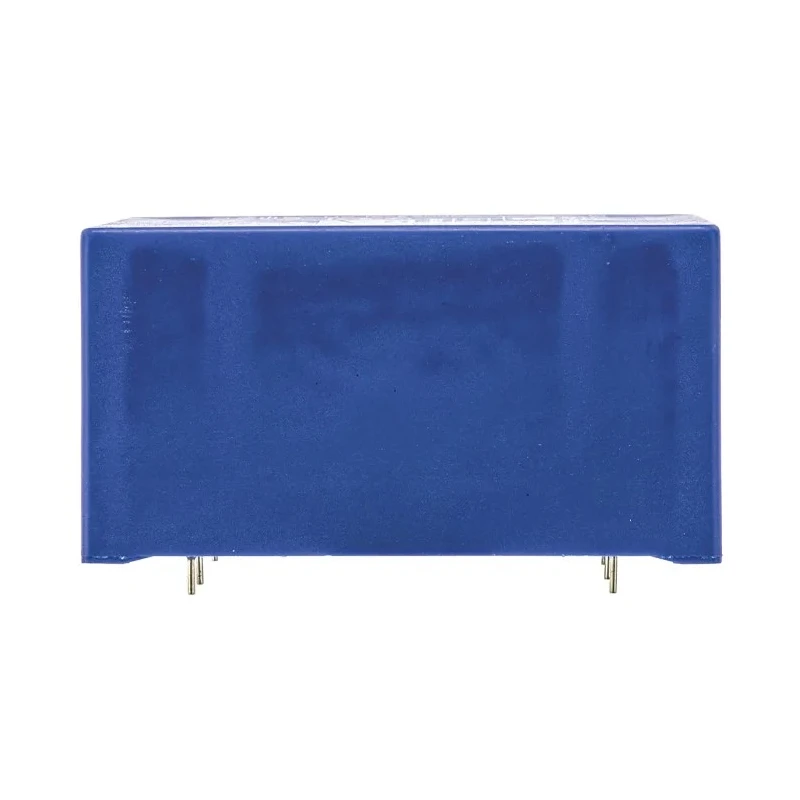

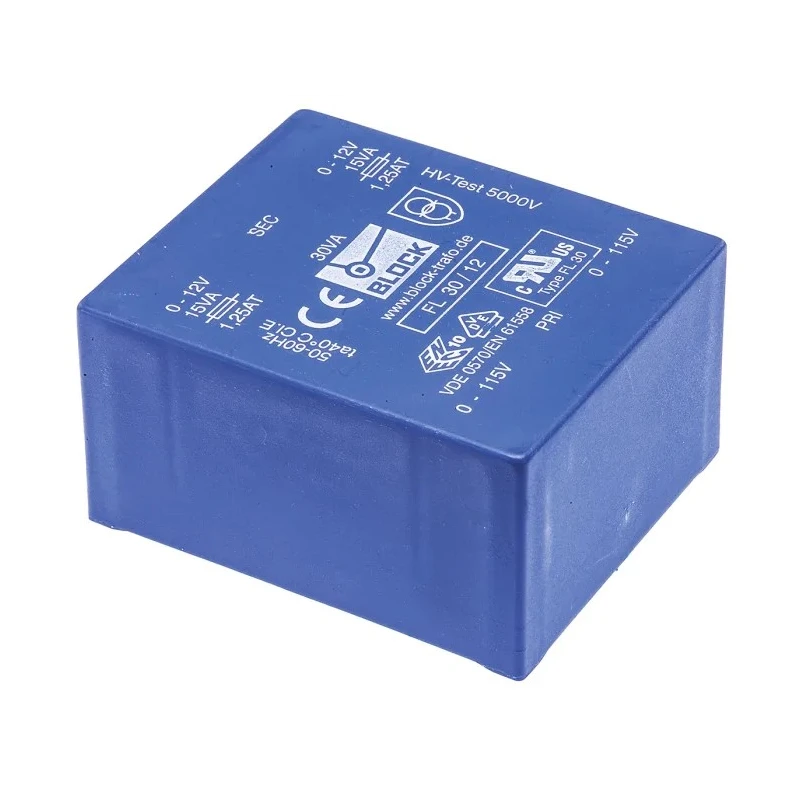

Block PCB Transformer 12 V AC Dual Secondary, 2 Outputs, Pin Mount, 30VA, 115/230 V AC FL30/12

Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin Germany
Brand Block
Length 68mm
Model FL30/12
Depth 57mm
Gross Weight 980g
Width 44mm
Mount Type Pin
Standard EN60742, VDE 0551, IEC 61558
Series FL
Maximum Operating Temperature 40°C
Number of outputs 2
Winding Type Dual Secondary
Standards/Approvals DIN EN 61558-2-1, VDE 0570 Teil 2-1, VDE 0570 Teil 2-6, VDE 0570 Teil 2-4, DIN EN 61558-2-4, IEC 61558-2-1, ENEC 10 (VDE), IEC 61558-2-6, IEC 61558-2-4, DIN EN 61558-2-6, UL 94 V-0, C-UL-US
Isolation Voltage 5000V
Primary Voltage 115 V ac, 230 V ac
Secondary Voltage 12 V ac
Minimum Operating Frequency 50Hz
Maximum Operating Frequency 60Hz

Key Features

  • Operates with primary voltages of 115 V AC and 230 V AC for versatile applications.
  • Features dual secondary windings to allow series or parallel configurations.
  • Compact low profile design with dimensions of 68mm length, 44mm width, and 57mm depth.
  • Vacuum epoxy resin moulded to UL94-V0 rating ensures fire safety and durability.
  • High isolation voltage of 5000 V for electrical safety and reliable operation.
  • Supports operating temperatures up to 40°C for stable performance in demanding environments.
  • Complies with international standards including DIN EN 61558-2-1 and VDE 0570 parts for quality assurance.
  • Minimum frequency of 50 Hz and maximum frequency of 60 Hz for AC operation.

Product Description

Block FL30/12 PCB Transformer is a high-quality power transformer intended for printed circuit board applications with 2 outputs and 30VA power rating. It operates at primary voltages of 115 V AC and 230 V AC and delivers a secondary voltage of 12 V AC through dual secondary windings that can be connected in series or parallel to meet different voltage or current requirements.

This pin mount transformer features a compact low profile design with physical dimensions of 68 mm length, 44 mm width, and 57 mm depth, making it suitable for installations where space is limited. The transformer is vacuum epoxy resin moulded to the UL94-V0 flammability rating, ensuring excellent fire safety and insulation properties.

Designed for industrial, electronic components, and power supply applications, the FL30/12 offers an isolation voltage rating of 5000 V and a maximum operating temperature of 40°C. Its construction includes double section glass fibre reinforced polyamide bobbins and low inter-winding capacitance which contributes to reduced noise and improved electrical performance.

The unit complies with a wide range of international standards and approvals, including DIN EN 61558-2-1, VDE 0570 Teil 2-1, and UL 94 V-0, ensuring reliable operation and safety in commercial and industrial environments. Additional fixing holes facilitate secure board mounting. It is ideally suited for use in electronic assemblies, power supplies, and industrial equipment requiring high-quality transformers.

Operates on 115 V AC and 230 V AC primary voltages. Two secondary outputs of 12 V AC with dual windings. Compact dimensions: 68x44x57 mm suitable for PCB mounting. Vacuum epoxy resin moulded to UL94-V0 standard. High isolation voltage of 5000 V for enhanced safety.

Maximum operating temperature: 40°C. Wide frequency range: 50 - 60 Hz. Complies with DIN EN and VDE standards for quality. Weight approximately 980 grams for stable mounting. Explore more high-performance PCB Transformers and power supply components on EnvMart to meet your industrial and laboratory requirements.

Block PCB Transformer 12 V AC Dual Secondary, 2 Outputs, Pin Mount, 30VA, 115/230 V AC FL30/12
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a power rating of 30 VA, making it suitable for various applications requiring this level of power.

It operates with primary voltages of 115 V AC and 230 V AC, providing versatility for different electrical systems.

The transformer delivers a secondary voltage of 12 V AC through its dual secondary windings.

It has compact dimensions of 68 mm in length, 44 mm in width, and 57 mm in depth, making it suitable for limited space installations.

The isolation voltage rating is 5000 V, ensuring electrical safety and reliable operation.

The maximum operating temperature is 40°C, allowing it to function in demanding environments.

It complies with several international standards including DIN EN 61558-2-1 and VDE 0570, ensuring quality assurance.

This transformer features two outputs, allowing for flexible configurations in applications.

It utilizes a pin mount type, which facilitates secure installation on printed circuit boards.

The transformer operates within a frequency range of 50 Hz to 60 Hz, suitable for standard AC applications.

It is vacuum epoxy resin moulded to the UL94-V0 standard, providing fire safety and insulation properties.

It is intended for use in electronic assemblies, power supplies, and industrial equipment requiring high-quality transformers.
