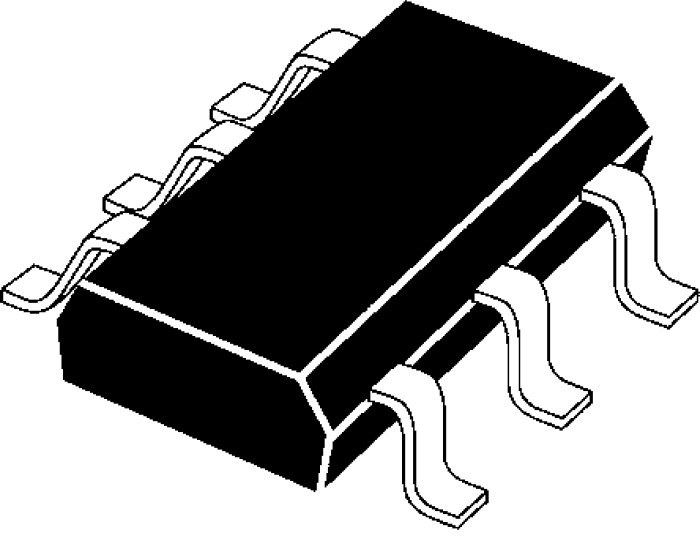

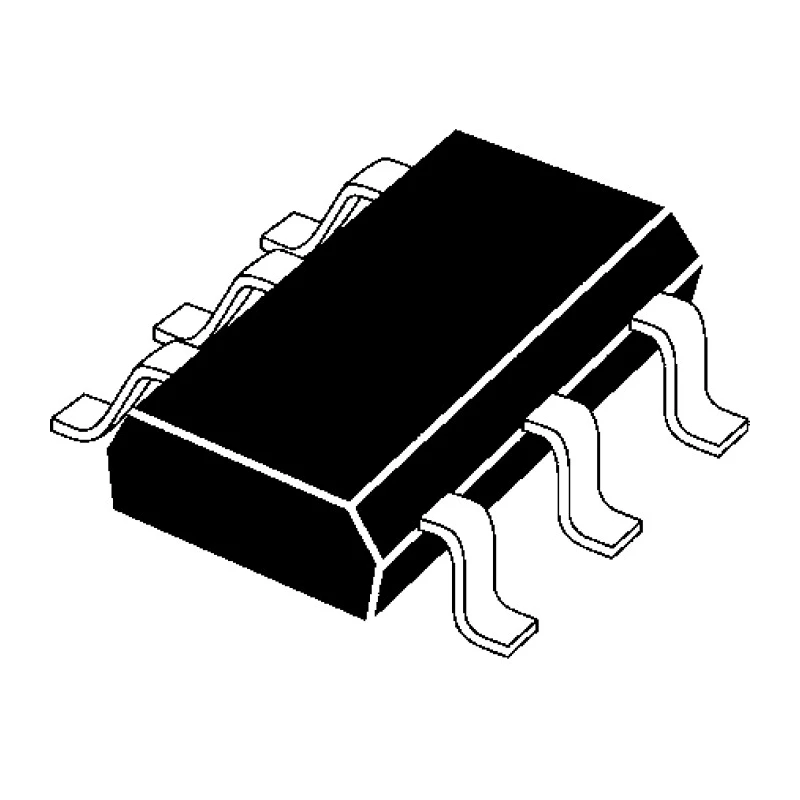

onsemi 2-Element Bi-Directional TVS Diode Array 6-Pin SOT-363 NUP2301MW6T1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 2.2mm |
| Model | NUP2301MW6T1G |
| Width | 1.35mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-363 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 6 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 1.25V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Complex Array |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 70V |
| Maximum Reverse Stand-off Voltage Vwm | 70V |
| Test Current It | 100μA |
| Maximum Peak Pulse Current Ippm | 2A |
| Maximum Reverse Leakage Current | 2.5μA |
Key Features
- The diode array features a complex configuration of two elements per chip for advanced protection.
- It operates bi-directionally with a minimum breakdown voltage of 70V and maximum reverse stand-off voltage of 70V.
- The clamping voltage is low at 1.25V, making it efficient for sensitive circuits.
- Designed for surface mount technology in a compact SOT-363 package with 6 pins.
- Wide operating temperature range from -55°C to 150°C supports industrial applications.
- Peak pulse current capacity reaches 2A, ensuring high transient voltage suppression performance.
- Low reverse leakage current of 2.5μA improves circuit stability and reduces power loss.
- This component complies with automotive standard AEC-Q101 for reliability in demanding environments.
Product Description
onsemi NUP2301MW6T1G is a 2-element bi-directional TVS diode array designed in a 6-pin SOT-363 surface mount package. It offers reliable transient voltage suppression to protect sensitive electronics from electrostatic discharge and voltage spikes.
The diode array is configured as a complex array with two elements per chip, enabling robust bi-directional protection with a breakdown voltage of 70V. It features a low clamping voltage of 1.25V and a peak pulse current of up to 2A, making it suitable for protecting circuits against high-energy transient pulses.
This component operates effectively within a wide temperature range of -55°C to 150°C, ensuring dependable performance in harsh industrial and automotive environments. The device's surface mount form factor (SOT-363) offers compactness for modern PCB layouts.
Low maximum reverse leakage current of 2.5μA minimizes power losses and maintains circuit integrity. This diode array meets automotive standard AEC-Q101, confirming its quality and reliability for automotive electronic applications.
This TVS diode array serves well in industrial controls, automotive electronics systems, consumer devices, and communications equipment to prevent damage from electrostatic discharge and electrical surges. Its surface mount package simplifies automated assembly processes.
The diode array features a complex configuration of two elements per chip for advanced protection. It operates bi-directionally with a minimum breakdown voltage of 70V and maximum reverse stand-off voltage of 70V. The clamping voltage is low at 1.25V, making it efficient for sensitive circuits.
Designed for surface mount technology in a compact SOT-363 package with 6 pins. Wide operating temperature range from -55°C to 150°C supports industrial applications. Peak pulse current capacity reaches 2A, ensuring high transient voltage suppression performance.
Low reverse leakage current of 2.5μA improves circuit stability and reduces power loss. This component complies with automotive standard AEC-Q101 for reliability in demanding environments. Ideal for protecting electronic systems from ESD damage in consumer, automotive, and industrial electronics.
Explore more semiconductor and TVS Diode Array products with onsemi at EnvMart for your industrial, automotive, and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of this model is 70V.
The clamping voltage is low at 1.25V, making it suitable for sensitive circuits.
It can handle a maximum peak pulse current of up to 2A.
This model operates effectively within a wide temperature range of -55°C to 150°C.
The diode array features a complex configuration with two elements per chip.
The maximum reverse leakage current is 2.5μA, which helps improve circuit stability.
It is designed in a compact SOT-363 surface mount package with 6 pins.
This component complies with the automotive standard AEC-Q101 for reliability in demanding environments.
The height of this model is 1mm.
The width is 1.35mm and the length is 2.2mm.
This model is designed for surface mount technology.
It is suitable for protecting electronic systems in industrial controls, automotive electronics, consumer devices, and communications equipment.
