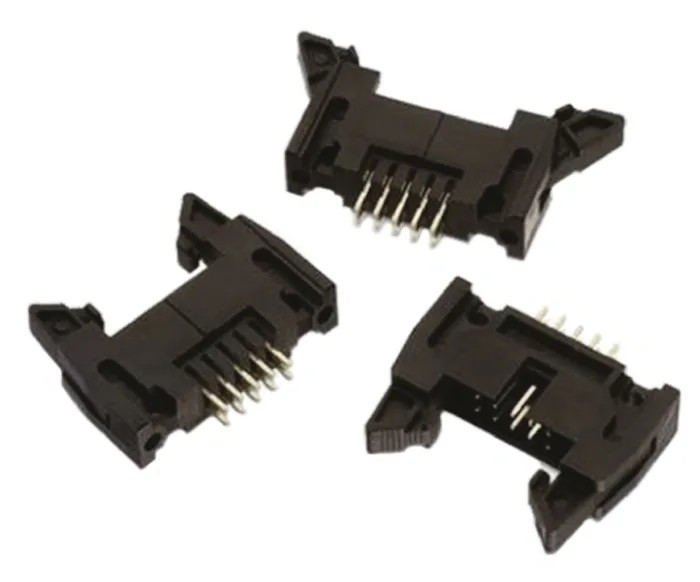

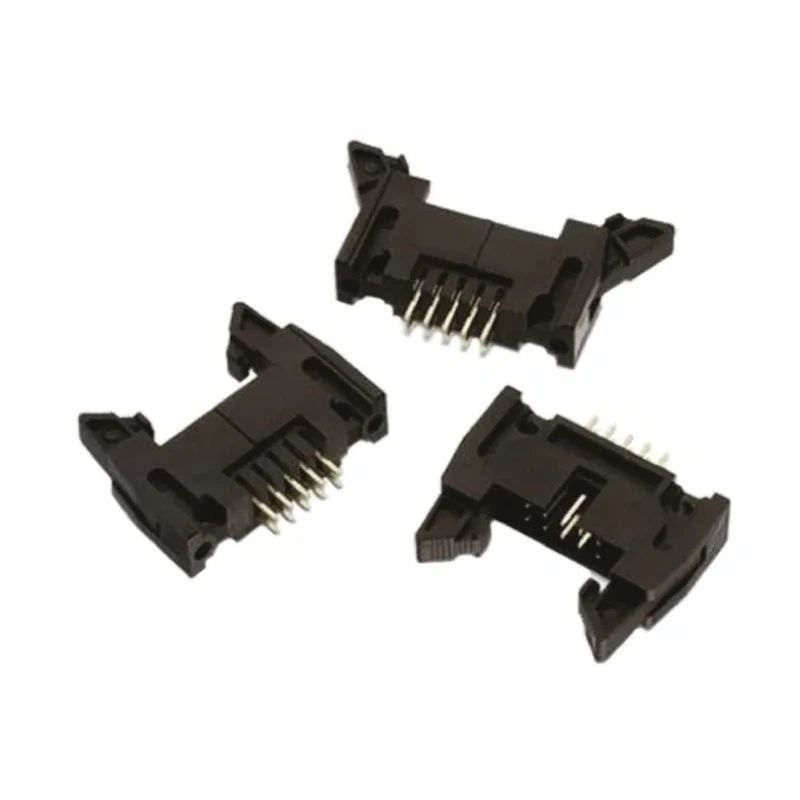

Wurth Elektronik WR-BHD Series Straight Through Hole PCB Header 20 Contacts 2.54 mm Pitch 2 Row Shrouded 61202022021
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | WR-BHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Provides 20 male contacts arranged in 2 rows with 2.54 mm pitch.
- Constructed with high-quality polybutylene terephthalate housing for durability.
- Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.
- Rated for 3A current and 250V voltage operation.
- Designed for through hole mount with a straight orientation.
- Features shrouded design with locking levers for secure wire-to-board connections.
- Operates reliably between -40°C and 125°C temperature range.
- Termination type is solder, facilitating robust PCB assembly.
Product Description
Wurth Elektronik 61202022021 WR-BHD Series straight through hole PCB header features 20 male contacts arranged in 2 rows, each with a 2.54 mm pitch. The shrouded design, constructed from durable polybutylene terephthalate (PBT) housing, enhances mechanical protection and connection reliability for wire-to-board applications.
Gold-plated copper alloy contacts deliver superior electrical conductivity and resistance to corrosion, ensuring consistent signal integrity and power transfer. This connector is rated for a current of 3A and a voltage of 250V, suitable for a wide range of industrial and electronic devices.
Designed for through hole PCB mounting with a straight orientation, it facilitates easy solder termination during assembly processes. The locking levers integrated into the WR-BHD series provide secure mating and reliable mechanical retention of cables or connectors. The connector operates comfortably within a temperature range of -40°C to 125°C, making it ideal for harsh operating environments.
This product is commonly used in industrial equipment, manufacturing machines, electronics assemblies, and any application requiring dependable board-to-wire connections with robust physical and electrical properties.
Provides 20 male contacts arranged in 2 rows with 2.54 mm pitch. Constructed with high-quality polybutylene terephthalate housing for durability. Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.
Rated for 3A current and 250V voltage operation. Designed for through hole mount with a straight orientation. Features shrouded design with locking levers for secure wire-to-board connections. Operates reliably between -40°C and 125°C temperature range.
Termination type is solder, facilitating robust PCB assembly. Complies with no particular standards or approvals but meets industrial quality requirements. Ideal for various electronics, industrial, and manufacturing applications requiring reliable PCB connections.
Explore the Wurth Elektronik WR-BHD series and related PCB connection solutions on EnvMart for your next electronics project or industrial installation.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a current of 3A and a voltage of 250V.
It features a pitch of 2.54 mm and has 20 male contacts arranged in 2 rows.
The housing is constructed from polybutylene terephthalate (PBT), which provides durability.
The shrouded design enhances mechanical protection and connection reliability for wire-to-board applications.
It operates reliably within a temperature range of -40°C to 125°C.
The termination type is solder, facilitating robust PCB assembly.
It is designed for through hole mounting with a straight orientation.
The contacts are made of gold-plated copper alloy, ensuring excellent conductivity and corrosion resistance.
This model is commonly used in industrial equipment, manufacturing machines, and electronics assemblies requiring dependable board-to-wire connections.
It complies with industrial quality requirements but does not have specific certifications or approvals.
It features locking levers that provide secure mating and reliable mechanical retention of cables or connectors.
The country of origin for this product is India.
