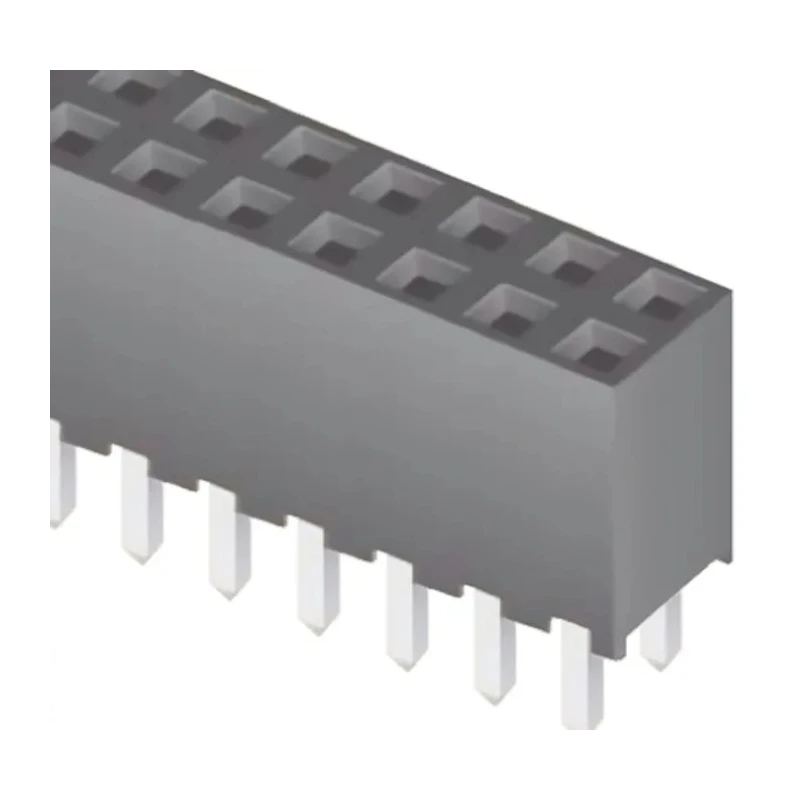

Samtec SQW Series Straight Through Hole Board-to-Board PCB Socket 60-Contact 2 Row 2mm Pitch 500V 12A SQW-130-01-L-D

Samtec SQW-130-01-L-D is a high-quality straight through hole PCB socket from the SQW Series, designed as a 60-contact, 2-row board-to-board connector with a 2 mm pitch for precise electronic connections. This PCB socket supports a current rating of 12A and voltage of up to 500V, making it suitable for industrial and commercial electronics, telecommunications, and embedded systems.

The contacts are manufactured from bronze and feature Tiger Buy contacts with 0.25 μm gold plating on the contact areas to ensure excellent conductivity and durability, while the PCB tails are matte tin plated for solderability. The black Liquid Crystal Polymer (LCP) housing provides excellent mechanical strength and resistance to high temperatures, rated from -55°C to 125°C, thus suitable for harsh operating environments.

This socket is designed for through-hole mounting with a straight orientation to facilitate stable and secure PCB connections. The compact above-board height of 6.35 mm helps in maintaining a low-profile design, important for tight space layouts. It is compatible with mating TMM SMT and through-hole headers, expanding its application possibilities.

Typical use cases include industrial electronics assembly, power and signal routing in control systems, telecommunications equipment, and other manufacturing applications requiring reliable, high-density board-to-board interconnects.

The socket supports a current rating of 12A at 500 volts. Gold-plated bronze contacts offer resistance against corrosion and wear. Black LCP housing provides mechanical robustness and thermal endurance. Operating temperature ranges from -55°C to 125°C, suitable for extreme conditions.

Features 60 contacts arranged in 2 rows with a 2 mm pitch for reliable connectivity. Through-hole mounting and straight orientation streamline PCB assembly. Compact height of 6.35 mm above the board optimizes PCB layout space.

Compatible with mating TMM SMT and through-hole headers for versatile applications.

For detailed design and mechanical integration, 3D models, schematics, and footprints are available. This product is ideal for professionals involved in industrial manufacturing, electronics prototyping, and repair operations requiring dependable board-to-board socket solutions.

Explore the wide range of PCB Sockets available to find compatible connectors and accessories that enhance your electronic designs.
