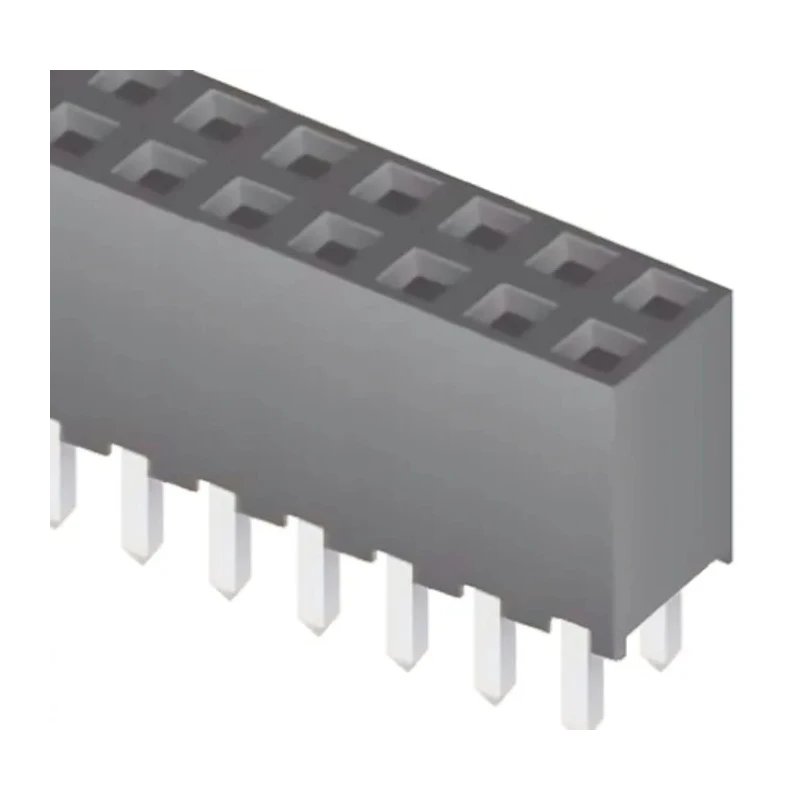

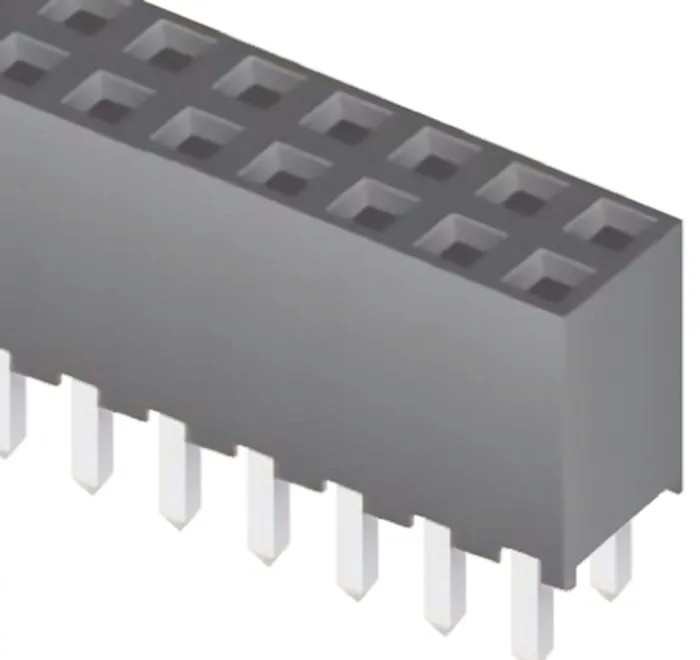

Samtec SQW Series Straight Through Hole PCB Socket 20-Contact 2 Row 2 mm Pitch Solder SQW-110-01-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Temperature range | -55 → 125 °C |
| Model | SQW-110-01-L-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SQW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Insulator Material | Black LCP |
Key Features
- Features 20 female contacts arranged in 2 rows with 2 mm pitch for reliable connectivity.
- Constructed with Liquid Crystal Polymer housing material for rugged performance.
- Rated for 12A current and up to 500V operating voltage for diverse electronic applications.
- Contact material is bronze with 0.25 µm gold plating on contacts and matte tin plating on PCB tails.
- Suitable for operating temperature range from -55°C to 125°C supporting harsh environments.
- Through hole mount type with straight orientation designed for board-to-board connections.
- SQW series slot socket with a 6.35 mm above board height and 2 mm row pitch.
- Widely used in electronic components, power & connectors, PCB connectors & wire housings applications.
Product Description
Samtec SQW-110-01-L-D is a high-quality SQW Series Straight Through Hole PCB Socket featuring 20 female contacts in a 2-row configuration with 2 mm pitch. This socket is designed for reliable board-to-board connections in industrial, laboratory, manufacturing, and electronic assembly applications.
The socket is constructed with a robust Liquid Crystal Polymer (LCP) black housing providing durability and mechanical stability. High-performance bronze contacts plated with 0.25 µm gold ensure excellent conductivity and corrosion resistance, while the PCB tails have matte tin plating for strong soldering.
Rated for a maximum current of 12A and an operating voltage up to 500V, it is suitable for various electrical and electronic equipment. The operating temperature range from -55°C to 125°C makes it ideal for use in harsh environmental conditions including industrial and laboratory settings.
This through hole mount type socket is oriented straight and designed for board-to-board connector systems. The 2 mm pitch between the rows and the 6.35 mm above board height allow for compact and efficient PCB layout designs.
Features 20 female contacts arranged in 2 rows with 2 mm pitch for reliable connectivity. Constructed with Liquid Crystal Polymer housing material for rugged performance. Rated for 12A current and 500V voltage for versatile electronic uses.
Bronze contact material with gold plating ensures long service life and excellent conductivity. Supports operating temperature range from -55°C to 125°C for harsh environments. Through hole mount type with straight orientation optimized for board-to-board connections.
Compact SQW Series design with 6.35 mm above board height for space-saving installation.
This PCB socket is commonly used in electronics manufacturing, electrical assembly, power and industrial equipment, and laboratory instrumentation. It is compatible with mating TMM SMT or through hole headers typically stocked under part numbers 481-4780 and 765-6212, respectively.
EnvMart offers this Samtec SQW Series PCB Socket as part of our extensive range of electronic components designed for precision and reliability in demanding industrial and commercial applications.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 12A, making it suitable for various electrical applications.
The operating voltage for this PCB socket is up to 500V, allowing it to be used in diverse electronic applications.
It supports an operating temperature range from -55°C to 125°C, making it suitable for harsh environments.
This model features 20 female contacts arranged in 2 rows, providing reliable connectivity.
The contacts are arranged with a pitch of 2 mm, which is standard for many board-to-board connections.
The housing is made from Liquid Crystal Polymer (LCP), while the contacts are bronze with 0.25 µm gold plating and matte tin plating on the PCB tails.
It is a through hole mount type socket, designed for straight orientation in board-to-board connections.
The above board height for this model is 6.35 mm, allowing for compact PCB layout designs.
Yes, it is compatible with mating TMM SMT or through hole headers typically stocked under part numbers 481-4780 and 765-6212.
The termination type for the contacts is solder, which is standard for securing connections on PCBs.
It is commonly used in electronics manufacturing, electrical assembly, power and industrial equipment, and laboratory instrumentation.
This product is manufactured in India, ensuring compliance with local manufacturing standards.
