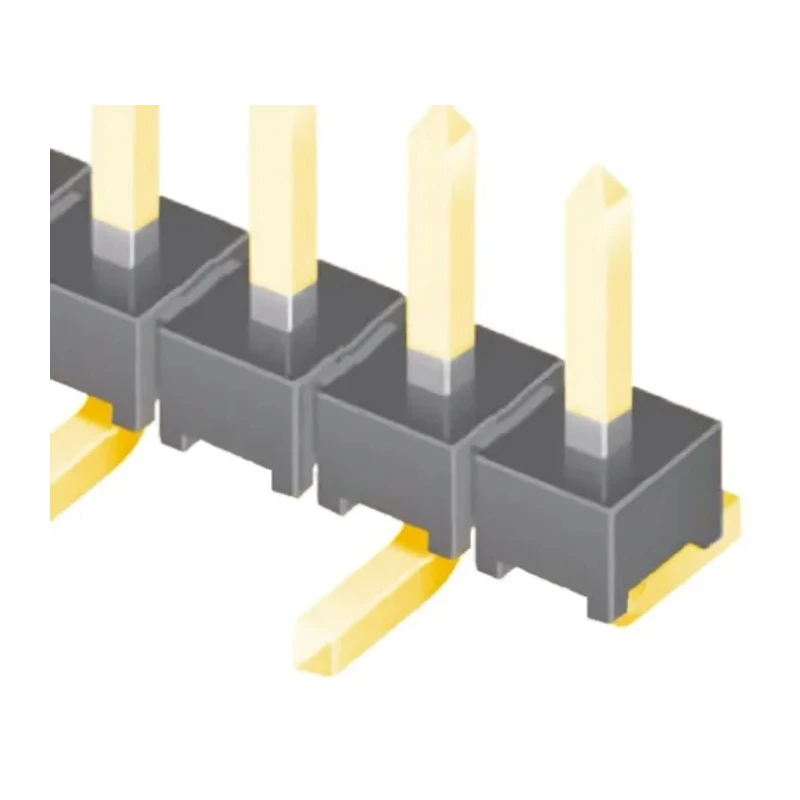

Samtec TMM Series Straight Surface Pin Header 10 Contacts 2 mm Pitch 1 Row Unshrouded TMM-110-01-G-S-SM
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Samtec |
| Orientation | Straight |
| Operating Temperature | -55°C to +125°C with Gold |
| Current | 3.9A |
| Model | TMM-110-01-G-S-SM |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TMM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
| Mating Pin Length | 3.2mm |
| Insulator Material | Black LCP |
| TMM-1xx-01-L-x-SM | 0.25μm Gold plated Posts with Tin Plated Tails |
| TMM-1xx-01-G-x-SM | 0.75μm Gold plated Posts with 0.075μm Gold Plated Tails |
Key Features
- Features gold-plated phosphor bronze contacts ensuring reliable conductivity.
- Constructed with liquid crystal polymer housing providing durability and thermal stability.
- Supports a maximum operating voltage of 500V and current up to 3.9A.
- Operates effectively within a temperature range from -55°C to +125°C when gold plated.
- Designed with a 3.5 mm tail pin length and 3.2 mm mating pin length for secure soldered connections.
- Provides a low profile 2.77 mm height and a 2 mm row pitch for compact PCB designs.
- Compatible with multiple socket series for flexible integration in electronic assemblies.
- Unshrouded male contact configuration suited for surface mount technology installations.
Product Description
Samtec TMM-110-01-G-S-SM Series Straight Surface Pin Header is a high-quality electronic component designed for precise and reliable board-to-board and wire-to-board connectivity applications. It features 10 male contacts arranged in a single row with a 2 mm pitch to facilitate compact and efficient PCB layouts.
The pin header’s contacts are made of phosphor bronze and plated with gold, ensuring excellent conductivity and corrosion resistance. The housing is manufactured from black liquid crystal polymer (LCP), offering superior mechanical strength and thermal resistance withstanding ambient temperatures from -55°C up to 125°C.
This component supports a maximum current rating of 3.9A and operates at voltages up to 500V, making it suitable for various industrial and electronic equipment requiring robust electrical connections.
Specifications include tail pin length of 3.5 mm and mating pin length of 3.2 mm, optimized for surface mount soldering. Its unshrouded design enables easy insertion and removal while maintaining mechanical stability on the PCB.
The TMM Series pin headers are compatible with various socket series such as SQT, SQW, TLE, SMM, and MMS, enabling versatile use in multiple connector assemblies. The low profile height of 2.77 mm also supports space-saving designs in dense electronic packaging.
Gold-plated phosphor bronze contacts for enhanced electrical performance. Liquid crystal polymer housing ensures durability and thermal stability. 2 mm pitch and single row design for efficient PCB integration. Operating temperature range from -55°C to +125°C with gold plating.
Rated for 3.9A current and 500V voltage. Unshrouded male contacts for straightforward soldering. Compatible with multiple Samtec socket series. Low profile design for compact assemblies.
This pin header is ideal for electronic manufacturing, prototyping, and industrial machinery requiring reliable and high-performance PCB connectors. Browse more PCB header solutions and electronic components within EnvMart’s extensive catalog for your electronic assembly needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 3.9A.
It supports a maximum operating voltage of 500V.
This pin header operates effectively within a temperature range from -55°C to +125°C when gold plated.
The contacts are made of phosphor bronze and are gold-plated, while the housing is constructed from liquid crystal polymer (LCP).
It features a 2 mm pitch and is designed with 10 male contacts arranged in a single row.
The tail pin length is 3.5 mm, and the mating pin length is 3.2 mm.
Yes, it is compatible with multiple socket series such as SQT, SQW, TLE, SMM, and MMS.
This pin header uses solder termination type.
It has a low profile height of 2.77 mm.
This model is designed for board-to-board and wire-to-board connectivity applications in electronic manufacturing and industrial machinery.
The orientation of this pin header is straight.
The country of origin for this model is India.
