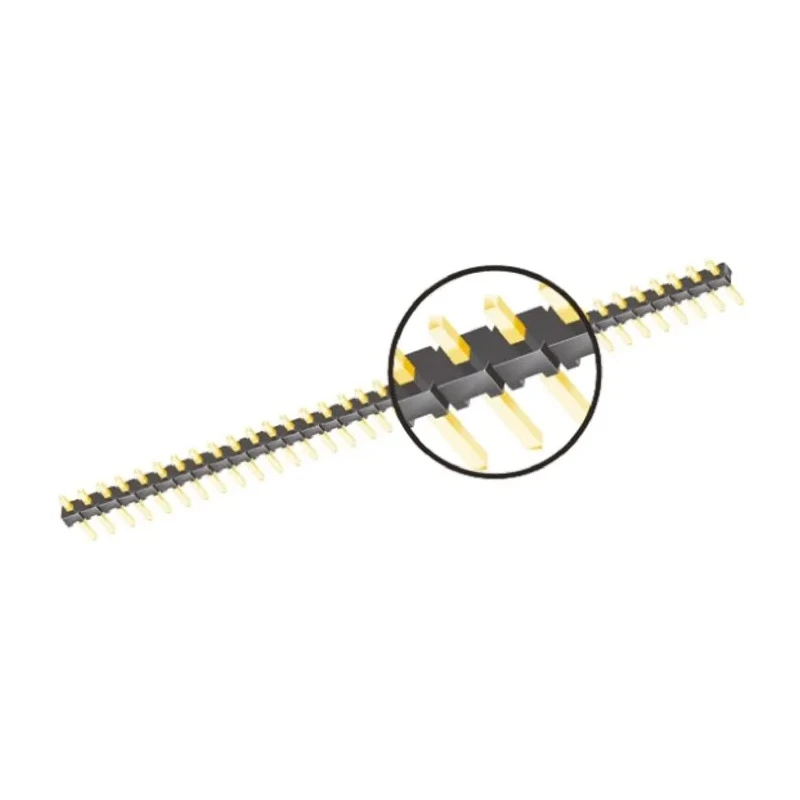

Samtec TMM Series Straight Through Hole Pin Header, 10 Contacts, 2 mm Pitch, 1 Row, Unshrouded TMM-110-01-G-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Samtec |
| Orientation | Straight |
| Operating Temperature | -55°C to +125°C |
| Current | 3.9A |
| Model | TMM-110-01-G-S |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TMM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
| Mating Pin Length | 3.2mm |
| Insulator Material | Black LCP |
Key Features
- Constructed with Liquid Crystal Polymer housing for high durability.
- Supports a current rating of 3.9A at 500V for robust electrical performance.
- Phosphor bronze contacts plated with gold for excellent conductivity and corrosion resistance.
- Designed with 3.5 mm tail pin length and 3.2 mm mating pin length for optimal soldering and connectivity.
- Operates effectively within a temperature range of -55°C to 125°C for diverse industrial applications.
- Mount type is through hole for secure PCB attachment.
- Unshrouded, straight orientation facilitates easy cable and board connections.
- Compatible with SQT, SQW, TLE, SMM, and MMS series sockets.
Product Description
Samtec TMM-110-01-G-S is a precision-engineered straight through hole pin header from the TMM Series, featuring a compact 2 mm pitch and 1-row configuration with 10 contacts. This product utilizes high-quality Liquid Crystal Polymer (LCP) housing, delivering excellent insulation and durability for demanding electronic component projects.
It supports a current rating of 3.9A and voltage rating of 500V, making it suitable for a wide range of board-to-board and wire-to-board applications in sectors such as industrial electronics, manufacturing, and telecommunications.
The contacts are crafted from phosphor bronze with a fine gold plating (0.5 μm on posts and 0.075 μm on tails), ensuring superior electrical conductivity and resistance to corrosion. The 3.5 mm tail pin length and 3.2 mm mating pin length optimize solder connectivity and mechanical stability on printed circuit boards.
This pin header operates reliably from -55°C to +125°C, accommodating various environmental conditions encountered in industrial and commercial electronic uses. The unshrouded, straight orientation design enables straightforward integration and compatibility with multiple socket series such as SQT, SQW, TLE, SMM, and MMS.
Constructed with Liquid Crystal Polymer housing for high durability. Supports a current rating of 3.9A at 500V for robust electrical performance. Phosphor bronze contacts plated with gold for excellent conductivity and corrosion resistance.
Designed with 3.5 mm tail pin length and 3.2 mm mating pin length for optimal soldering and connectivity. Operates effectively within a temperature range of -55°C to 125°C for diverse industrial applications. Mount type is through hole for secure PCB attachment.
Unshrouded, straight orientation facilitates easy cable and board connections. Compatible with SQT, SQW, TLE, SMM, and MMS series sockets.
Samtec's TMM Series pin headers enhance production efficiency by providing a reliable interconnection solution for PCBs. Ideal for use in industrial electronics, communication equipment, and embedded systems requiring compact design and long-lasting performance.
Explore more PCB Headers and related components on EnvMart for your electronics design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 3.9A at a voltage of 500V.
This pin header operates effectively within a temperature range of -55°C to +125°C.
The housing is made from Liquid Crystal Polymer (LCP), and the contacts are crafted from phosphor bronze with gold plating.
It features a compact 2 mm pitch and has 10 contacts.
The tail pin length is 3.5 mm, and the mating pin length is 3.2 mm.
It uses a through hole mount type for secure PCB attachment.
The TMM-110-01-G-S has a straight orientation, which facilitates easy cable and board connections.
It is compatible with SQT, SQW, TLE, SMM, and MMS series sockets.
This pin header supports both board-to-board and wire-to-board connector systems.
The contact gender for this pin header is male.
The contacts are plated with gold, ensuring excellent conductivity and corrosion resistance.
The country of origin for this pin header is India.
