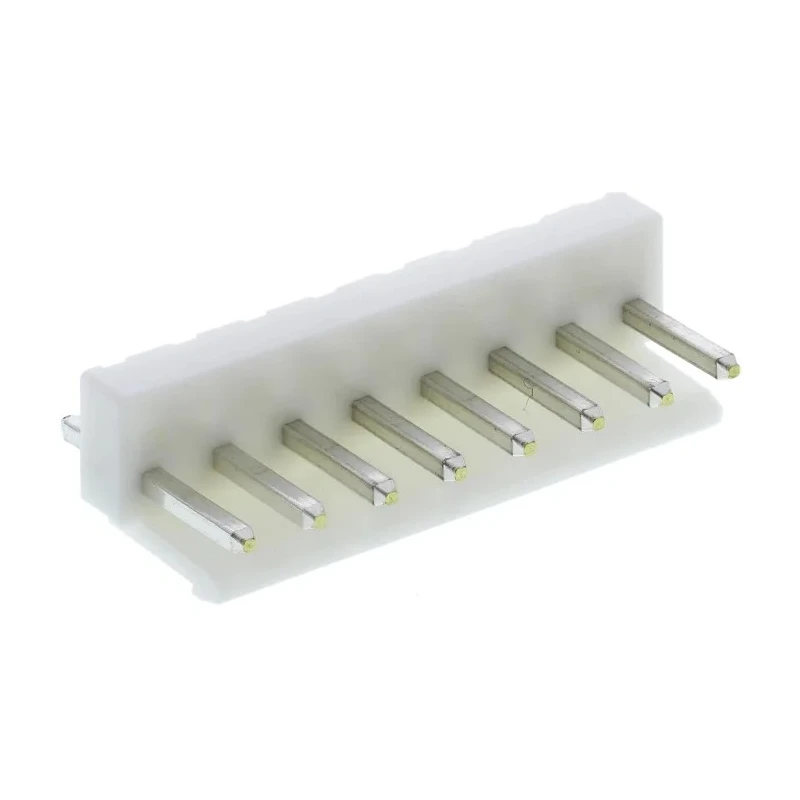

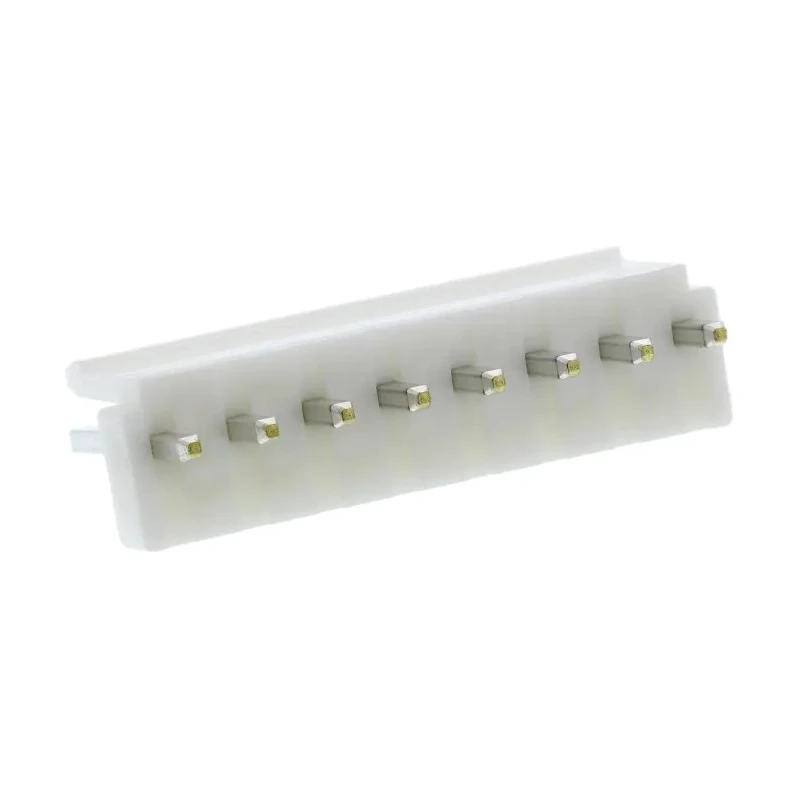

JST VH Series Top Entry Through Hole PCB Header 8 Contacts 3.96 mm Pitch 1 Row Shrouded B8P-VH(LF)(SN)
Specifications
| Country of Origin | Indonesia |
|---|---|
| Voltage | 250V |
| Brand | JST |
| Orientation | Top Entry |
| Current | 10A |
| Temperature range | -25 → 85 °C |
| Model | B8P-VH(LF)(SN) |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | VH |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Header Material | PA66 UL94V-0, natural |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The connector supports a current rating of 10A for reliable signal and power applications.
- Constructed from polyamide housing material with brass contacts plated with tin for durability and corrosion resistance.
- Suitable for PCBs of 1.6 mm thickness with a secure friction lock mechanism to ensure stable connection.
- Operating temperature range from -25°C to 85°C allows use in varied environments.
- Designed for top entry with a shrouded contact system that protects against incorrect mating and enhances safety.
- Compatible with JST VH Series crimp housings for easy wire termination and assembly.
Product Description
JST B8P-VH(LF)(SN) VH Series Top Entry Through Hole PCB Header is a high-quality wire-to-board connector designed with 8 male contacts arranged in a single row at a 3.96 mm pitch. This shrouded header ensures secure and correct mating for electronic assemblies requiring signal and power transmission.
The housing is manufactured from durable polyamide (PA66 UL94V-0) material, providing excellent heat resistance and electrical insulation. Brass contacts with tin plating guarantee reliable conductivity and corrosion resistance. The header is designed for through hole PCB mounting suitable for boards with a thickness of 1.6 mm, making it versatile for multiple industrial applications.
Operating over a wide temperature range of -25 to 85 degrees Celsius, this JST VH Series header can be employed in diverse industrial, laboratory, electronics manufacturing, and power supply environments. Its top entry orientation and shrouded design offer protection and ease of use during assembly and operation.
The friction-lock mechanism secures the contact and prevents unintended disconnection, ideal for robust and continuous industrial electrical contacts. This component is compatible with JST VH Series crimp housings, facilitating easy wire termination and ensuring a secure wire-to-board connection.
The connector supports a current capacity of 10 amperes suitable for various power and signal circuits. Shrouded and male contact design optimize safety and correct orientation. Suitable for use in electronics manufacturing, automotive electronics, industrial machines, and power supply systems.
High reliability under demanding electrical and environmental conditions ensures long service life. Manufactured in Indonesia with quality control to meet industry standards. Explore more high-quality PCB connectors and related electronic components from JST and other leading brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The JST B8P-VH(LF)(SN) PCB header supports a current rating of 10A, making it suitable for various signal and power applications.
This model features a contact pitch of 3.96 mm, which is standard for many PCB connectors.
The operating temperature range for this connector is from -25°C to 85°C, allowing for use in diverse environments.
The housing is made from polyamide (PA66 UL94V-0), while the contacts are brass plated with tin for conductivity and corrosion resistance.
This header is designed with 8 male contacts arranged in a single row.
This model supports through hole mounting, which is suitable for PCBs with a thickness of 1.6 mm.
Yes, it is compatible with JST VH Series crimp housings, facilitating easy wire termination and assembly.
The contacts in this model are designed for top entry orientation, which helps ensure correct mating during assembly.
The voltage rating for this connector is 250V, suitable for a range of electrical applications.
This model uses solder termination, which is common for securing connections on PCBs.
The shrouded design of this header protects against incorrect mating and enhances safety during use.
This connector is manufactured in Indonesia, adhering to industry standards for quality control.
