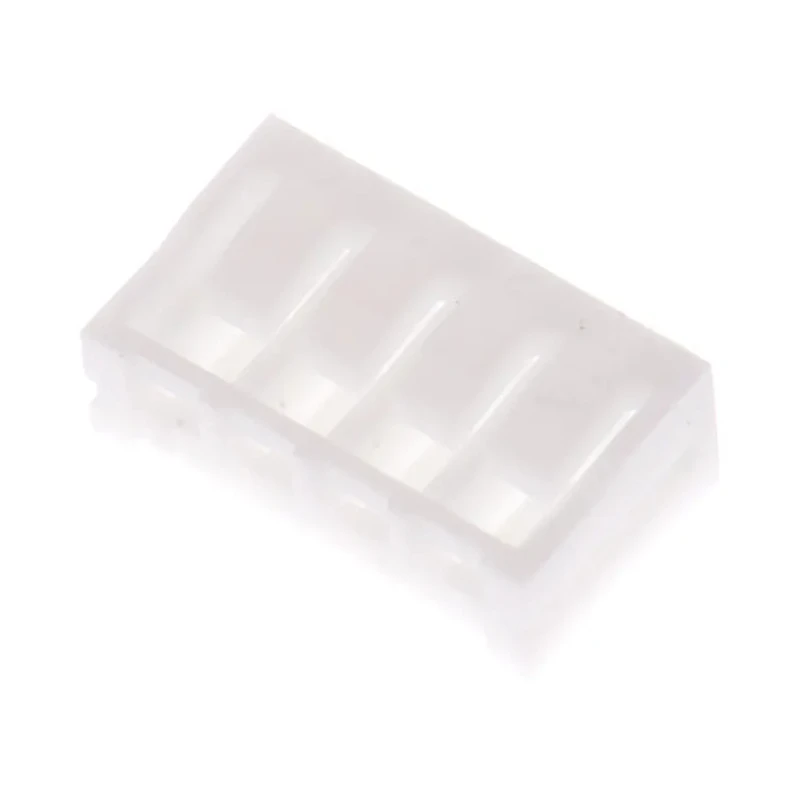

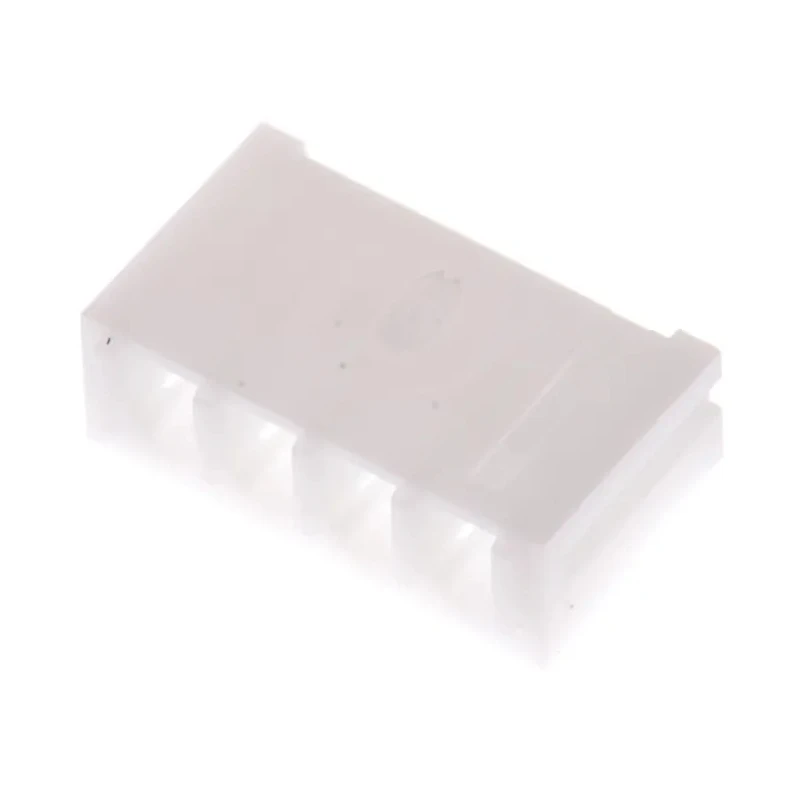

JST SZN Female Connector Housing 1.5 mm Pitch 4 Way 1 Row Straight 4P-SZN
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JST |
| Orientation | Straight |
| Length | 7mm |
| Model | 4P-SZN |
| Width | 2.4mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | SZN |
| Number of Rows | 1 |
| Pitch | 1.5mm |
| For Use With | Crimp Connector, Board-In Connector |
| Number of Contacts | 4 |
| Connector Gender | Female |
Key Features
- Offers high-density mounting with a slim, low-profile design.
- Constructed from durable polyamide housing material.
- Designed for easy insertion and secure locking of contacts.
- Compatible with crimp and board-in connectors for versatile use.
- Manufactured in Japan ensuring quality and reliability.
- Connector gender is female, oriented straight for cable mount applications.
- No specific standards or approvals mentioned for this component.
Product Description
JST 4P-SZN female connector housing is a highly efficient and economical 1.5 mm pitch board-in type connector housing designed for cable mounting. The 4 way 1 row configuration offers a compact and slim profile that is ideal for high-density applications where space saving is crucial.
The housing material is polyamide, selected for durability and reliable insulation. Its design supports easy insertion and secure locking of the corresponding contacts to ensure stable electrical connections in electronic and electrical assemblies.
This connector housing is compatible for use with crimp connectors and board-in connectors, making it versatile for various industrial and commercial electronics applications.
With a length of 7 mm and width of 2.4 mm, this component fits neatly into compact PCB designs and wiring harnesses. Its female connector gender and straight orientation provide straightforward cable connections suitable for standard electronic assemblies.
Manufactured in Japan, the JST 4P-SZN connector housing meets quality expectations for industrial, electronic component manufacturing, automation, and telecommunications sectors. It does not carry specific certifications or approvals as per the source data.
Offers high-density mounting with a slim, low-profile design. Constructed from durable polyamide housing material. Designed for easy insertion and secure locking of contacts. Compatible with crimp and board-in connectors for versatile use.
Length of 7 mm and width of 2.4 mm for compact installation. Manufactured in Japan ensuring quality and reliability. Connector gender is female, oriented straight for cable mount applications. No specific standards or approvals mentioned for this component.
This connector housing is ideal for electronics manufacturing, power connectors, telecommunications equipment assembly, and PCB wiring applications. Browse our Electronics Components category on EnvMart for more Connector Housings and related accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The JST 4P-SZN connector housing has a pitch size of 1.5 mm.
This model features a straight orientation, designed for cable mount applications.
The housing is constructed from durable polyamide material, providing reliable insulation.
This connector housing supports 4 contacts in a 1 row configuration.
The connector housing has a length of 7 mm and a width of 2.4 mm.
Yes, it is compatible with crimp connectors and board-in connectors, making it versatile for various applications.
This connector housing is manufactured in Japan, ensuring quality and reliability.
It is suitable for electronics manufacturing, power connectors, telecommunications equipment assembly, and PCB wiring applications.
The design allows for easy insertion and secure locking of the contacts, ensuring stable electrical connections.
The series name of this connector housing is SZN.
The JST 4P-SZN connector housing has 1 row.
It supports cable mounting, making it suitable for various electronic assemblies.
