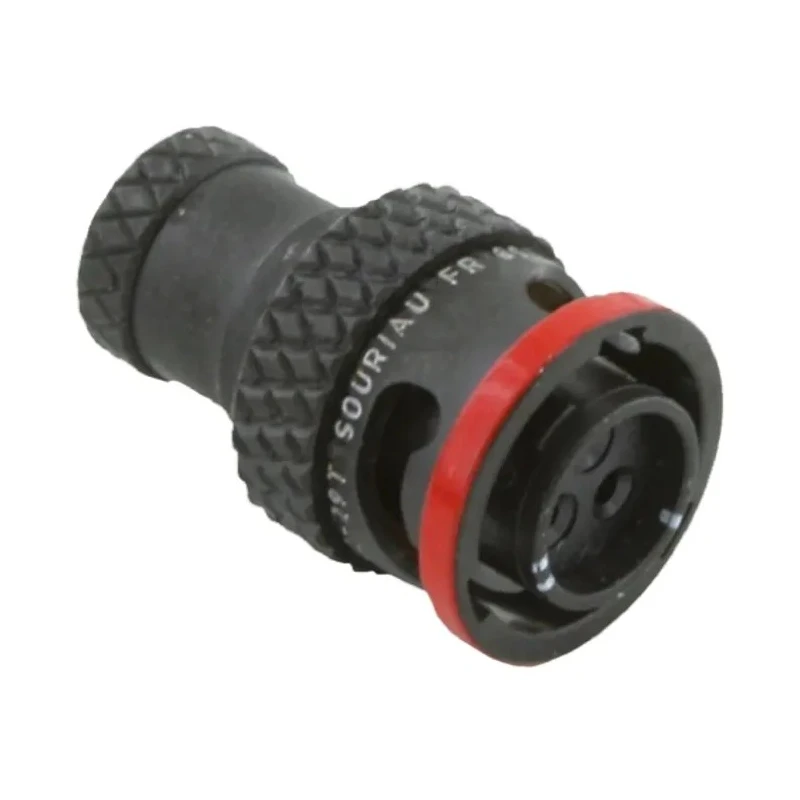

Souriau Sunbank by Eaton Circular Connector, 3 Contacts, Cable Mount, Standard Size, Plug Female, IP67, 1000V 8STA60235SN

Souriau Sunbank by Eaton 8STA60235SN is a high-performance circular connector designed for demanding industrial and motorsport environments. It is a plug type connector with 3 female contacts, mounted for cable use, and built to meet MIL-DTL-38999 specifications. Its robust aluminium alloy housing with conductive black zinc plating offers excellent resistance to vibration, shock, and harsh conditions, making it ideal for Formula 1, Moto GP, WRC, and other high-performance applications.

This standard size shell connector operates at voltages up to 1000V and current ratings of 5A. It features a bayonet mating type with a quick 1/3 turn locking mechanism that provides both secure and rapid connections. The contacts are made of copper alloy with gold plating to ensure high conductivity and corrosion resistance. The connector's IP67 rating guarantees protection against dust ingress and immersion in water for up to 30 minutes at a depth of 1 metre.

Designed to operate over a wide temperature range from -55°C to 175°C, the connector is suitable for extreme temperature environments often encountered in motorsport and military applications. The body uses a colour-coded band for easy identification and includes a grommet and liquid silicone rubber seals to maintain environmental protection.

Souriau's 8STA series connectors are trusted in aviation, military, automotive, and industrial sectors for their reliability in harsh environments. This model is supplied complete with contacts and an extraction tool for ease of installation and maintenance.

The 8STA series is intended for motorsport and harsh conditions applications. Includes cable mount standard size shell 2 plug with 3 female contacts. Rated for 1000V voltage and 5A current capacity. Body is aluminium alloy with black conductive zinc plating.

Bayonet lock mating with audible click for secure connection. Gold-plated copper contacts provide durability and excellent conductivity. IP67 rated for dust tight and water immersion protection. Operating temperature range from -55°C to 175°C.

Colour-coded banding for easy assembly identification.

Ideal for industrial, military, UAV, ground vehicles, and motorsport applications requiring compact, vibration and shock-resistant circular connectors. Explore the range of Industrial Circular Connectors at EnvMart for your high-reliability connection needs.
