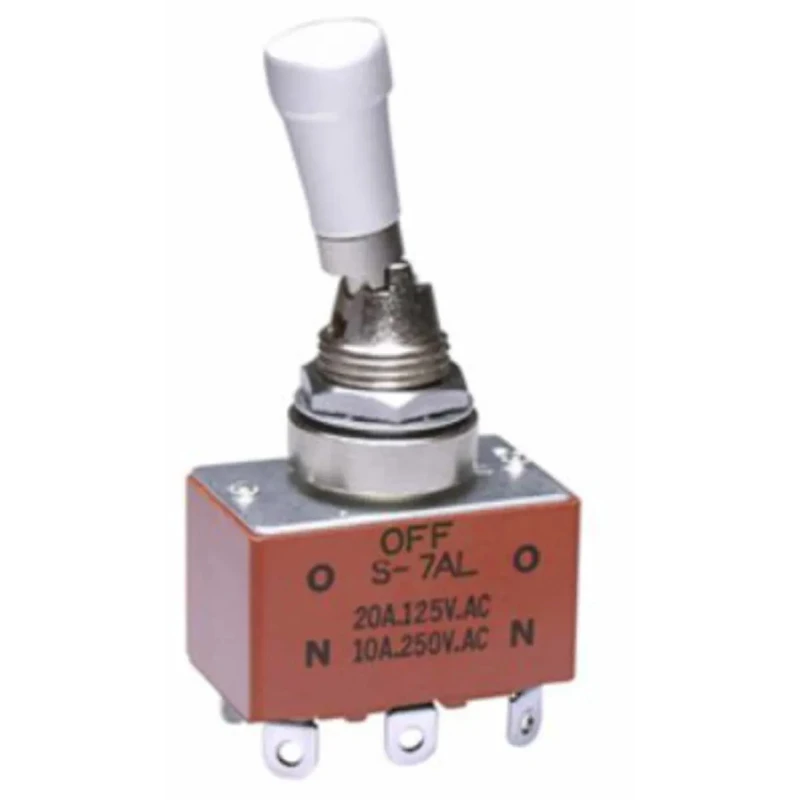

NKK Switches Toggle Switch Panel Mount On-Off-On DPDT 20A 30V DC 125V AC S7AL
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | NKK Switches |
| Height | 69.1mm |
| Length | 31.2mm |
| Model | S7AL |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | S |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Switch Configuration | DPDT |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 12.5 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA (File No. 023535-0-000), UL (File No. E44145) |
| Switch Operation | On-Off-On |
| Actuator Length | 23.5mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 20A |
| Mechanical Life | 30000Operations |
| Contact AC Voltage | 125V ac |
| Actuator Material | Brass with Chrome Plated |
Key Features
- Panel mount type switch designed for robust electrical applications.
- Double Pole Double Throw (DPDT) switch operation with On-Off-On circuit.
- IP67 rated splash proof and lever lock panel seal for reliable protection.
- Terminals are solder type made of brass with tin plating for durability.
- Operating temperature range from -30°C to +70°C for versatile environments.
- Mechanical life expectancy of 30,000 operations ensuring long-lasting performance.
- Compact panel cutout size of 12.5 mm for standard mounting.
- Compliant with CSA and UL safety approvals under file numbers 023535-0-000 and E44145 respectively.
Product Description
NKK Switches S7AL is a high-quality toggle switch designed for panel mounting with an On-Off-On DPDT switch operation suitable for industrial and commercial electrical applications. It supports a contact current rating of 20A and can operate reliably at DC voltage up to 30V and AC voltage up to 125V.
The switch features a robust brass actuator with chrome plating and solder terminals made of brass with tin plating ensuring excellent conductivity and corrosion resistance. Its mechanical life of 30,000 cycles makes it suitable for demanding environments.
Designed to meet the IP67 IP rating, this toggle switch is splash-proof and features a lever lock panel seal, offering excellent protection against dust and water ingress. The operating temperature range of -30°C to +70°C allows for use in diverse climatic conditions.
The compact panel cutout size of 12.5 mm ensures easy integration in electrical panels. Additionally, it complies with important safety standards including UL and CSA certifications for enhanced reliability and safety assurance.
This product is ideal for use in electrical automation, industrial control panels, machinery, and various electronic equipment applications requiring dependable switching solutions.
Panel mount type switch designed for robust electrical applications. Double Pole Double Throw (DPDT) switch operation with On-Off-On circuit. IP67 rated splash proof and lever lock panel seal for reliable protection. Terminals are solder type made of brass with tin plating for durability.
Operating temperature range from -30°C to +70°C for versatile environments. Mechanical life expectancy of 30,000 operations ensuring long-lasting performance. Compact panel cutout size of 12.5 mm for standard mounting. Compliant with CSA and UL safety approvals under file numbers 023535-0-000 and E44145 respectively.
Explore more quality Toggle Switches and electrical switching components in our Electronics & Electricals category tailored for industrial and automation needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this model is 20A.
It can operate at a DC voltage of up to 30V and an AC voltage of up to 125V.
This toggle switch has a mechanical life expectancy of 30,000 operations.
The switch is rated IP67, making it splash-proof and resistant to dust ingress.
The switch has a height of 69.1 mm and a length of 31.2 mm, with a panel cutout size of 12.5 mm.
The actuator is made of brass with chrome plating, and the terminals are solder type made of brass with tin plating.
The operating temperature range is from -30°C to +70°C.
It features a Double Pole Double Throw (DPDT) switch configuration with an On-Off-On operation.
Yes, it complies with CSA and UL safety approvals under file numbers 023535-0-000 and E44145 respectively.
This switch is designed for panel mounting.
The switch operates in an On-Off-On configuration, allowing for versatile control options.
The actuator length is 23.5 mm.
