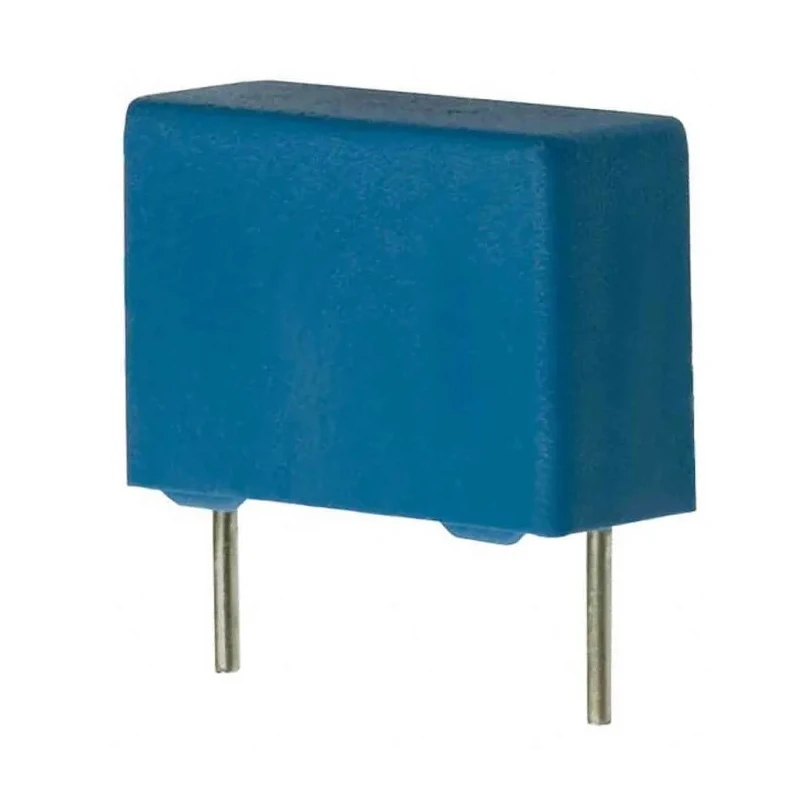

TDK Film Capacitor Through Hole 150 nF 1.25 kV AC 1.25 kV DC AEC-Q200 Rev D B32654A7154J000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor Through Hole 150 nF 1.25 kV AC 1.25 kV DC AEC-Q200 Rev D B32654A7154J000



Category Film Capacitors Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	21mm
Length	31.5mm
Model	B32654A7154J000
Width	11mm
Mount Type	Through Hole
Series	B32654
Maximum Operating Temperature	110°C
Capacitance	150nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	1.25kV ac
Rated DC Voltage	1.25kV dc
Lead Pitch	27.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D

Key Features

Through hole mount type with 2 pins and 0.8 mm lead diameter.
Capacitance of 150 nF suitable for electronic ballast and switch-mode power supply applications.
Rated for 1.25 kV AC and 1.25 kV DC voltage for high voltage tolerance.
Lead pitch of 27.5 mm and dimensions of 31.5 mm length, 21 mm height, and 11 mm width.
Compliant with automotive standard AEC-Q200 Rev D and RoHS and UL approvals.
Maximum operating temperature up to 110°C for reliable operation in harsh environments.
Manufactured with high pulse strength and very low inductance features.
Halogen-free options available upon request for environmental compliance.

Product Description

TDK B32654A7154J000 is a high-quality film capacitor designed with polypropylene dielectric for superior electrical performance. This through-hole mount capacitor has a capacitance of 150 nF and is rated for 1.25 kV AC and DC voltages, ensuring reliable high-voltage operation.

Featuring parallel wire leads with 0.8 mm diameter and a lead pitch of 27.5 mm, it accommodates demanding PCB mounting requirements. Its compact size measures 31.5 mm in length, 21 mm in height, and 11 mm in width, making it suitable for space-constrained electronic assemblies.

This capacitor complies with automotive standard AEC-Q200 Rev D, making it ideal for automotive electronics and other applications requiring stringent quality. Its robustness is supported by a maximum operating temperature of 110°C, providing stability in harsh thermal environments.

The capacitor exhibits high pulse strength and very low inductance, enhancing its suitability in switch-mode power supplies, electronic ballasts for lighting, and precision industrial electronic circuits. RoHS-compliant and UL-approved, it meets global safety and environmental standards.

Halogen-free versions are also available to support environmental sustainability initiatives. Customizations such as lead-free tinned wires and special lead lengths are available on request to adapt to specific application needs.

Through hole mount provides secure PCB installation. Rated 1.25 kV AC/DC ensures high voltage tolerance. 150 nF capacitance suitable for filter and coupling applications. AEC-Q200 automotive compliance for enhanced reliability.

High pulse strength ideal for power electronics. Operating temperature up to 110°C for thermal resilience. Low inductance optimizes performance in high-frequency circuits. RoHS and UL approvals guarantee safety and compliance.

Halogen-free options support environmentally friendly designs.

This TDK film capacitor is a versatile component crucial for electronic manufacturing, industrial controls, automotive electronics, and high-reliability applications. Explore our complete range of Film Capacitors and other passive components on EnvMart for superior electronic assembly solutions.
