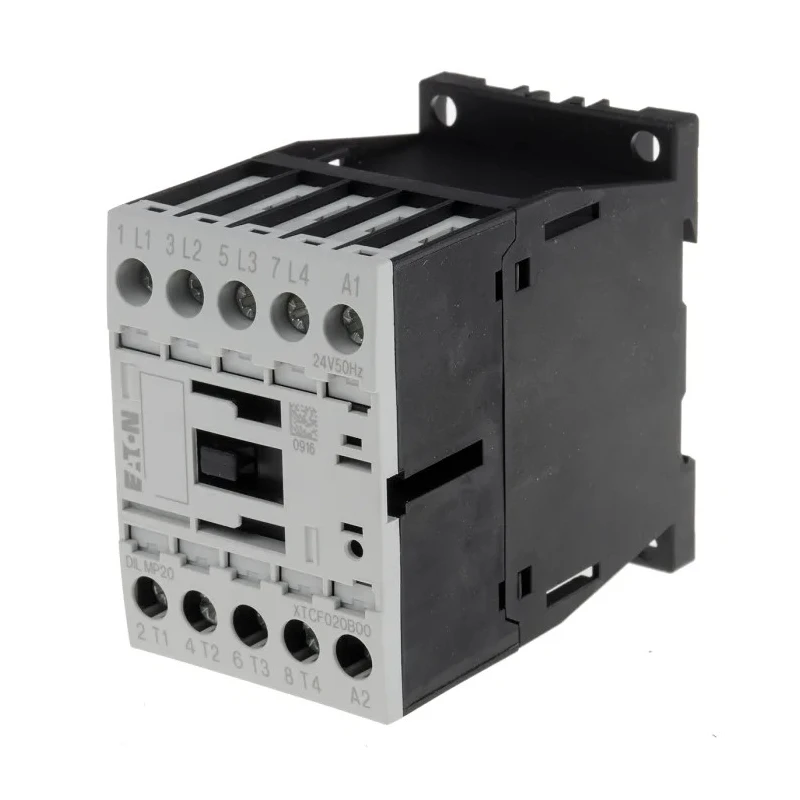

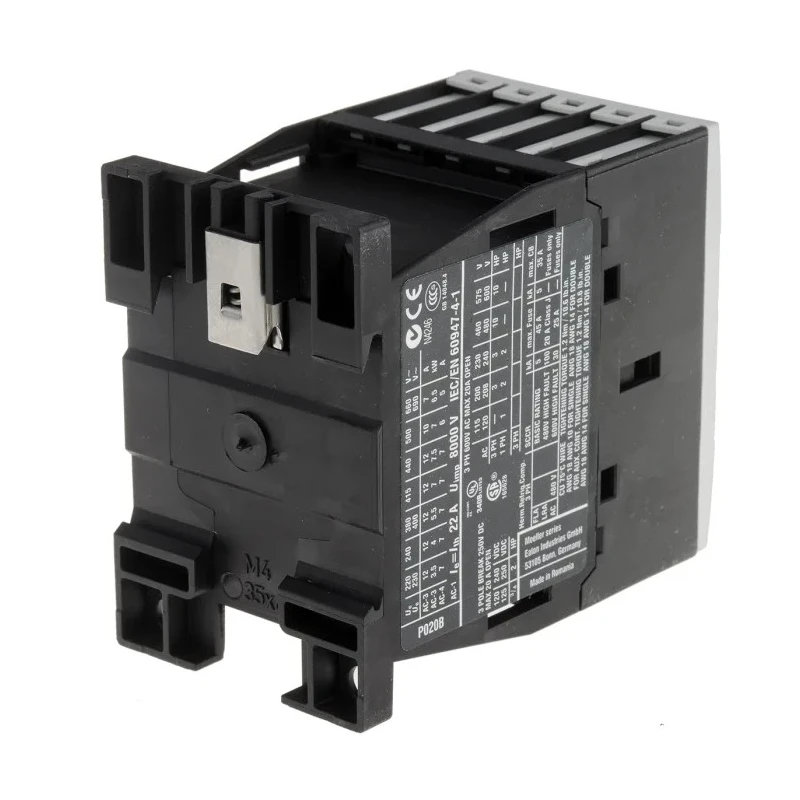

Eaton DILM Contactor 24V AC Coil, 4-Pole, 20 A, 5.5 kW, 4 NO Contacts, 400V AC 276957 DILMP20(24V50HZ)

Free Delivery in India | Lowest Global Shipping Charges

Eaton DILM Contactor 24V AC Coil, 4-Pole, 20 A, 5.5 kW, 4 NO Contacts, 400V AC 276957 DILMP20(24V50HZ)

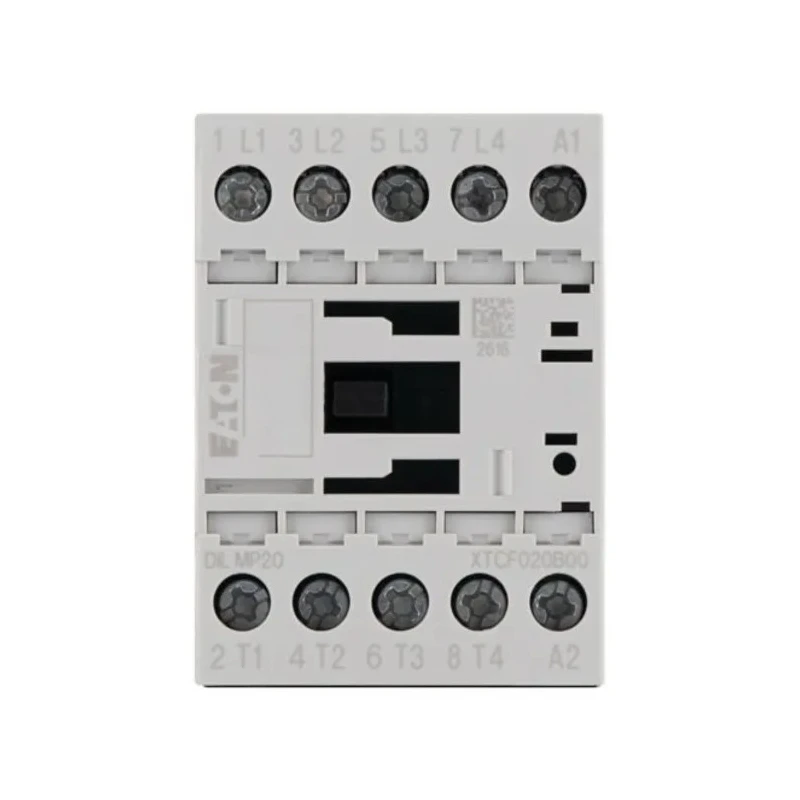

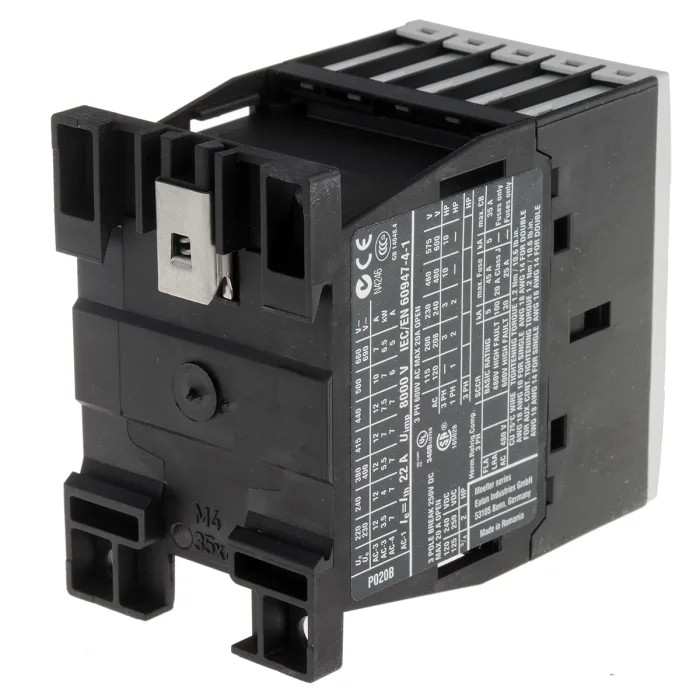

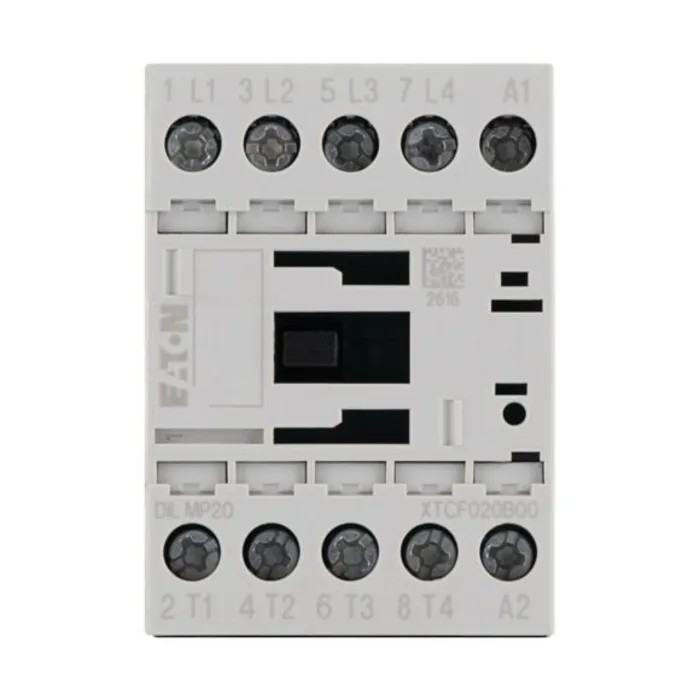

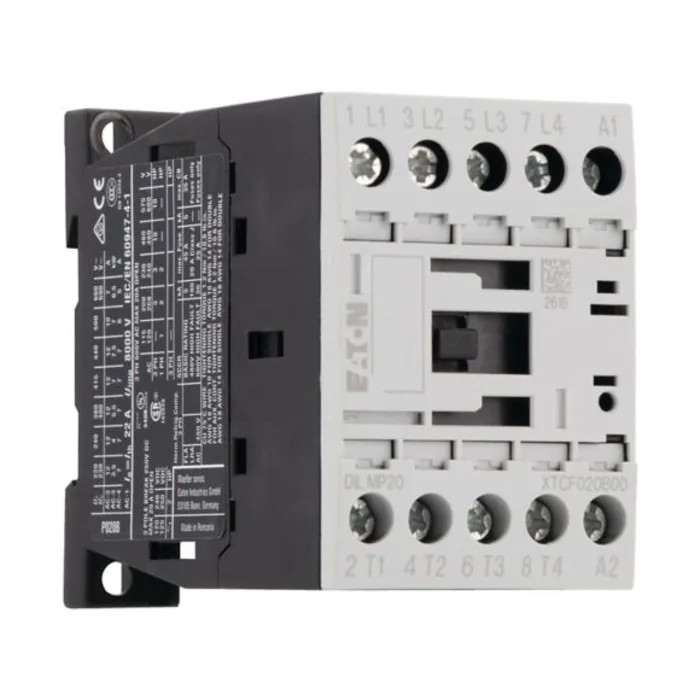

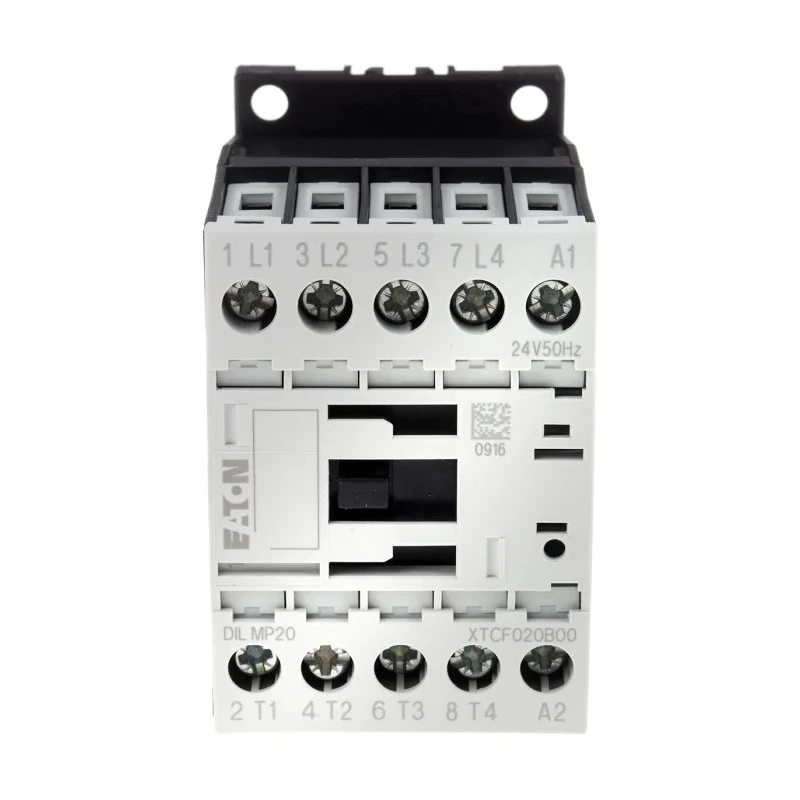

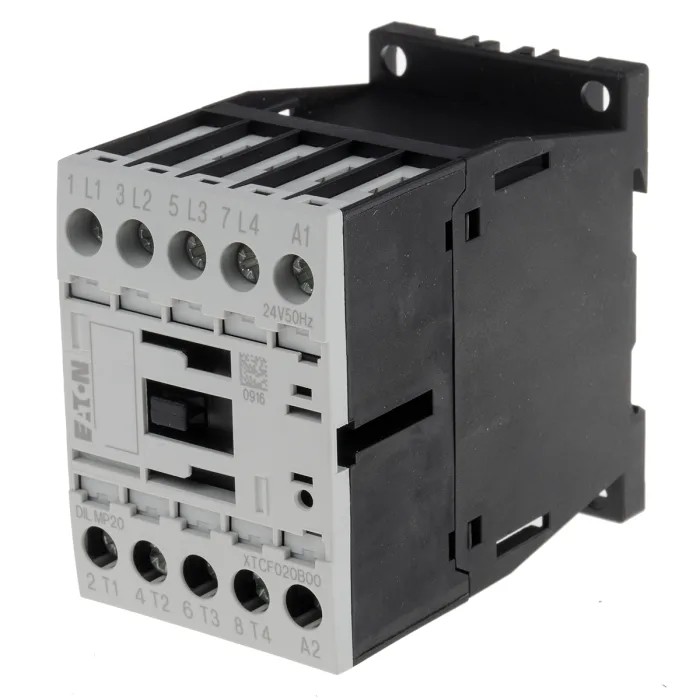

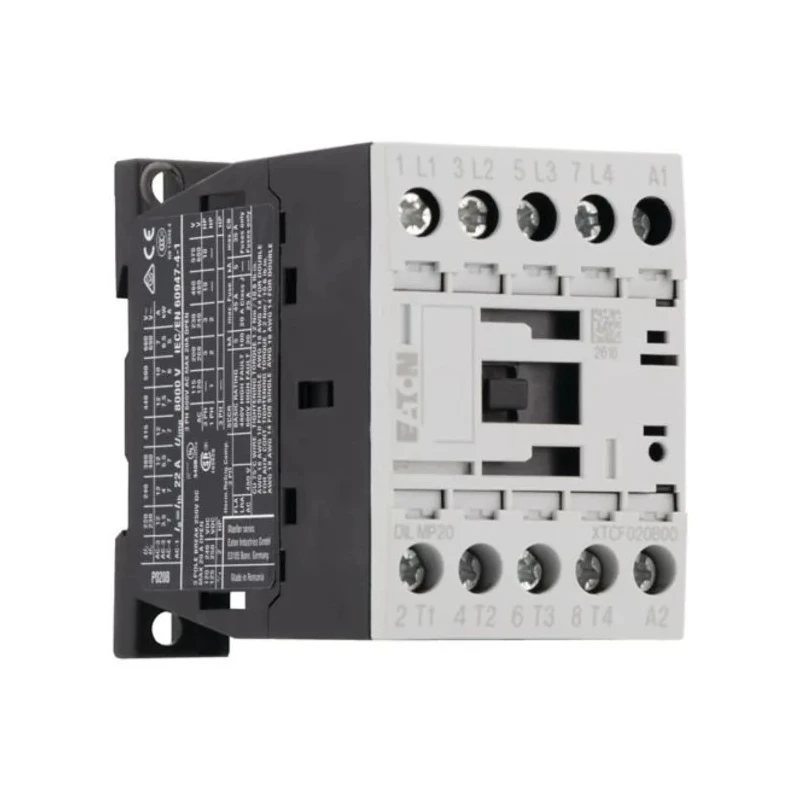

Name: Eaton DILM Contactor 24V AC Coil, 4-Pole, 20 A, 5.5 kW, 4 NO Contacts, 400V AC 276957 DILMP20(24V50HZ)
Brand: Eaton
SKU: 104138
Price: 102.36 USD
Availability: InStock



Category Contactors Brand Eaton Condition New

Specifications

Country of Origin	India
Brand	Eaton
Function	Motor Control, Resistive Load
Length	68mm
Model	276957 DILMP20(24V50HZ)
Depth	117mm
Width	45mm
Mount Type	DIN Rail
Series	DILM
Power Rating	5.5kW
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	4
Standards/Approvals	EN 60947
Contact Voltage	400V ac
Coil Voltage	24V ac
Normal State Configuration	4 NO
Contact Current	20A
Auxiliary Contact Configuration	1 NC
Operational Current Ie	20A
Control Circuit Voltage Uc	24V ac
Contactor Application	Motor Control
Pole and Throw Configuration	4
Cooper Bussmann 4A T Cartridge Fuse, 14 x 51mmBrand	Cooper Bussmann

Key Features

Features a 4 NO (normally open) contact configuration for reliable switching.
Operates with a coil voltage of 24V AC and a contact voltage rating of 400V AC.
Equipped with screw terminals for stable wire connection and DIN rail mount for easy installation.
Operates efficiently in temperatures ranging from -25°C to 60°C.
Rated for 5000 mechanical operations per hour with an impulse withstand voltage of 8000V AC.
Mechanical shock resistant up to 10g, ensuring durability in demanding environments.
Designed according to EN 60947 standards for safety and performance.
Supports motor control and resistive load functions with an auxiliary contact configuration of 1 NC.

Product Description

The Eaton 276957 DILMP20(24V50HZ) Contactor is a robust industrial component designed for reliable motor control and resistive load applications. It features a 24V AC coil and four poles with a contact current rating of 20 A, supporting a power rating of up to 5.5 kW. The device uses screw terminals for secure wiring and mounts easily on DIN rails, making it suitable for diverse electrical control systems.

This contactor can operate optimally in harsh environments, handling temperatures from -25°C to 60°C, and its rated impulse withstand voltage of 8000V AC protects against transient surges. It supports mechanical operation up to 5000 cycles per hour, ideal for fast-paced setups requiring frequent switching. The device offers mechanical shock resistance up to 10g, enhancing its durability in challenging industrial operations.

Compliant with EN 60947 standards, this contactor includes 4 normally open (NO) contacts and 1 normally closed (NC) auxiliary contact, fitting typical control circuit needs. Its 400V AC contact voltage rating ensures compatibility with standard industrial power supplies.

Applications include industrial motor control systems, automation equipment, lighting control, traffic management systems, and vending machines. The Eaton contactor ensures safe switching, protecting operators during installation and maintenance.

Reliable motor control with 24V AC coil voltage and 20 A contact current. Durable screw terminal connections and DIN rail mount for easy installation. Wide operating temperature range from -25°C to +60°C for harsh conditions.

High mechanical operation frequency of 5000 cycles/hour for demanding applications. Robust impulse voltage resistance of 8000V AC ensures protection against surges. Mechanical shock resistance of up to 10g for reliable performance.

Compliant with EN 60947 certification for industrial safety and performance. Suitable for motor control, lighting, and automation applications. Explore more Contactors and control gear components to optimize your industrial electrical systems with EnvMart.
