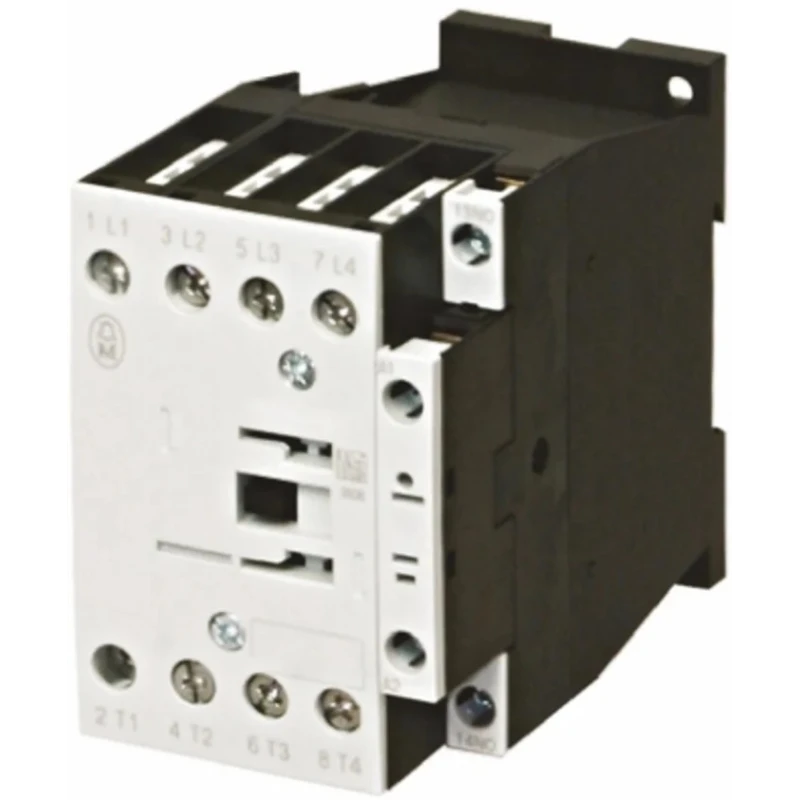

Eaton DILM Contactor 110V AC Coil 4-Pole 45A 11kW Motor Control 109819 DILMP45-10(110V50HZ,120V60HZ)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | 109819 DILMP45-10(110V50HZ,120V60HZ) |
| Depth | 138mm |
| Width | 58mm |
| Mount Type | DIN Rail |
| Series | DILM |
| Power Rating | 11kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 4 |
| Standards/Approvals | EN 60947 |
| Contact Voltage | 400V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 4 NO |
| Contact Current | 45A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 45A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 4 |
Key Features
- Designed for reliable motor and resistive load control.
- Features a DIN rail mount type for easy installation.
- Equipped with one auxiliary contact configured as 1 NO.
- Supports contact voltage of 400V AC and power rating of 11 kW.
- Constructed for an operating temperature range from -25°C to 60°C.
- Utilizes screw clamp terminals for secure connections.
- Complies with EN 60947 standards for safety and performance.
- Compact dimensions with length 85mm, width 58mm, and depth 138mm.
Product Description
Eaton 109819 DILMP45-10(110V50HZ,120V60HZ) is a robust DILM series 4-pole contactor designed for reliable motor control and resistive load switching with a coil voltage of 110V AC and a contact current capacity of 45A with an operating contact voltage of 400V AC and power rating of 11 kW.
This contactor offers a DIN rail mount type, making installation straightforward in industrial electrical panels. It incorporates one auxiliary contact (1 NO) and uses screw clamp terminals for strong electrical connections. Its operational temperature range spans from -25°C to 60°C to endure demanding industrial environments with assurance.
Built to comply with EN 60947 standards, the contactor supports motor control applications where high reliability and durability are essential. The compact size (85 mm length, 58 mm width, and 138 mm depth) is optimized for efficient space utilization.
The DILM series contactors by Eaton are noted for high current handling abilities and long operational life, with technology suited for integration with PLCs and energy-efficient operation. The coil includes an integrated suppressor circuit for reducing electrical noise.
Typical applications include factory automation, railway systems, electric motor controls, lighting, and mechanical engineering industries. Eaton's contactors provide reliable switching performance in a variety of electrical control and automation installations.
Designed for reliable motor and resistive load control. Features a DIN rail mount type for easy installation. Equipped with one auxiliary contact configured as 1 NO. Supports contact voltage of 400V AC and power rating of 11 kW.
Constructed for an operating temperature range from -25°C to 60°C. Utilizes screw clamp terminals for secure connections. Complies with EN 60947 standards for safety and performance. Compact dimensions with length 85mm, width 58mm, and depth 138mm.
Explore high-quality Contactors and electrical control products for your industrial applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 11 kW.
It has a contact current capacity of 45A.
The coil voltage for this model is 110V AC.
The dimensions are 85 mm in length, 58 mm in width, and 138 mm in depth.
This contactor features a DIN rail mount type for easy installation.
It operates within a temperature range from -25°C to 60°C.
This model has 4 poles.
The contact voltage supported is 400V AC.
It utilizes screw clamp terminals for secure connections.
It complies with EN 60947 standards for safety and performance.
This contactor is equipped with one auxiliary contact configured as 1 NO.
It is designed for motor control and resistive load applications.
