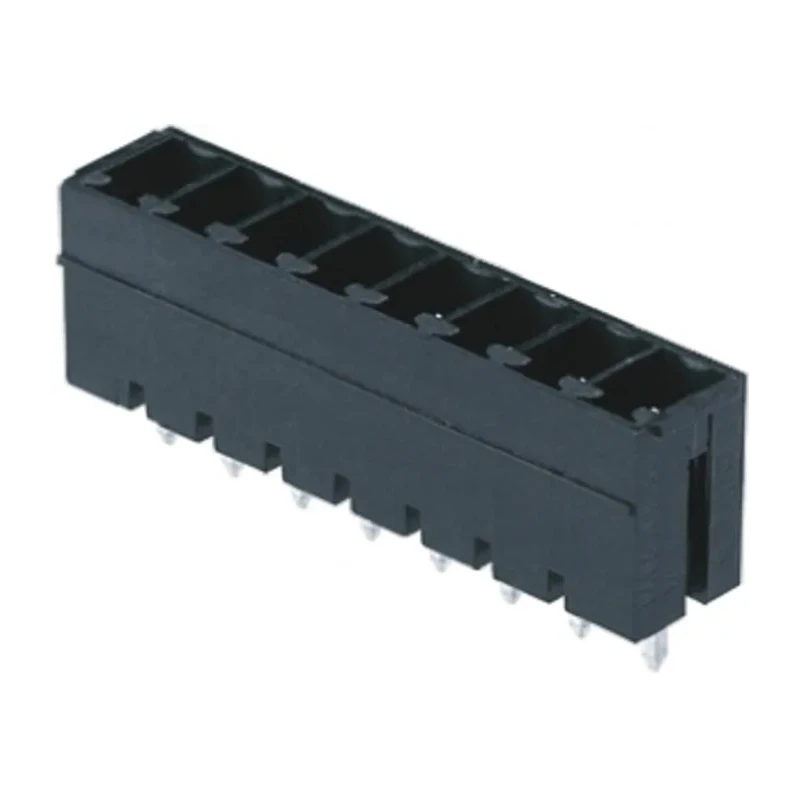

Weidmüller OMNIMATE SC Series Pluggable Terminal Block 8-Contact 3.81 mm Pitch 1 Row 320V 17.5A 1863240000

Weidmüller 1863240000 OMNIMATE SC Series Pluggable Terminal Block is a high-quality electronic component designed for robust and efficient circuit connections. It features 8 contacts arranged in a single row with a 3.81 mm pitch, supporting a nominal current of 17.5A and voltage rating of 320V. Its black glass filled liquid crystal polymer housing provides excellent mechanical stability and electrical insulation.

This Pluggable Terminal Block offers male connector gender with a straight orientation and employs solder wire connection method. The compact form factor has a depth of 7.07 mm, width of 31.17 mm, and a pin length of 3.2 mm designed for through hole soldering techniques such as reflow or wave soldering.

Certified with CSA and cURus standards, this component ensures reliable performance in industrial, electronic manufacturing, and automated assembly applications. Its German country of origin reflects high manufacturing standards.

The terminal block is ideal for PCB connections requiring high current capacity and secure mating. It is widely used in electronic components assemblies, power connectors, industrial control systems, and automation devices.

The terminal block has 8 contacts arranged in one row for efficient PCB connectivity. The pitch between contacts is precisely 3.81 mm for standard compatibility. Maximum current handling capacity is 17.5 Amperes ensuring reliable operation.

Supports voltage rating up to 320 Volts for various electronic applications. Constructed with black glass filled liquid crystal polymer housing providing durability. Male gender connector with straight orientation for easy installation.

Wire connection is solder type ensuring secure electrical connections. Complies with CSA and cURus standards for safety and quality assurance. Compact design with depth of 7.07 mm and width of 31.17 mm fits tightly in assemblies.

Pin length of 3.2 mm suitable for through hole reflow or wave soldering processes. Explore a wide range of Weidmüller electronic components and connectors at EnvMart for advanced industrial and electronic applications.
