| Country of Origin | Taiwan |
|---|---|
| Voltage | 50V dc |
| Capacitance Range | 1 pF ‒ 100 μF |
| Brand | Wurth Elektronik |
| Height | 0.8mm |
| Length | 3.2mm |
| Width | 1.6mm |
| Mounting Style | SMT-Chip |
| Mount Type | Surface |
| Series | WCAP-CSGP |
| Termination | Cu/Ni/Sn |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 1nF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Package/Case | 1206 |
| Dielectric | X7R |
| Suppression Class | Class II |
| Recommended soldering | Reflow soldering |
| Voltage range (UR) | 6.3 ‒ 100 V(DC) |
| Ceramic | NP0 (Class I), X5R (Class II), X7R (Class II) |

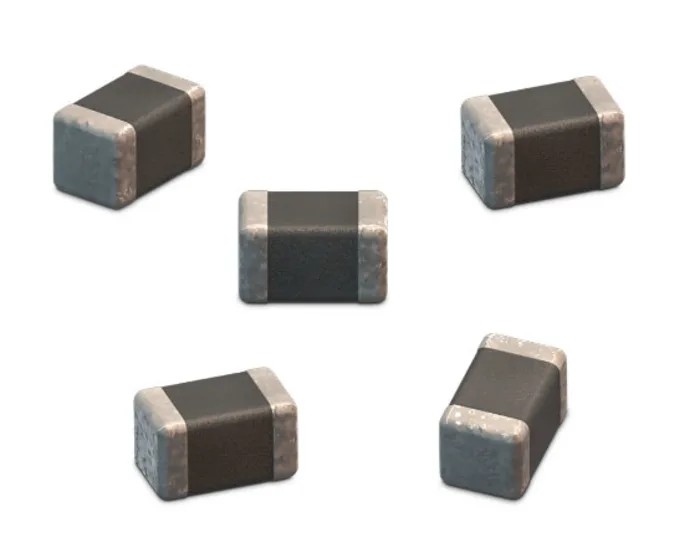

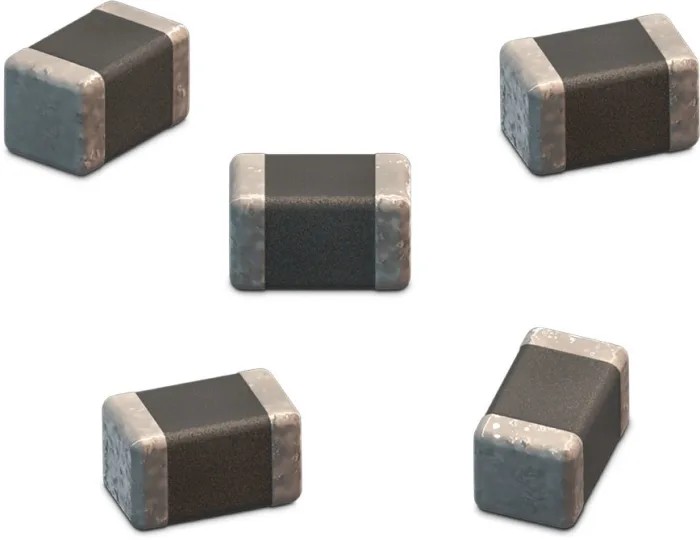

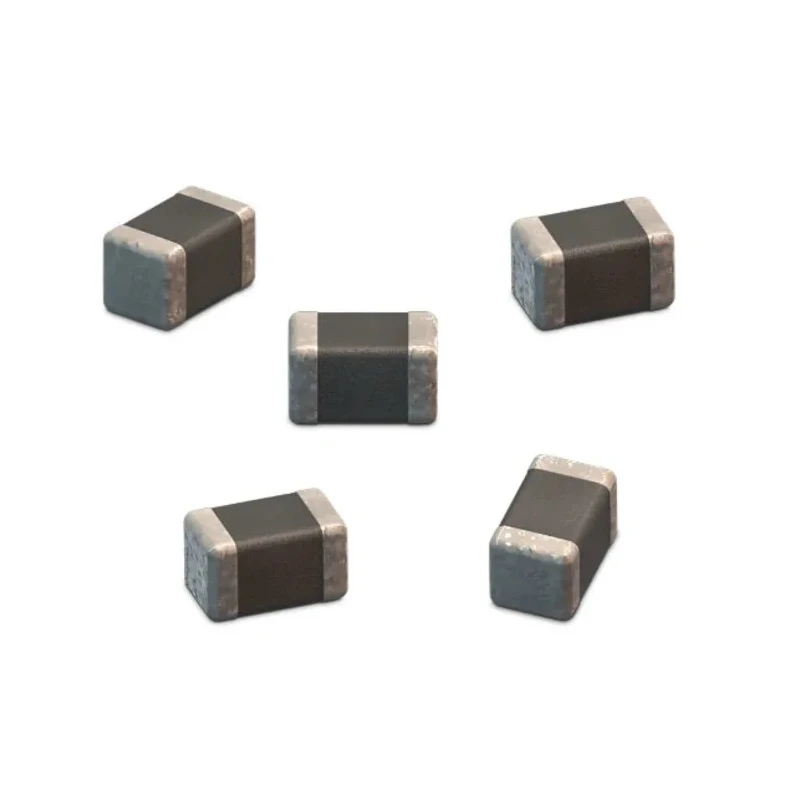

Wurth Elektronik 885012208075 Multilayer Ceramic Capacitor is a surface mount device designed for high electrical precision and stability. It features a capacitance of 1 nF with a voltage rating of 50V dc and tolerance of ±10 %. The component is manufactured in a 1206 case size, measuring 3.2mm in length, 1.6mm in width, and 0.8mm in height, making it suitable for compact circuit designs.
This capacitor uses X7R dielectric material, offering a temperature coefficient that covers operating temperatures from -55°C to 125°C. The termination consists of Cu/Ni/Sn solderable contacts designed for reliable SMT mounting and optimal electrical connectivity.
The WCAP-CSGP series delivers excellent performance in passive electronic components, minimizing aging effects and maintaining capacitance stability in varied environments. This component is RoHS compliant and does not meet automotive standards, aligning with mainstream industrial and commercial electronics.
Typical applications include temperature compensation, signal coupling, noise decoupling, bypass filtering, smoothing of voltage supplies, and use in resonant circuits within industrial, commercial, and laboratory electronics.
This capacitor utilizes X7R dielectric technology ensuring stable performance under varied temperature conditions. Compact 1206 package size with dimensions 3.2mm length, 1.6mm width, and 0.8mm height. Designed for surface mounting with solder termination using Cu/Ni/Sn materials.
Operating temperature range from -55°C to 125°C suitable for demanding electronic applications. Class II suppression class with RoHS compliance guaranteeing environmental safety. Series WCAP-CSGP model ensures high performance with low aging characteristics for reliable circuits.
Applications include temperature compensation, coupling, decoupling, bypass, smoothing, filtering, and resonant circuits. Explore EnvMart's extensive range of electronic components including advanced Multilayer Ceramic Capacitors for your industrial, laboratory, or manufacturing needs.
