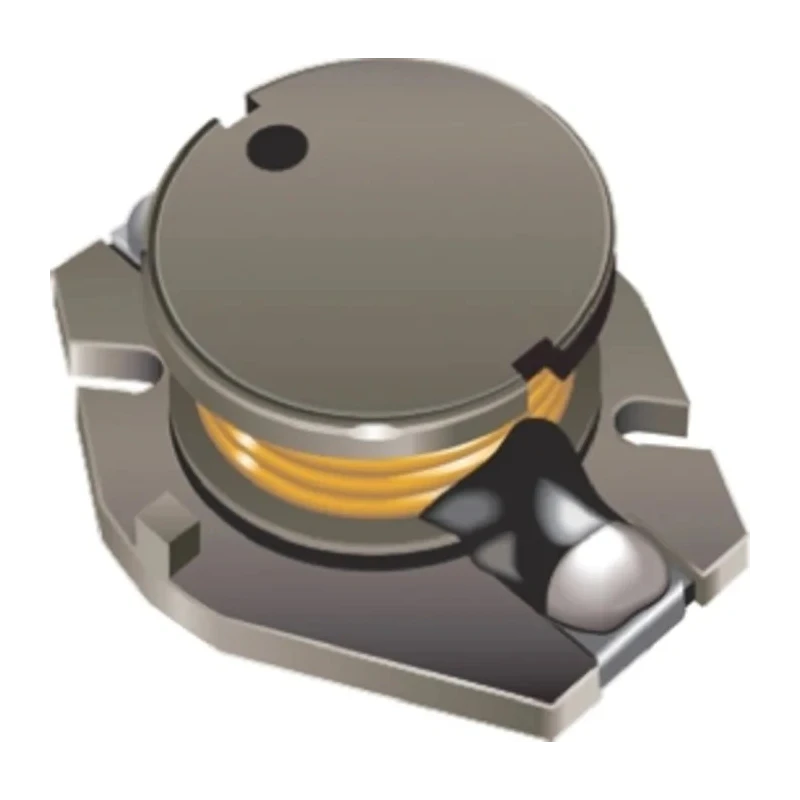

Bourns Wirewound Surface Mount Inductor SDR1806 47μH ±20% 2.5A Idc Ferrite DR Core 1806 Package
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 6.6mm |
| Length | 18.3mm |
| Model | SDR1806 |
| Depth | 14mm |
| Packaging | Reel |
| Series | SDR1806 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 47μH |
| Standards/Approvals | JEDEC, RoHS |
| Package/Case | 1806 |
| Maximum DC Current | 2.5A |
| Maximum DC Resistance | 95mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 9MHz |
| Minimum Quality Factor | 22 |
| Inductor Construction | Wirewound |
| BI Technologies Wire-wound SMD Inductor 47 μH ±20% Wire-Wound 2.6A IdcBrand | BI Technologies |
Key Features
- Compact 1806 package size with low profile and surface mount termination.
- High-quality ferrite DR core construction ensures effective magnetic performance.
- Inductance tolerance of ±20% suitable for general industrial applications.
- Maximum DC resistance is 95mΩ for efficient power handling.
- Wide operating temperature range from -40°C to 125°C.
- Maximum self-resonant frequency of 9MHz for frequency-sensitive circuits.
- Minimum quality factor of 22 ensures good signal integrity.
- Complies with JEDEC and RoHS standards for reliability and environmental safety.
Product Description
Bourns SDR1806 Wirewound Surface Mount Inductor SDR1806-470ML is a high-performance passive electronic component designed for power management applications. Featuring a 47μH inductance with a ferrite DR core, it provides reliable current handling up to 2.5 A DC. The 1806 package ensures a low profile of 6.6mm height and easy surface mount capability for compact PCB designs.
This wirewound inductor offers an inductance tolerance of ±20%, maximum DC resistance of 95mΩ, and can operate effectively within -40°C to 125°C temperature range, making it suitable for harsh industrial environments. Its high quality factor of at least 22 and maximum self-resonant frequency of 9MHz enable use in signal conditioning and power supply filtering.
Compliance with JEDEC and RoHS standards guarantees environmental conformity and component reliability. The moulded wirewound construction enhances mechanical strength, ideal for applications involving input and output stages of DC/DC converters and other power supplies.
Compact 1806 surface mount package with 18.3mm length and 14mm depth. Ferrite DR core material for efficient magnetic performance. Maximum DC current rating of 2.5 A suitable for moderate power circuits. Wide temperature range from -40°C to 125°C for industrial usage.
Inductance tolerance at ±20% provides acceptable manufacturing variance. High-quality factor minimum of 22 allows effective filtering and signal integrity. Wirewound construction with moulded finish offers durability and stable inductance.
Useful in power supplies, DC/DC converters, and other electronic components.
This Bourns inductor enhances your electronic assemblies for industrial, commercial, and automotive power electronics applications. Explore more high quality Surface Mount Inductors and related components at EnvMart for your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 47μH with an inductance tolerance of ±20%.
It has a maximum DC current rating of 2.5A, suitable for moderate power circuits.
The dimensions of the SDR1806 inductor are 18.3mm in length, 14mm in depth, and 6.6mm in height.
The maximum DC resistance is 95mΩ, which facilitates efficient power handling.
It operates effectively within a temperature range of -40°C to 125°C, making it suitable for harsh industrial environments.
The maximum self-resonant frequency is 9MHz, which is beneficial for frequency-sensitive circuits.
This model complies with JEDEC and RoHS standards, ensuring reliability and environmental safety.
The core material used in this inductor is Ferrite DR, which enhances its magnetic performance.
It features a wirewound construction, which contributes to its inductance stability and performance.
The minimum quality factor is 22, which ensures good signal integrity in applications.
This inductor is packaged in a reel, facilitating easy handling and application in surface mount technology.
It is suitable for applications involving power supplies, DC/DC converters, and other electronic components.
