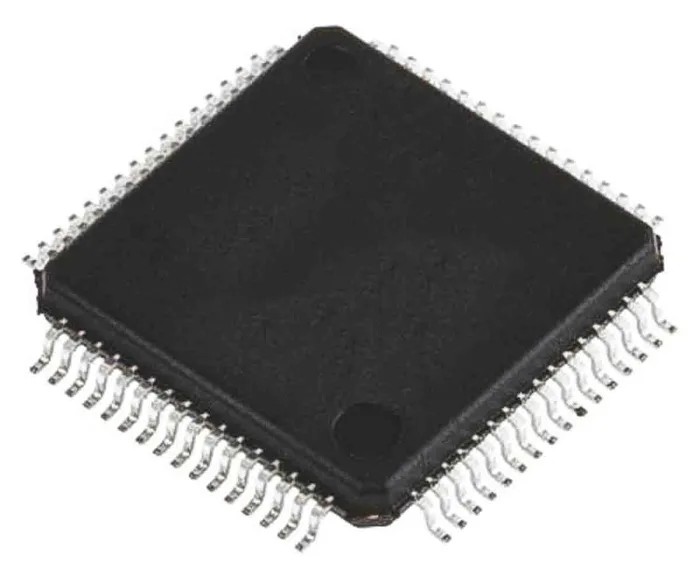

STMicroelectronics 32 bit ARM Cortex M0 Microcontroller 48 MHz 128kB FLASH 64-Pin LQFP STM32F071RBT6
Specifications
| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 10mm |
| Model | STM32F071RBT6 |
| Width | 10mm |
| Mount Type | Surface |
| Series | STM32F071RB |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| Pin Count | 64 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 455mW |
| Minimum Supply Voltage | 2V |
| Device Core | ARM Cortex M0 |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 48MHz |
| Analogue Comparators | 2 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 19 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 12 Bit |
Key Features
- Features ARM Cortex M0 32-bit RISC core operating up to 48 MHz.
- Includes 128kB Flash memory and 16kB SRAM for efficient program and data storage.
- Supports standard communication interfaces including I2C, SPI/I2S, HDMI CEC, and USART.
- Equipped with one 12-bit DAC with two channels and one 12-bit ADC for accurate analog signal processing.
- Operates over a wide voltage range from 2.0 to 3.6 V and temperature range from -40°C to 85°C.
- Integrated seven 16-bit timers, one 32-bit timer, and an advanced-control PWM timer enhance timing capabilities.
- Ideal for applications including user interfaces, handheld equipment, industrial controllers, and HVAC systems.
- Compact 64-pin LQFP surface mount package with dimensions 10mm x 10mm x 1.45mm.
Product Description
STMicroelectronics STM32F071RBT6 is a high-performance 32-bit ARM Cortex M0 Microcontroller operating at 48 MHz clock frequency, equipped with 128kB of Flash memory and 16kB SRAM. The device comes in a compact 64-Pin LQFP surface mount package measuring 10mm x 10mm x 1.45mm, designed for efficient integration in diverse electronic systems.
This microcontroller offers a rich set of peripherals, including two I2C interfaces, two SPI/one I2S interface, one HDMI CEC, and four USARTs, providing versatile communication options for embedded applications. It also features one 12-bit DAC with two channels and one 12-bit ADC, enabling precise analog signal conversion and control.
Operating voltage ranges from 2.0 V to 3.6 V and it supports operation in temperature zones from -40°C to 85°C, making it suitable for robust industrial and commercial environments. The microcontroller incorporates multiple timers, including seven 16-bit timers, one 32-bit timer, and an advanced PWM timer for precise timing and control functionalities.
The STM32F071RBT6 is well-suited for a variety of applications such as control systems, user interfaces, handheld electronic devices, audio/video receivers, digital TV, PC peripherals, gaming platforms, GPS devices, industrial automation, PLCs, inverters, scanners, alarm systems, video intercoms, and HVAC equipment.
ARM Cortex M0 core at 48 MHz frequency. 128kB Flash memory and 16kB SRAM for program and data storage. Multiple communication interfaces including I2C, SPI/I2S, HDMI CEC, USART. One 12-bit DAC with two channels and one 12-bit ADC for analog processing.
Wide operating voltage range from 2.0 V to 3.6 V. Operating temperature from -40°C to 85°C suitable for industrial environments. Seven 16-bit timers, one 32-bit timer, and advanced PWM timer for timing tasks. Compact 64-pin LQFP package with 10mm x 10mm footprint.
This STM32F071RBT6 microcontroller is engineered for reliability and versatility in industrial, laboratory, construction, HVAC, manufacturing, and commercial electronic applications. Explore more industrial components and Microcontrollers at EnvMart for enhanced system design and development.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F071RBT6 operates at a maximum clock frequency of 48 MHz.
It operates over a voltage range from 2.0 V to 3.6 V.
This model is equipped with 128kB of Flash memory for program storage.
The operating temperature range is from -40°C to 85°C, suitable for industrial environments.
It comes in a compact 64-pin LQFP surface mount package with dimensions of 10mm x 10mm x 1.45mm.
It supports multiple communication interfaces including I2C, SPI/I2S, HDMI CEC, and USART.
This microcontroller includes 16kB of SRAM for data storage.
It features one 12-bit DAC with two channels and one 12-bit ADC for accurate analog signal processing.
It incorporates four timers, including seven 16-bit timers and one 32-bit timer.
The height of this microcontroller is 1.45mm.
The instruction set architecture used in this model is RISC.
It is well-suited for applications such as control systems, user interfaces, handheld devices, and HVAC systems.
