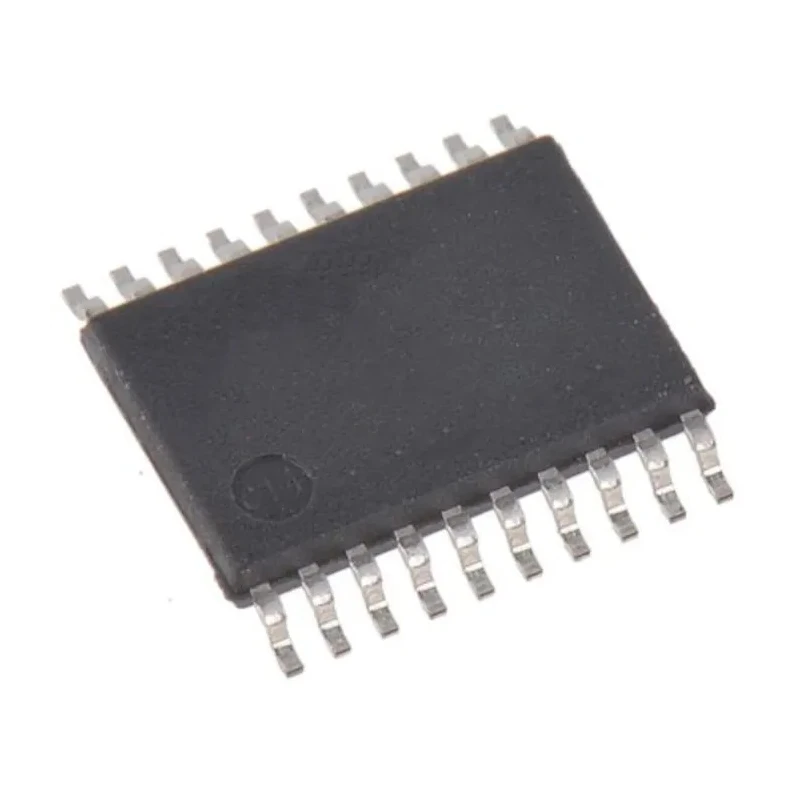

STMicroelectronics 32 bit ARM Cortex M0+ Microcontroller 32 MHz 16kB FLASH 20-Pin TSSOP STM32L010F4P6

STMicroelectronics STM32L010F4P6 is a 32 bit ARM Cortex M0+ microcontroller operating at 32 MHz, designed for ultra-low-power embedded systems requiring dependable performance and efficiency. This microcontroller features 16kB of Flash memory and a 20-pin TSSOP surface-mount package, making it suitable for compact embedded designs.

Operating voltage ranges from 1.8 V up to 3.6 V, with a guaranteed temperature operating range of -40 °C to 85 °C, allowing it to function reliably in a wide spectrum of industrial and commercial environments. The device incorporates a Cortex-M0+ core capable of delivering 0.95 DMIPS per MHz, balancing performance with power consumption.

Memory resources include 16kB Flash, 128kB RAM, and 128 bytes of data EEPROM along with a 20-byte backup register. It provides 7 ADC channels of 12-bit resolution for precise analog signal acquisition, which are essential in sensor interfacing and measurement applications.

The microcontroller includes one timer, supports a RISC instruction set, and integrates multiple clock sources such as a high-speed internal 16 MHz RC oscillator, an external clock of up to 32 MHz, and low-power RC oscillators for RTC functionality. Ultra-low-power modes include standby with 0.23 μA current and stop mode with RTC retention, optimizing battery life in portable devices.

Additional features include ultra-low-power brownout and power-on reset with selectable thresholds, facilitating stable power management in fluctuating power environments. The device supports serial wire debug and has a pre-programmed bootloader to streamline firmware updates.

Focused on applications in industrial automation, power management, IoT devices, and consumer electronics, the STM32L010F4P6 delivers efficient processing with extended battery life. Its compact 20-pin TSSOP form factor and low power consumption make it well-suited for embedded systems demanding dependable and power-efficient microcontroller solutions.

Ultra-low-power 32-bit ARM Cortex M0+ architecture for efficient application execution. Operating voltage from 1.8 to 3.6 volts enabling flexible power supply options. Temperature range -40 °C to 85 °C suitable for industrial environments.

7 12-bit ADC channels for analog interfacing. 16kB Flash, 128kB RAM, and 128 bytes EEPROM for data retention. Multiple clock sources including internal RC oscillators and external clock input. Surface mount 20-pin TSSOP package with compact dimensions 6.6 mm x 4.5 mm.

Low power modes including standby and stop with fast wakeup times. Supported by serial wire debug and pre-programmed bootloader. Suitable for embedded and IoT industrial applications. Discover more Microcontrollers and embedded solutions in the Electronics & Electricals category on EnvMart.
